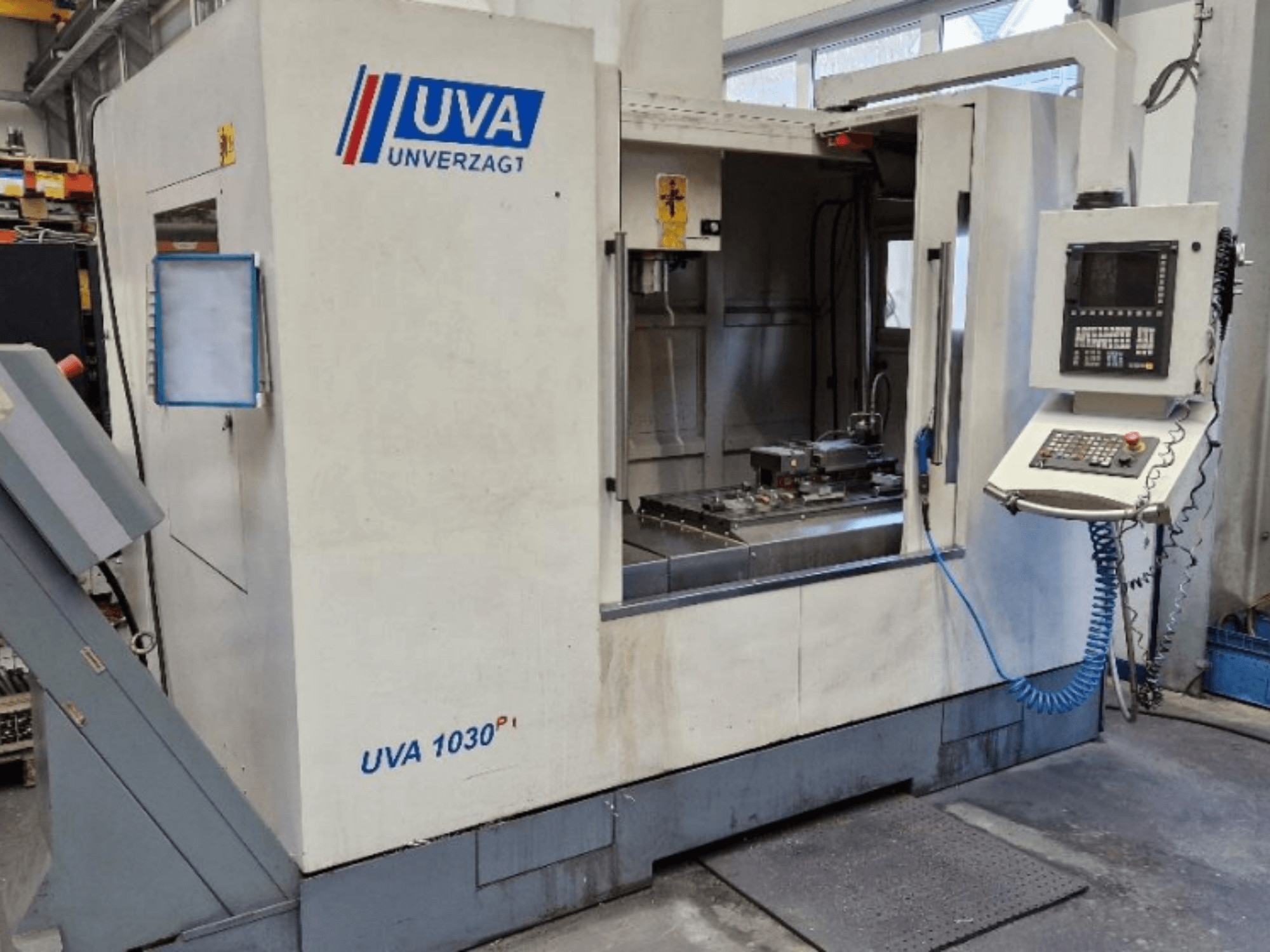

HOMMEL UNVERZAGT - UVA 1030 PLUSDE-MIL-HOM-2011-00001

• Worktable:

  • Table size 1100 × 500 mm

  • T-slots 5 × 18 mm

  • Table to spindle nose 125 – 685 mm

• Feeds / Axes:

  • Rapid traverse 30 m/min

  • Max. feed rate 10,000 mm/min

  • Linear guides: large-dimensioned, roller guide in Z

• Tool magazine:

  • Type disc changer

  • Capacity 20 tools

  • Max. tool diameter 100 mm

  • Max. tool length 200 mm

  • Tool change time approx. 3 s

• Accuracies:

  • Positioning accuracy ±0.005 mm

  • Repeatability ±0.003 mm

• Machine data:

  • Electrical power consumption 25 kVA

  • Compressed air requirement 260 l/min (6 bar)

• Control and machine features:

  • Siemens 828D with ShopMill

  • Electronic handwheel

  • SK40 spindle

  • 20-position tool magazine (disc changer)

  • Telescopic covers on all axes

  • Flood cooling 4 bar / 80 l/min

  • Digital Siemens drives

  • Robust cast iron base

Additional equipment

• Chip conveyor

• Large coolant tank
