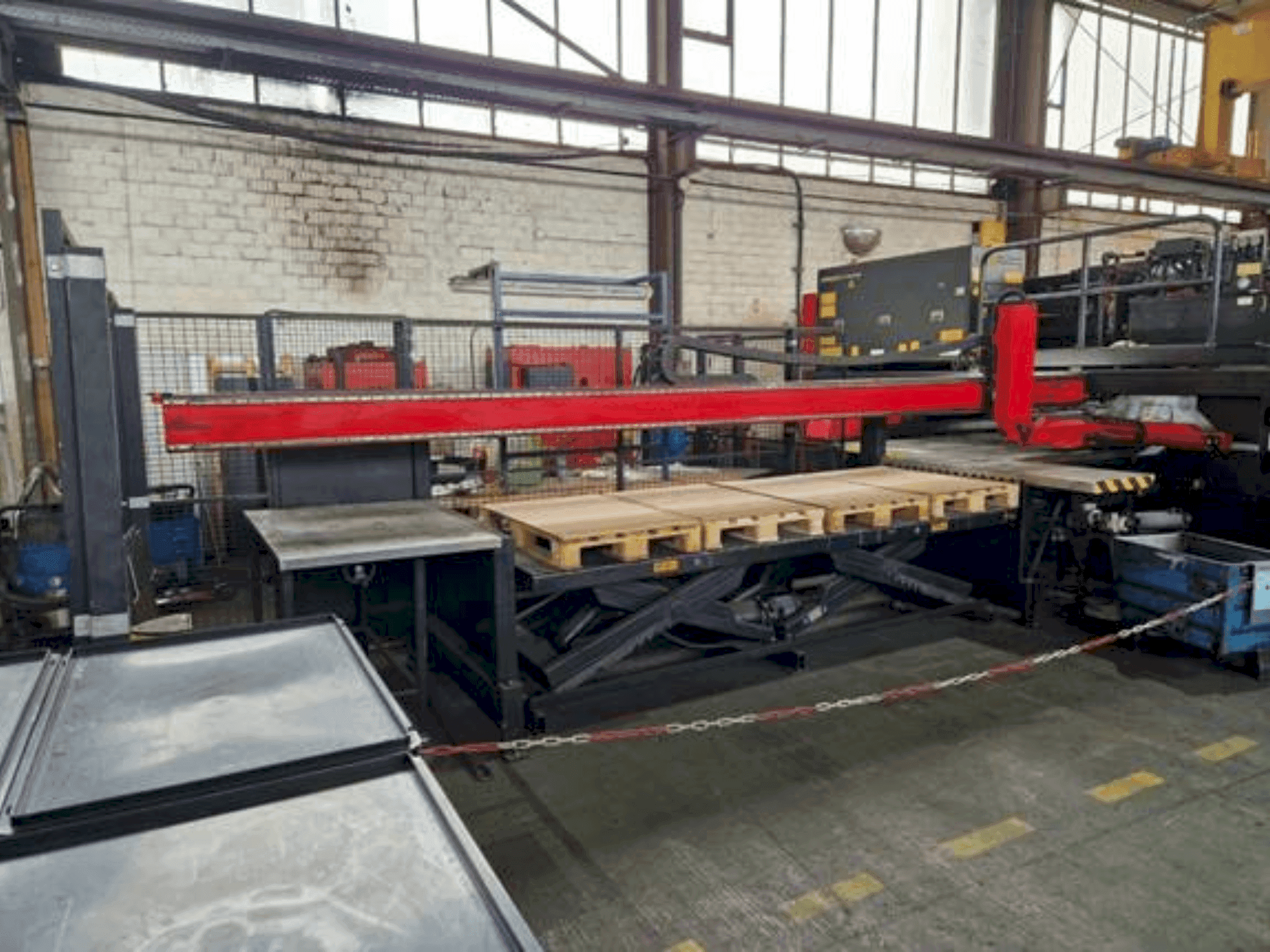

AMADA - AP3-2610 VDE-CUT-AMA-2000-00001

Machine Benefits

Technical Machine Benefits

• The machine is currently out of service due to a defective servo valve on the high-pressure side.
• The laser resonator has approximately 7368 hours of operation according to the hour counter.

Extra Information

Max. sheet dimensions 2500 x 1525/ Max. sheet thickness 6.4 mm/ Max. sheet weight approx. 280/ Machine travel range (X) x (Y) 2500 x 1520 mm/ Laser head travel range (Z) 300 mm/ Max. cutting speed (laser cutting) 15 m/min/ Max. feed rate/ X = 100 m/min/ Y = 80 m/min/ Z = 60 m/min/ T = 35 min-' (rpm)/ C = 60 min-' (rpm)/ Positioning accuracy +- 0.05 mm / 1000 mm/ Positioning repeatability +- 0.01 mm/ Punching accuracy +- 0.1 mm/ Pressing capacity 196 kN/ Press stroke Variable up to 50 mm/ Punching speed 34 (25.4 mm punching)/ Punching speed (8 mm punching) 410/ Turret mount 31 stations/ Auto-indexing device optional/ Air supply 1000 l/min / 250 l/min/ Operating air pressure 8.5 bar / 5 bar/ Electrical connection 200 V (+-10%), 50/60 Hz, 20 kVA, 3 phases/ Width 5077 mm/ Depth 5120 mm/ Height 2825 mm/ Weight 17 tons
