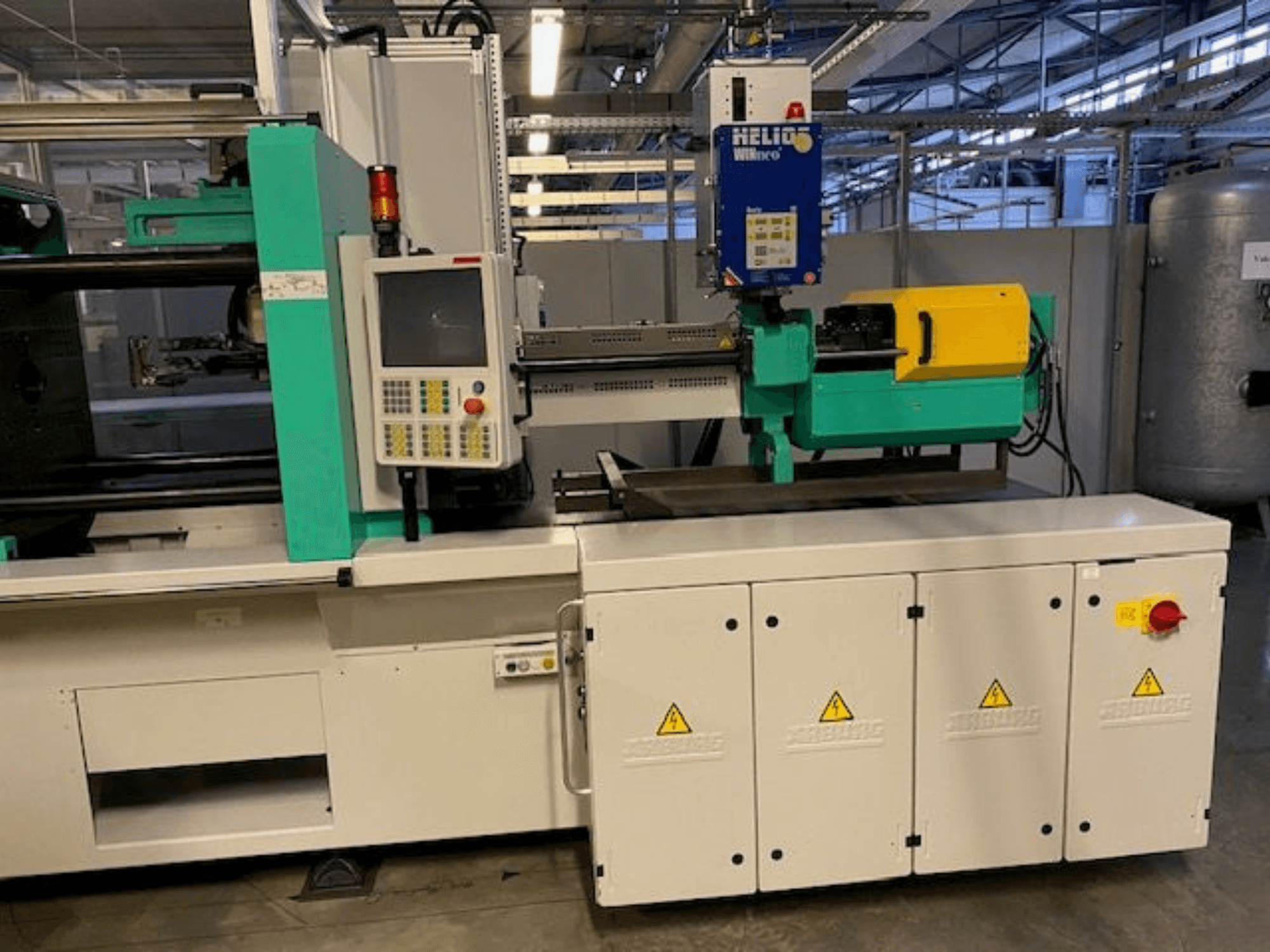

This 3s Arburg 520S-1500-400 was manufactured in 2016. It features a clamping force of 1600 kN, a screw diameter of 45 mm, and a servo-controlled dual-circuit pump system for precise movements. The SELOGICA direct control system with a 15-inch touchscreen enhances usability. Consider the opportunity to buy this Arburg 520S-1500-400 hydraulic injection moulding machine. Contact us for further details.
Resumen
- marca: Arburg
- año: 2016
- MODELO: 520S-1500-400
- horas de producción: 13361
- tipo de aplicación: Moldeo por inyección
- Ubicación: Alemania
- tipo de máquina: Máquina de moldeo por inyección hidráulica
- Marca de unidad de control: ARBURG
Información técnica - Arburg 520S-1500-400
Unidad de Control
- Marca del control: ARBURG
Especificación Técnica
- Fuerza de cierre: 1600 kN
- Diámetro del husillo: 45 mm
Información adicional
Programmable and controlled build-up of clamping force; extended clamping program with 2 stages
Hydraulic, servo-controlled ejector on moving platen
Screw diameter: 45 mm (without nozzle)
High wear-resistant version; sinter-metal check ring; CrN coating on screw and check ring
Suitable for abrasive, corrosive and high-temperature thermoplastics
Technology level 2: servo-controlled, dual-circuit pump system with two regulated hydraulic pumps for precise, parallel movements
Programmable nozzle contact force and holding pressure
Continuous oil circulation with additional cooling and filtration
SELOGICA direct control system with touchscreen process editor
15-inch (38.1 cm) display; multilingual interface (German, English, local language)
Heating capacity zones 1–6: 3.6 kW each (230 V / 16 A)
Cylinder heating temperature up to 450 °C
OPC UA interface (MES/host computer connection)
USB and CompactFlash interfaces for data storage
Pneumatic supply with pressure regulator
Cooling water distribution with adjustable circuits and flow indicators
Electrical: 400 V / 50 Hz, with neutral conductor
Hours: 13,361
Additional equipment
None included as listed
Robot/automation readiness: EUROMAP 67 robot interface; prepared for ARBURG MULTILIFT robot system
