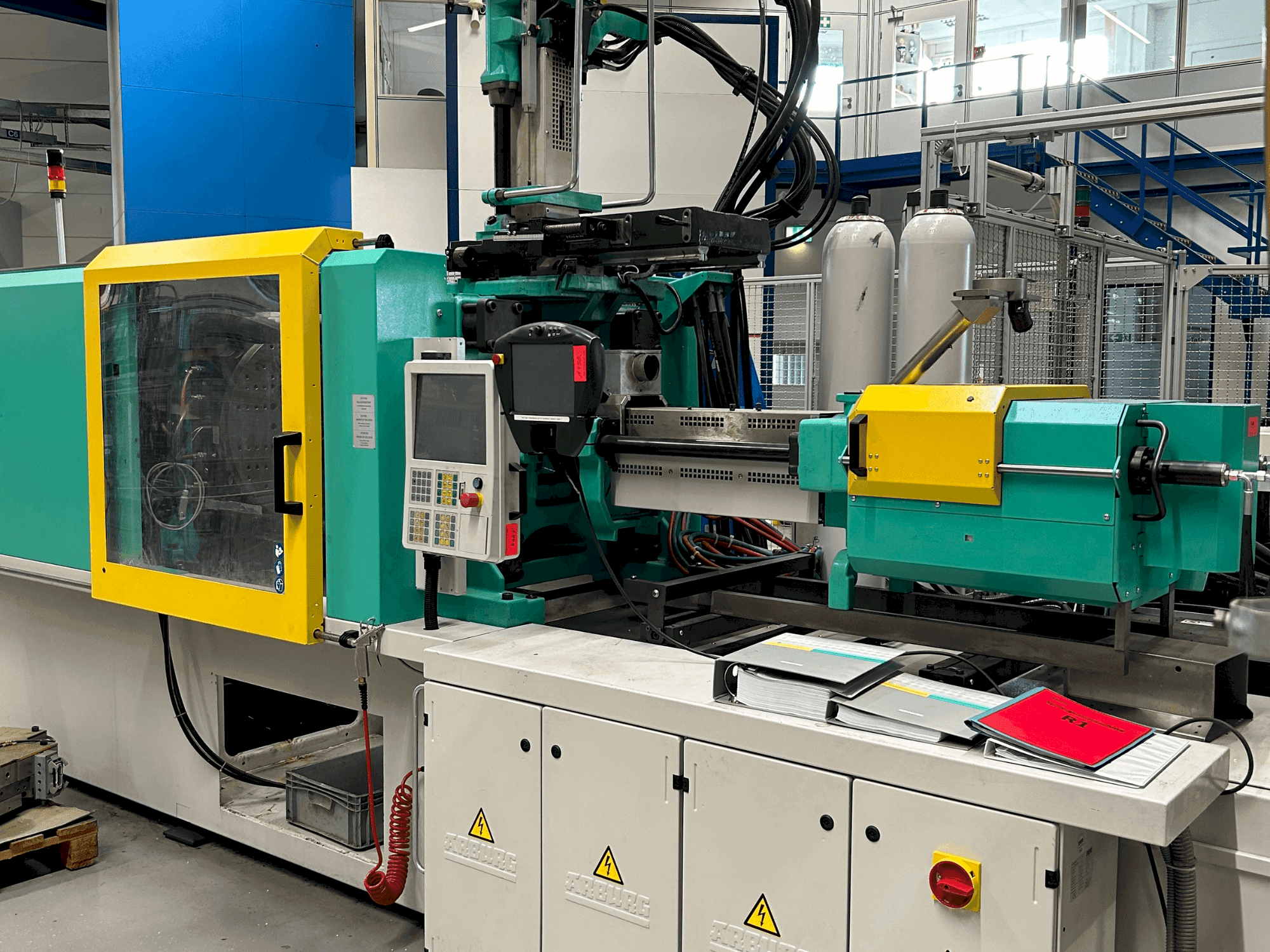

Arburg - 570S 2200-400/170DE-INJ-ARB-2016-00003

Machine Benefits

Technical Machine Benefits

• Modular, multiprocessor graphic selogica control system.
• Enhanced "extended monitoring," "extended motions," "production control," "optimization/operating aids," "quality assurance," and "documentation" packages.
• Drive unit with a 45 kw drive motor and pump combination.
• Pressure accumulator module with a maximum working pressure of 230 bar and a storage volume of 100 liters.
• Continuous oil circulation with an additional pump for increased cooling capacity.
• Hydraulic accumulator technology for high speeds.
• Injection pressure increased by approximately 10% (to a maximum of 2500 bar).
• Position-controlled screw with control valve on the injection unit.
• Safety guard open at the top with injection simultaneously during mold closing.

Extra Information

Clamping Force Clamping force of 2200 kN. Clamping platen set with a central injection position and a centering diameter of 125 mm. Increased minimum tool installation height to 450 mm. Plus kit to enlarge the clamping surface. Machine-specific cooling circuits with programmable control and valve management for enhanced efficiency and precision. Tools Ejector quick-release coupling. Controlled hydraulic ejector on the movable mold plate. Multiple blow-out units with 3/2-way valves. Limit switch connection for core pull control. Media Two additional circuits for tool temperature control. Pneumatic maintenance unit with 2 pressure reducers. Several controlled cooling circuits with heat management capabilities. Extra Information Increased power of heating control circuits to 3.6 kW (230 V), 16 amps per heating circuit. Acoustic fault indication with centralized placement for ease of monitoring.
