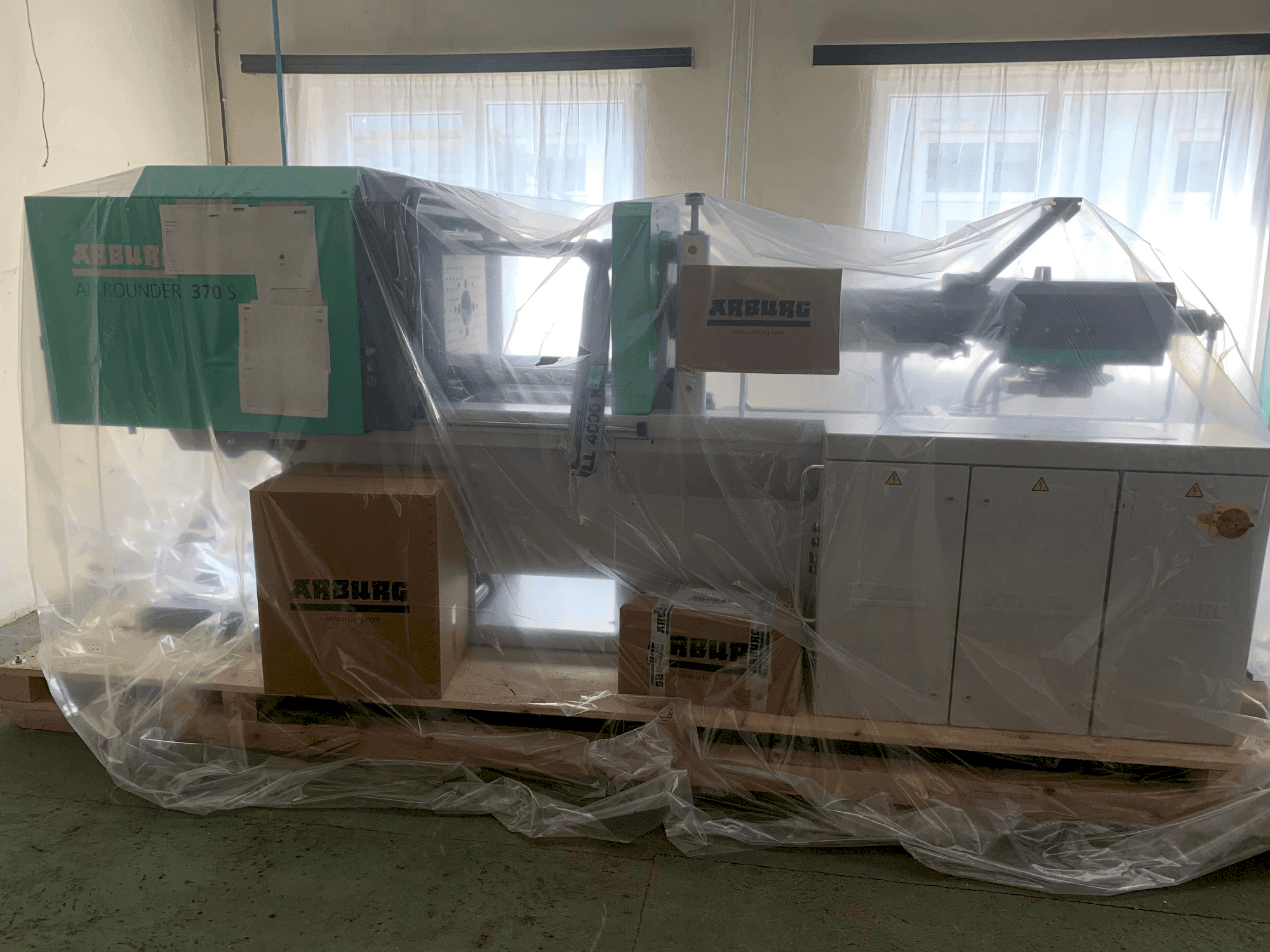

This Arburg 370 S 600-290 U Injection moulding machine was manufactured in the year 2022 in Germany. It is new, never used and still in original packaging. With a clamping force of 600 kN, 290 injection unit and screw diameter of 35mm (armored, highly wear-resistant screw) it is a compact, fully hydraulic clamping system - ideal for reliable and precise reproducibility in injection moulding operations. The closing unit can be tilted from horizontal to vertical. To be considered that machine comes without position control.
Resumen
- marca: Arburg
- año: 2022
- MODELO: ALLROUNDER 370 S 600-290 U
- tipo de aplicación: Moldeo por inyección
- Ubicación: Hungría
- tipo de máquina: Máquina de moldeo por inyección hidráulica
- Marca de unidad de control: ARBURG
Información técnica - Arburg ALLROUNDER 370 S 600-290 U
Unidad de Control
- Marca del control: ARBURG
- Modelo del control: SELOGICA ND
Dimensiones
- Profundidad de la máquina: 1475 mm
- Altura de la máquina: 11920 mm
- Peso de la máquina: 3300 kg
Especificación Técnica
- Fuerza de cierre: 600 kN
- Peso máximo de disparo: 132 g
- Diámetro de tornillo: 35 mm
Información adicional
Machine Benefits
Qualitative Machine Benefits
The machine is new, never used and still in original package
The closing unit can be tilted from horizontal to vertical
Technical Machine Benefits
Central, convertible, swivelling injection unit as complete assembly group
Plasticising unit in modular design, with central coupling and adaptive temperature regulation
Plasticising cylinder in wear resistant execution, injection through fixed mould platen
Compact, fully hydraulic clamping system with 4 individually removable tie bars
Clamping unit without hoses, hydraulics close to the use for precise drive of the axes
All axes of the mould clamping unit are programmable and regulated in their movements
Space-saving, compact design
Mould protection monitoring via ejector platen safety switch (interface)
Intuitive selogica nd control system – data sets are fully compatible with the proven selogica
Hierarchical structure and graphical sequence programming with real-time plausibility check, identical to selogica controller
Extra Information
Equipped with armored, highly wear-resistant d35 mm screw.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
