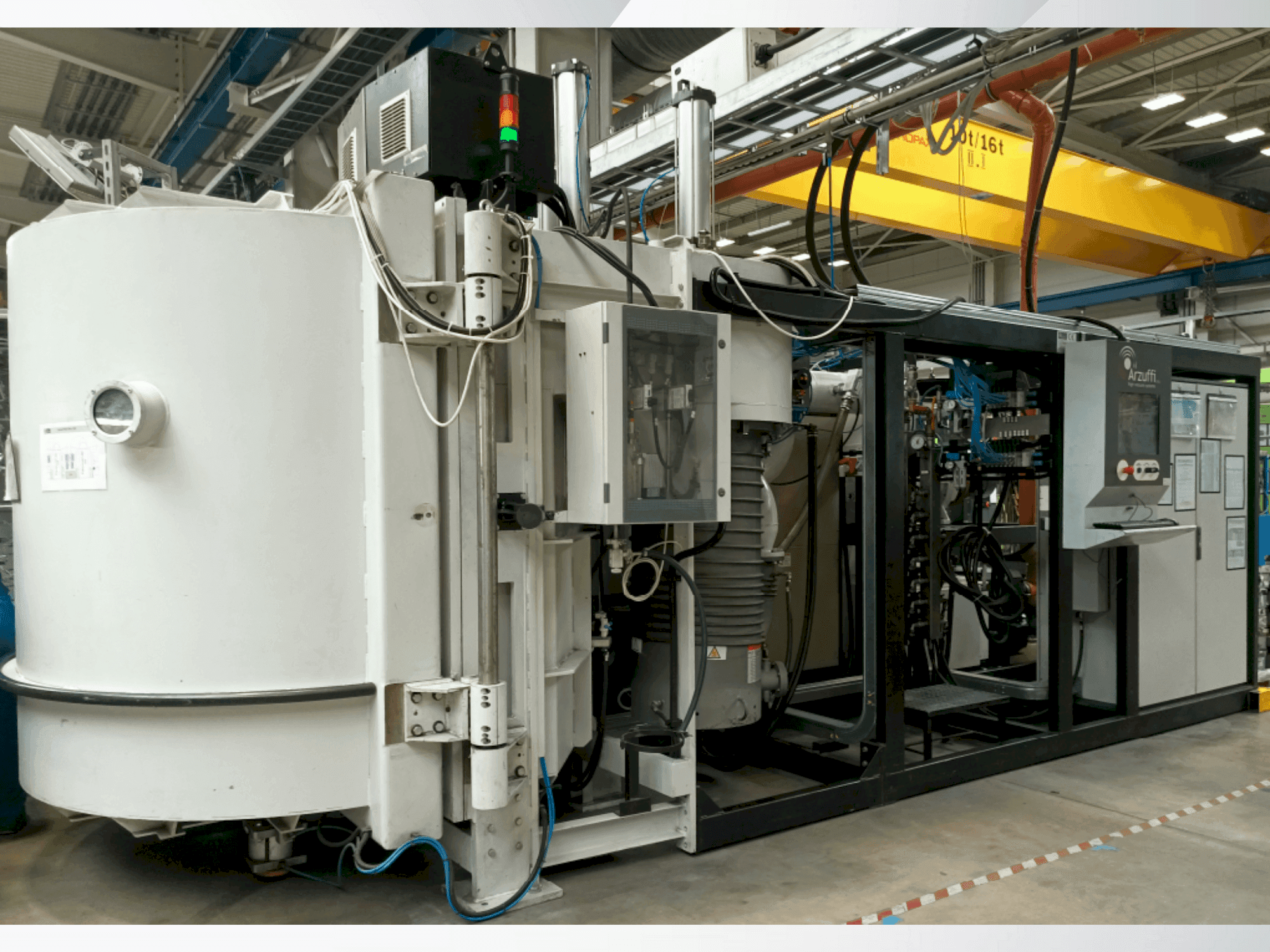

ARZUFFI - AM/KW 1DA2 1900/1800 IC MFCZ-OTH-ARZ-2013-00001

Machine Benefits

Technical Machine Benefits

• High vacuum coating system
• Chamber dimension: diameter 1. 900 mm, height 1. 800mm, chamber volume 5,1 m3
• Electrical drawing: tension 440, volt frequency 50 hz, power 106 kw, max current consumption 108 amp.
• Power distribution: diffusion pump no. 2 12 kw each // rotary pump no. 1 15 kw // roots pump no. 1 11 kw // polycold 1102 pfc no. 1 15,3 kw // motoreducer no. 2 0,75 kw // evaporation transformer no. 1 25 kw // power supply mf no. 1 10 kw // hmdso heating no. 1 0,3 kw each
• Cooling system pressure 2 / 3 bar
• Cooling system capacity 90 - 100 lt/min
• Pneumatic system pressure 6 - 7 bar
• Diameter of fixture 6 - 560 mm / 8 - 460 mm
• Total height of fixture 1600 mm
• Useful height of fixture 1500 mm

Extra Information

Loading system: Inside each door is installed a planetary that allows to charge n. 7 fixtures
