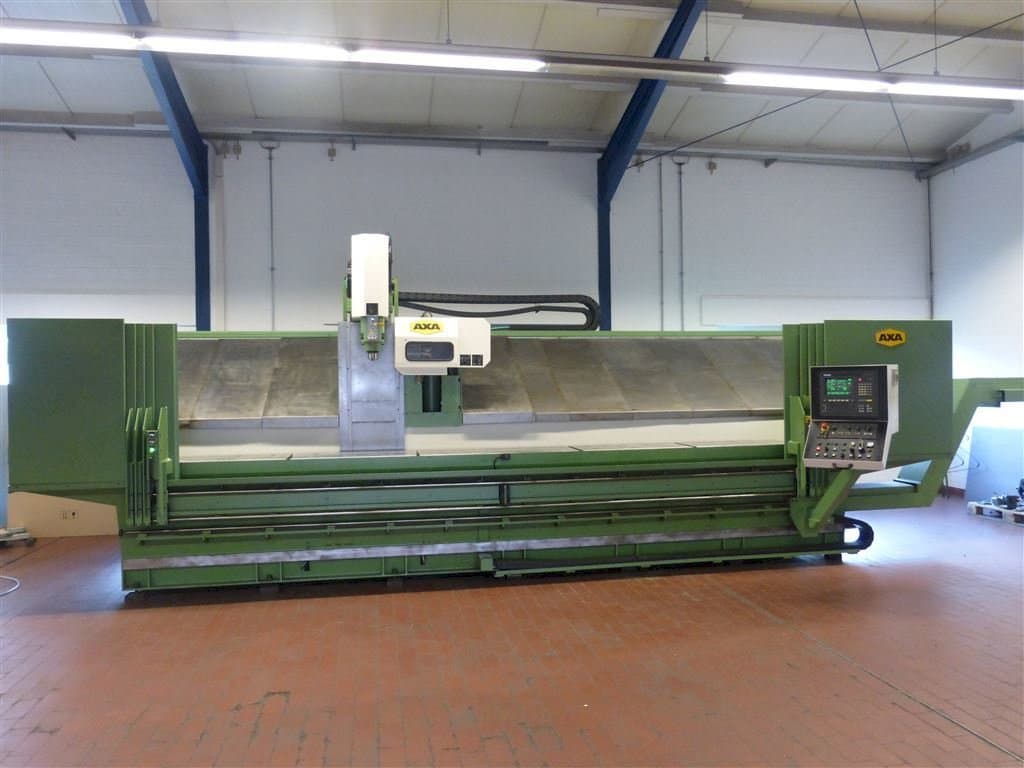

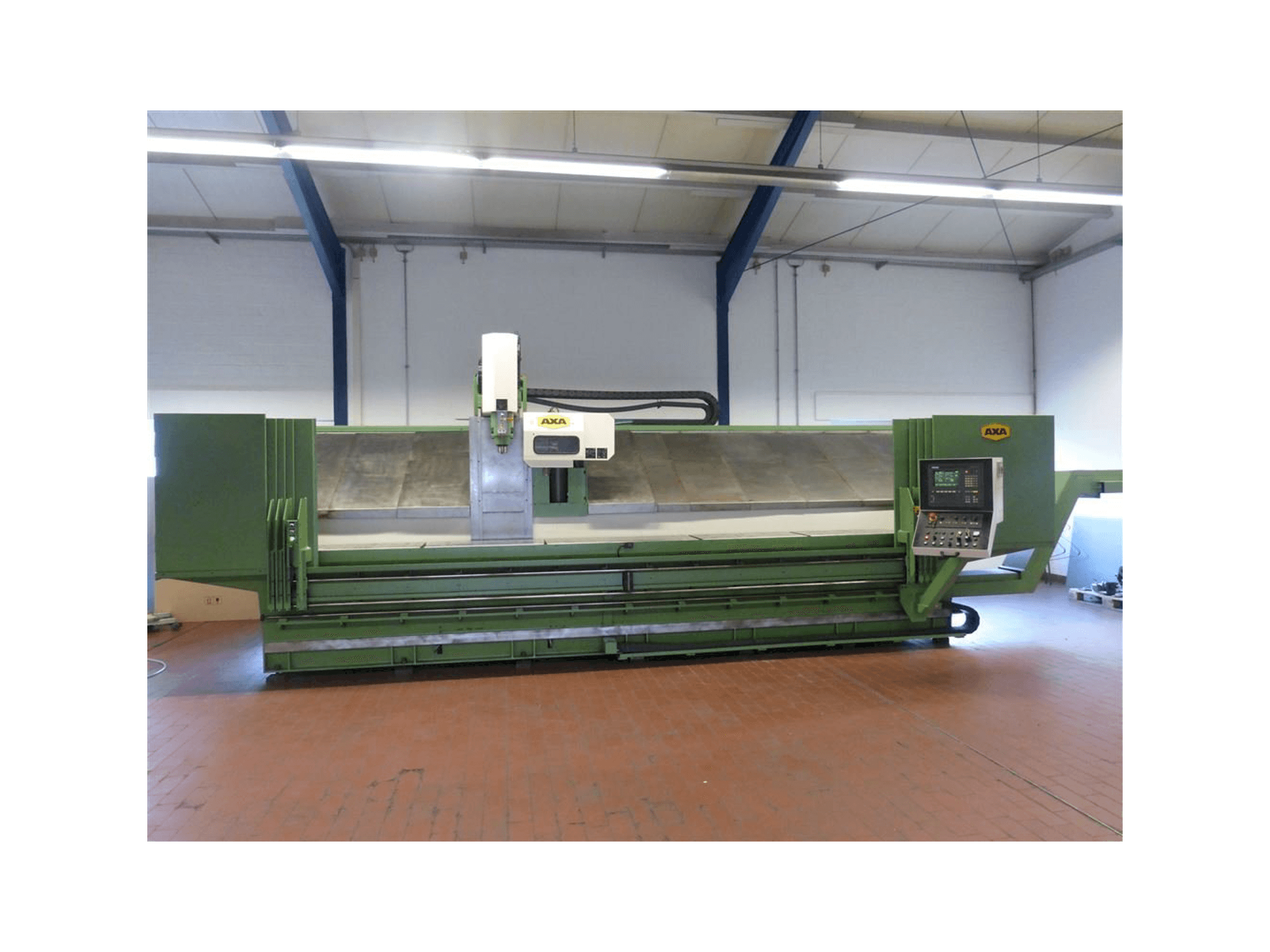

This AXA VSC 1-5000M/E Vertical Machining Center was manufactured in 1998 and overhauled in 2020. It is equipped with a SIEMENS 810 M/GA3 control unit. This 3 axis machine has a spindle speed range 40 - 6000 rpm and a table dimension of 5470 mm x 500 mm. It got a renewal of the emulsion hoses for external cooling and a replacement of the workspace discs and the rubber surrounds between other benefits in its last inspection.
Resumen
- marca: AXA
- año: 1998
- MODELO: VSC 1-5000M/E
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: SIEMENS
Información técnica - AXA VSC 1-5000M/E
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: 810 M/GA3
Dimensiones
- Largo de mesa: 5470 mm
- Ancho de mesa: 500 mm
Recorrido
- Número de ejes: 3
- Recorrido eje X: 5000 mm
- Recorrido eje Y: 420 mm
- Recorrido eje Z: 480 mm
Especificación Técnica
- Velocidad del husillo: 6000 RPM
- Tamaño del cono: SK 40
Información adicional
Machine Benefits
Qualitative Machine Benefits
- Cleaning of the machine
- Partial painting of the machine parts
- Renewal of the emulsion hoses for external cooling
- Replacement of the workspace discs and the rubber surrounds
- Surface grinding of the machine tables and readjustment according to the alignment groove
- General overhaul of the slide linings of the cross slide of the x-axis
- New bearing of the main spindle in the axa factory
- Replacement of other defective mechanical parts with original or identical parts
- Checking of the electrical cables for damage and cable breakage and
- New measuring system cables in the x-axis and to the main spindle
Technical Machine Benefits
- New bearing of the main spindle
- Pendulum stroke: 2 x 2300 mm
- In pendulum operation with pendulum stroke in the x-axis, protection is provided by a safety circuit for side detection
- Siemens three-phase motor with spindle blow-out device during tool change
- Chain magazine moving in the x-axis
- Measuring system in x/y/z: direct linear; heidenhain glass scales in x, y, z axes protected in aluminium housing
- X / y basic slide, z column and slide as well as the are made of high-quality machine cast iron
- Hinged belt chip conveyor - discharge right - 300mm feed width, discharge height approx. 1250 mm
- Checking of the emergency stop and safety door safety functions (if necessary, the delivery state is (if necessary, the delivery condition is restored)
- Replacement of defective switches
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
