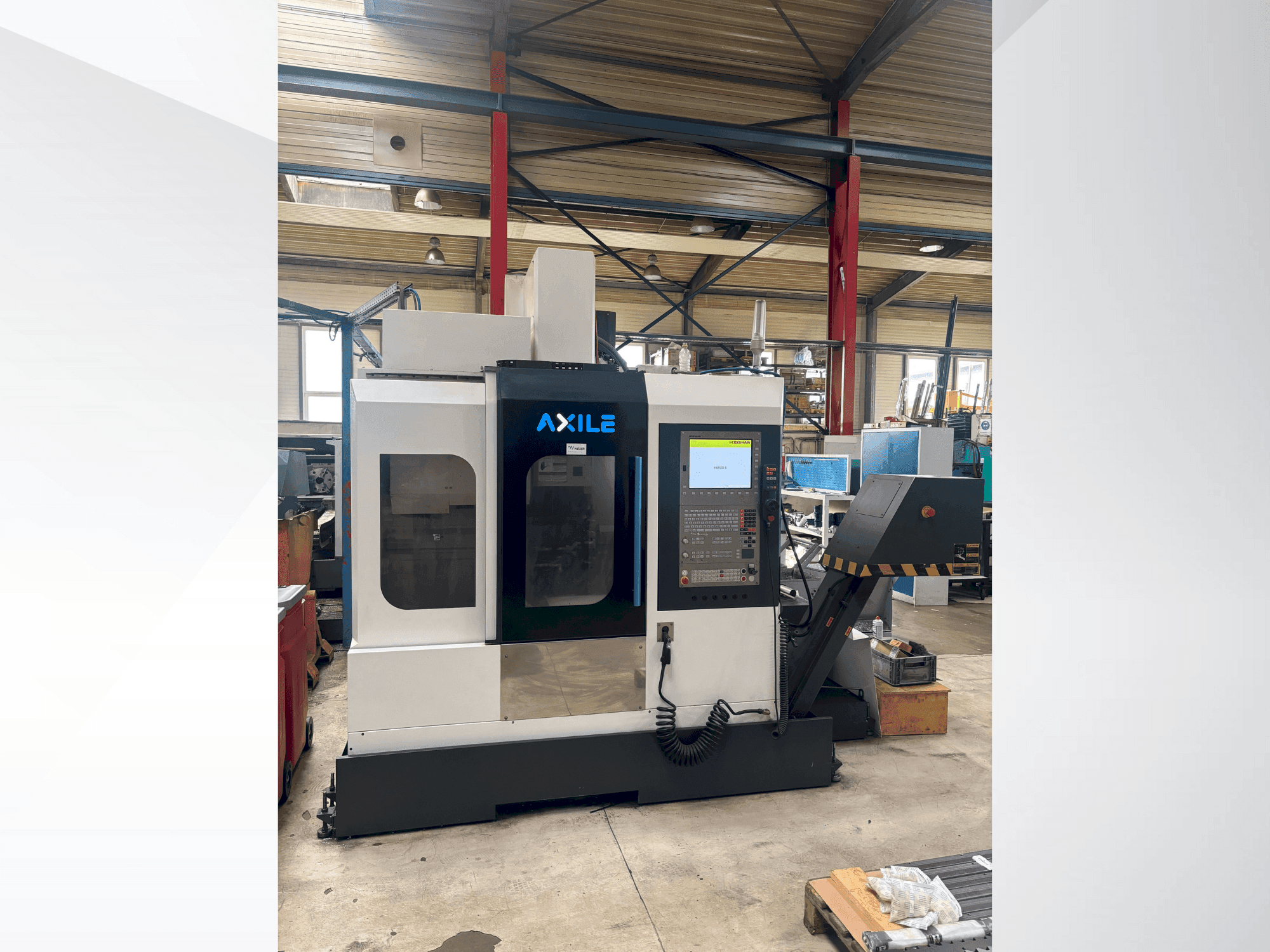

AXILE - V4AT-MIL-AXI-2019-00001

Additional equipment

• T-slots: 16 × 100 mm (4 pieces)
• Speed: Standard: 12000 rpm /Optional: 18000 rpm or 24000 rpm
• Motor power: Heidenhain: 10/12.5 kW /Siemens: 10.5/15.8 kW /Fanuc: 11/15 kW/ Optional: 20 kW
• Axial Accuracy Control (AAC) / Spindle Vibration Supervision (SVS) / Tool-tip Positioning Control (TPC)
• Standard: 30 or 32 tools/ Optional: 40 tools
• Tool holder: BT / CAT / DIN 40 / HSK 63 /Change time (tool-to-tool): 1.55 s (50 Hz) / 1.31 s (60 Hz)
• Max. Tool dimensions: Diameter: Ø75 mm (Ø125 mm with empty neighboring compartment) / Length: 300 mm /Weight: 7 kg
• Tool changer (ATC) Type: Arm change
• ISO40 in-line spindle (12000 rpm, with CTS function) / Spindle oil cooler / Arm tool changer (30/32 tools)
• Coolant tank (20 bar) / Scraper chip conveyor / Linear encoder for all 3 axes / Backwash device / Flushing gun / Heat exchanger / 4th axis prepared (switching circuit)

Machine Benefits

Technical Machine Benefits

• Table: size: 770 × 410 mm / height: 820 mm / max. Load: 400 kg
• Accuracy: repeat accuracy (x/y/z): ±0. 01 mm / positioning accuracy: 0. 01 mm over 300 mm / feed speed (rapid traverse): 36 m/min (x/y/z)
• Guide rails: linear guideways (35 mm ball) x: 300 mm distance/ y: 620 mm /distance z: 400 mm/ distance
• Axis drive: recirculating ball screws: Ø32 × p12 × c3 (for x, y, z)
• Max. Load weight: 160 kg (standard) / 200 kg (optional)
• Floor area: 3195 × 1910 mm
• Spindle center to z-axis guard: 475 mm/spindle nose to table: 100-550 mm
