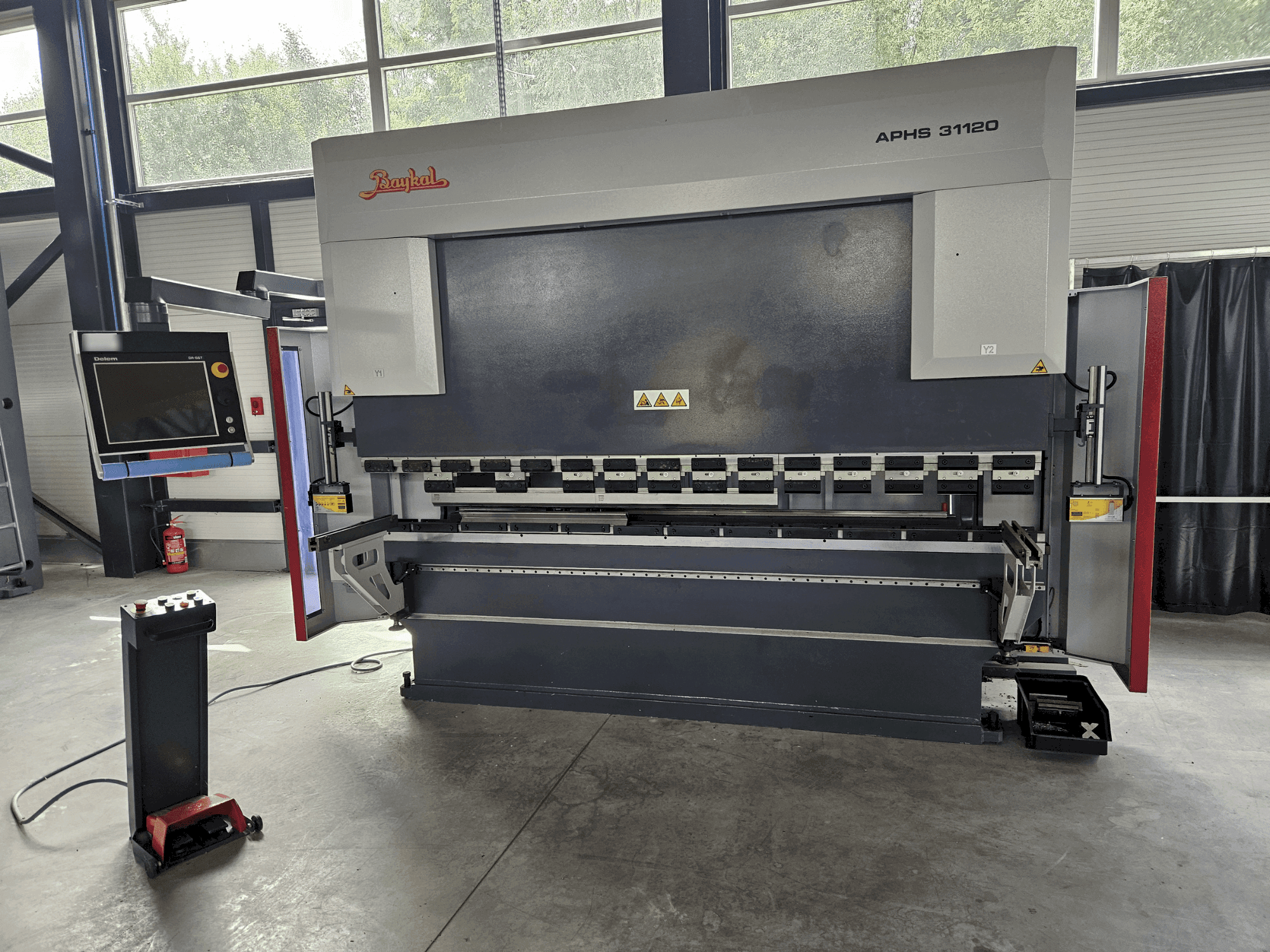

Baykal - APHS 31120PL-BEN-BAY-2020-00001

Additional equipment

• AC brushless servo driven backgauge with ballscrews
• Proportional valve hydraulics: Rexroth or Hoerbiger
• Precision linear scale measurement: Heidenhain or Givi Misure
• European clamping system with 85° sectioned punch and 4-V die
• Double footswitch console
• Electrically interlocked side guards

Machine Benefits

Technical Machine Benefits

• System pressure: 280 bar
• 4-axis press brake (y1, y2, x, r)
• Distance between frames: 2550 mm
• Throat gap: 410 mm
• Max. Stroke adjustment: 260 mm
• Backgauge x range: 1000 mm (x and x-r types)
• Backgauge fingers: 2 pcs
• Cnc crowning wedges on bottom table
• Tooling is included in the offer
• Excellent condition, almost like new

Extra Information

Movement Approach Speed: 160 mm/s Working Speed: 10 mm/s Return Speed: 130 mm/s Table Width: 60 mm Voltage: 400 V / 50 Hz / 3 Ph Delem 66t color graphical Windows CNC control unit
