Baykal - BLE PRO 1530HU-CUT-BAY-2022-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas para chapa
- ➤ Used Baykal BLE PRO 1530 For Sale | gindumac.com

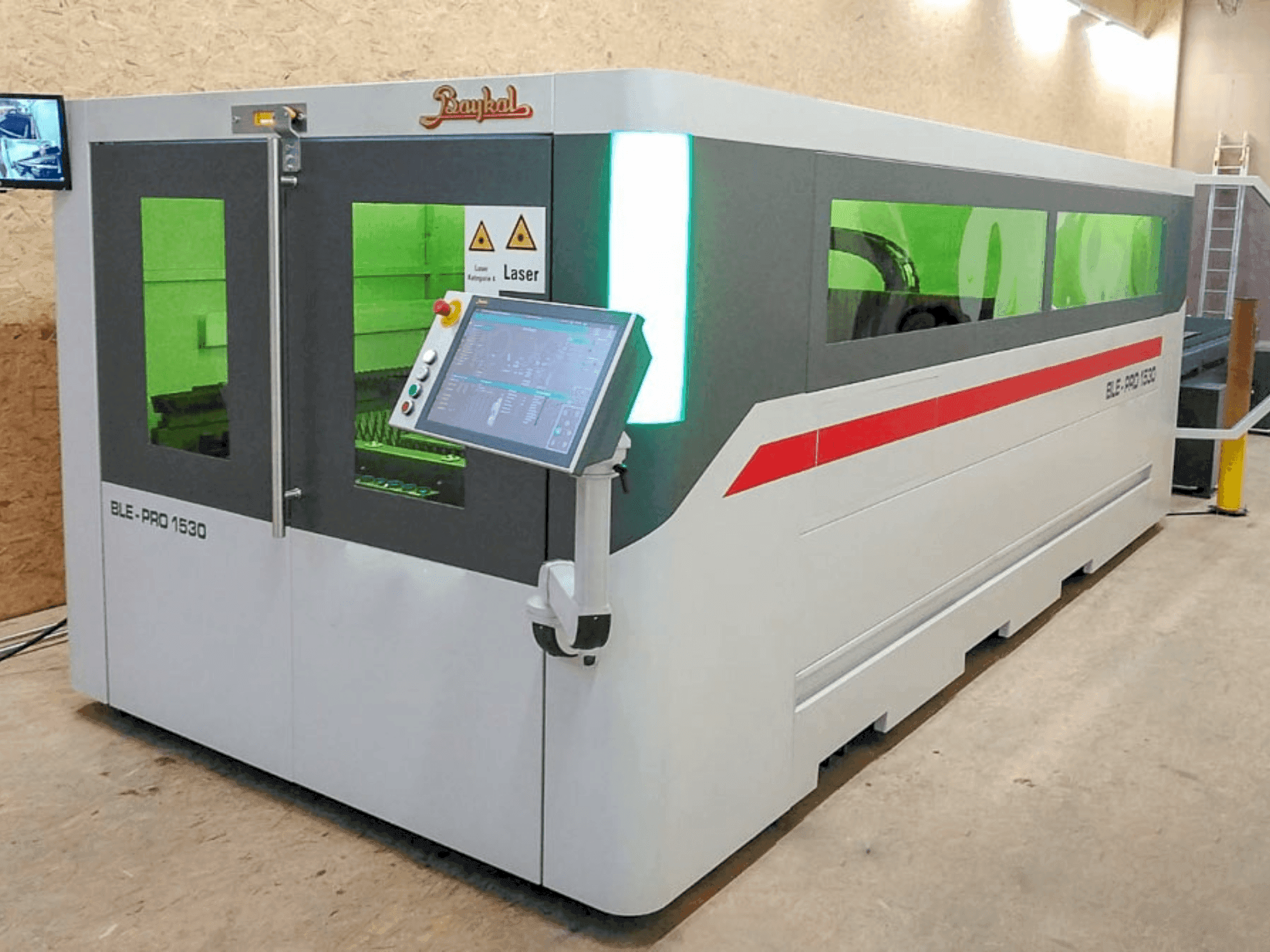

This 3-axis Baykal BLE PRO 1530 was manufactured in 2022. It features a 4kW nLIGHT alta fiber laser source, Precitec cutting heads, and a BECKHOFF CNC control unit. The machine offers a maximum cutting width of 1500 mm and length of 3000 mm, with rapid traverse speeds up to 95 m/sec. Ideal for precision cutting, the Baykal BLE PRO 1530 fiber laser cutting machine we have for sale is equipped with dual circuit water cooling and an air-conditioned electrical cabinet. Contact us for more information.
Resumen
- marca: Baykal
- año: 2022
- MODELO: BLE PRO 1530
- tipo de aplicación: Corte
- Ubicación: Hungría
- tipo de máquina: Máquina de corte láser de fibra
- Marca de unidad de control: BECKHOFF
Información técnica - Baykal BLE PRO 1530
Unidad de Control
- Marca del control: BECKHOFF
Dimensiones
- Profundidad de la máquina: 3000 mm
Recorrido
- Número de ejes: 3
Especificación Técnica
- Potencia del láser: 4 kW
Información adicional
Additional equipment
- Precitec cutting heads
- nLIGHT alta fiber laser source
- Autofocus cutting head Precitec ProCutter 2.0
- Built-in sectional dust and smoke extraction 4000 m3/h
- 2 camera surveillance system
- UPS uninterruptible power source
- Nesting software: Lantek Expert Cut II/ Metalix Autonest Pro (option)
Machine Benefits
Technical Machine Benefits
- X-axis: related to max. Cutting width 1500 mm // y-axis: related to max. Cutting length 3000 mm
- Cnc controller: beckhoff, with 18. 5" monitor
- Servo drive: beckhoff
- Rack and pinion drive: wittenstein
- Max cutting width: 1500 mm // max cutting length: 3000 mm
- Drive (x, y axis): servo motor, rack, and pinion // drive (z axis): ball screw
- Vector speed: 135 m/sec (2060s)
- Axial acceleration: 1. 5 g (15 m/s²) (2060s)
- Programmable feed speed (max): 50 m/sec
- Absolute positioning accuracy: ± 0. 03 mm
Extra Information
Repeatability (X and Y axis): ± 0.05 mm Type of Beam Transport: Fiber optic Automatic Nozzle Cleaning and Calibration: Yes Dual Circuit Water Cooling System: Yes Air-Conditioned Electrical Cabinet: Yes Lens Protector: Yes Waste Collection Trays: Yes Load Capacity of the Pallet Changing System: 1250 kg/pallet Autofocus Cutting Head: Precitec ProCutter 2.0 Dust and Smoke Extraction System: PL4000 built-in sectional, 4000 m³/h Laser Source (Resonator): 4kW nLIGHT alta Camera Surveillance System: 2 cameras UPS (Uninterruptible Power Source): Yes Nesting Software: Lantek Expert Cut II
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
