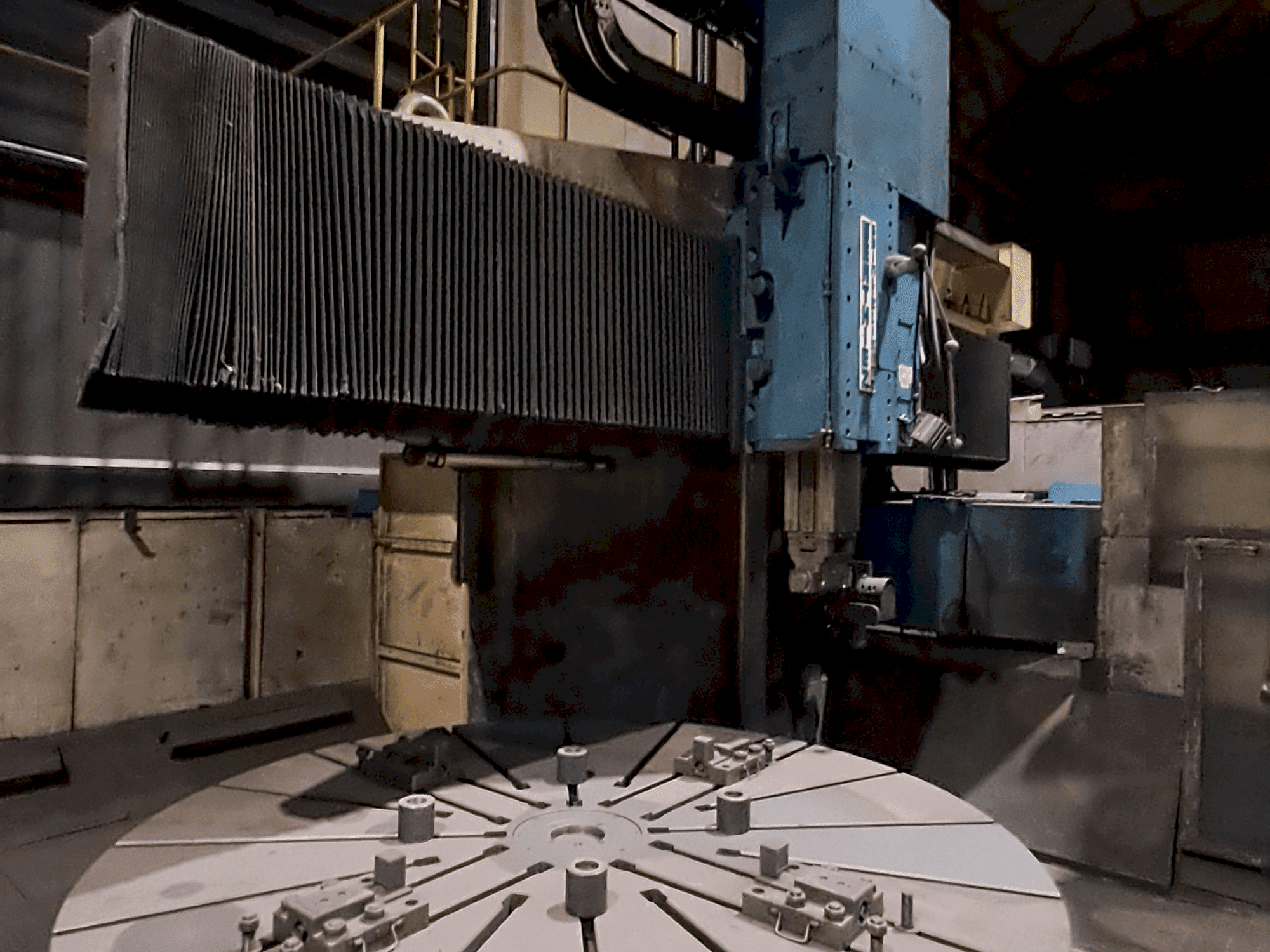

This Berthiez TMM 200 was manufactured in 1980. A robust vertical turning machine featuring a plate diameter of 2500 mm and a maximum turning diameter of 5500 mm. It supports a maximum load of 100 tons on the plate, with a plate motor power of 70 Kw. Ideal for handling large and heavy workpieces. Contact us for more information about this machine.
Resumen
- marca: Berthiez
- año: 1980
- MODELO: TMM 200
- tipo de aplicación: Torneado
- Ubicación: Francia
- tipo de máquina: Máquina de torneado vertical
Información adicional
Machine Benefits
Technical Machine Benefits
- Arm stroke: 1800 mm approx.
- Seat stroke: 1300 mm
- Continuous range of plate speeds: 1. 25 to 125 rpm
- Maximum load allowed on the plate: 100 t
- Gearbox weight: 1360 kg
Extra Information
Tool Holder on Arm RAM Section: 224 x 224 mm Sliding Stroke: 1500 mm Horizontal Stroke of the Carriage: 3370 mm Continuous Range of Feeds: 0.05 to 25 mm/rev Positioning Speed: 1 to 6000 mm/min Seat Movement Speed: 2400 mm/min Positioning Speed: 5.7 mm/min Arm Movement Speed: 400 mm/min Positioning Speed: 1.6 mm/min Dimensions of Machine (LxWxH) Crosspiece: 8000 x 5400 x 1400 mm Amount: 5400 x 1700 x 1500 mm Support Plateau: 8000 x 5400 x 1200 mm False Chainring Diameter: Ø 5000 mm Weight (kg) Crosspiece Weight: 15000 kg Amount Weight: 25000 kg Support Plateau Weight: 15000 kg False Chainring Weight: 4000 kg
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
