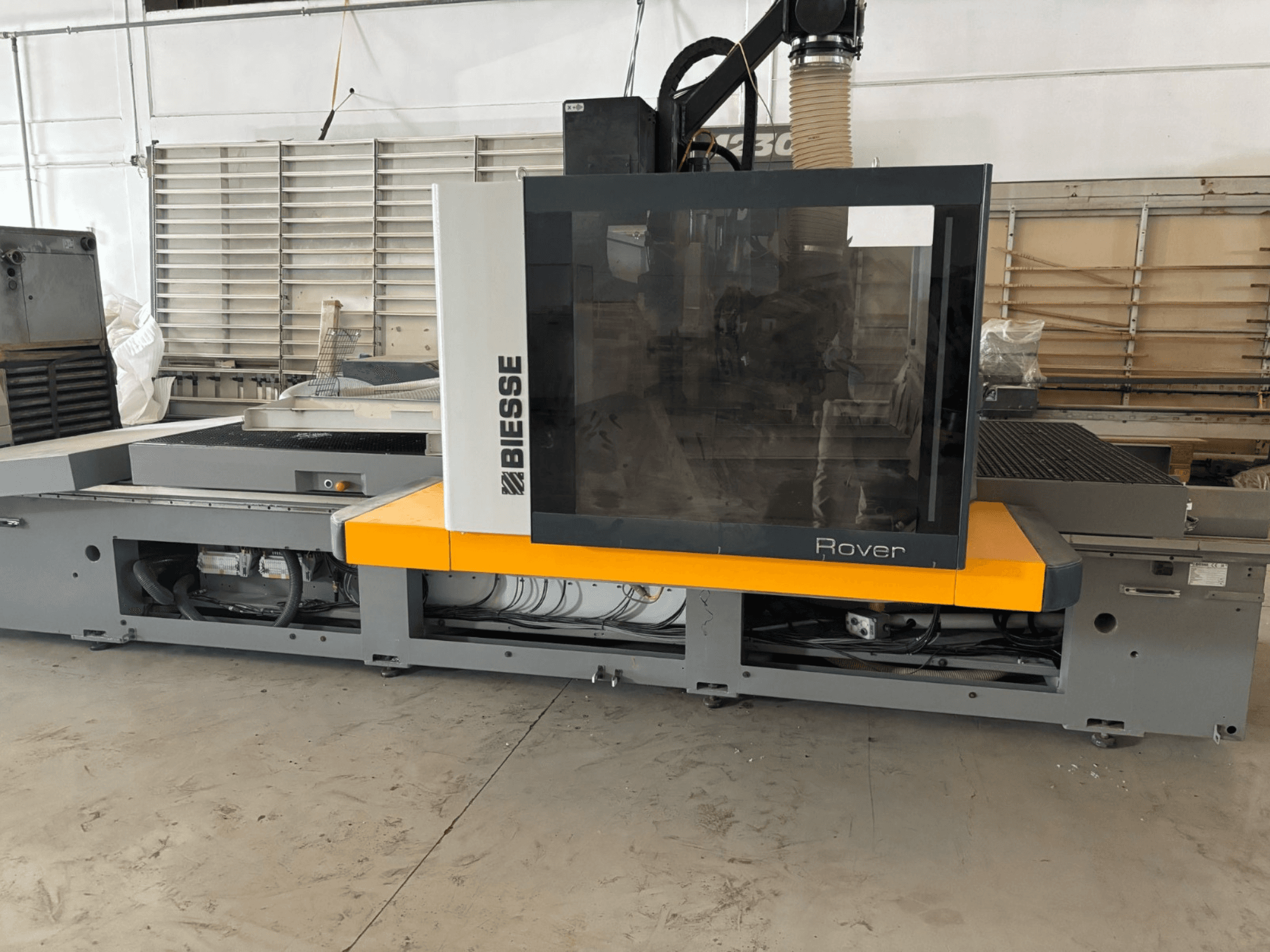

This 5-axis BIESSE Rover PLAST A FT 1536 was manufactured in 2020, featuring a robust electro-welded base and high-precision movement systems. It boasts a main electrospindle power of 13.2 kW, a programmable rotation speed up to 24,000 RPM, and an 8-position revolver tool magazine. Ideal for intricate woodworking, it includes a 21.5" LCD monitor and Industry 4.0 integration. Consider the opportunity to buy this BIESSE Rover PLAST A FT 1536 CNC Wood Machining Centre. Contact us for more information.
Resumen
- marca: BIESSE
- año: 2020
- MODELO: Rover PLAST A FT 1536
- tipo de aplicación: Mecanizado CNC
- Ubicación: España
- tipo de máquina: Centro de mecanizado CNC para madera
Información técnica - BIESSE Rover PLAST A FT 1536
Recorrido
- Número de ejes: 3
- Recorrido eje X: 3765 mm
- Recorrido eje Y: 1560 mm
- Recorrido eje Z: 378 mm
Especificación Técnica
- Potencia del husillo: 13.2 kW
- Velocidad del husillo: 24000 RPM
Información adicional
Maximum piece clearance: 170 mm
Axis speeds: X 85 m/min, Y 60 m/min, Z 20 m/min
Base: Electro-welded closed-circuit structure with high-thickness steel plates
Axis drives: X with two independent brushless motors and helical rack & pinion; Z with preloaded ballscrew, ISO5 precision
Work table: Phenolic laminate with 30 mm grid vacuum system; vacuum steps every 150 mm; M8 threaded inserts for templates/fixtures
Main electrospindle: 13.2 kW (17.7 HP), HSK F63, air-cooled, 1,000–24,000 rpm
Tool magazine: 8-position revolver on Y-carriage; max tool diameter 110 mm; max tool weight 7.5 kg (32 kg total magazine)
Tool measurement: Digital presetter for tool length measurement up to 130 mm diameter
Control system: BH660 PC-based with Windows Real Time (WRT); CPU Intel Core i5 or better; 8 GB RAM; 128 GB SSD or better; 21.5" LCD monitor
Power supply: 380/400/415 V, 50/60 Hz
Automatic lubrication system for moving parts
Software: bSolid 3D CAD-CAM for design, simulation, and process management
Connectivity: Industry 4.0 integration via TCP/IP and OPC-UA
Additional equipment
Vacuum pump: 250 m³/h, dry-running
Air conditioner for the electrical cabinet
Safety guarding: 2 m high protection nets and front vertical photocells
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
