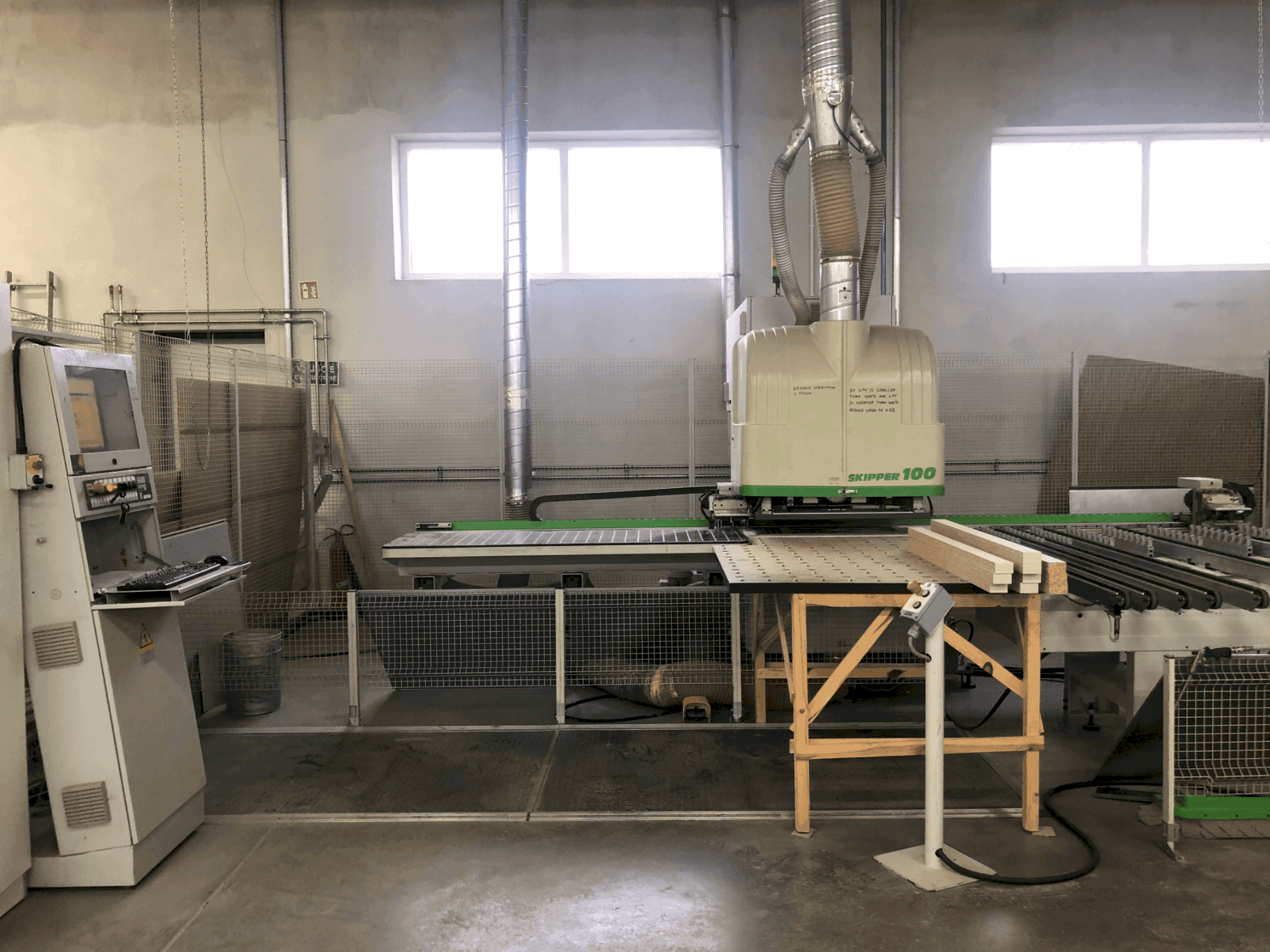

BIESSE - SKIPPER 100PL-CNC-BIE-2009-00001

Additional equipment

• Roller infeed table
• Upper pressure table
• Lower pressure table
• Upper and lower working units
• Belt outfeed conveyor (right side)
• Electronic thickness control
• Automatic central lubrication
• CNC control system: XP 600 with Soft CN
• Safety system

Machine Benefits

Qualitative Machine Benefits

• Condition: well maintained and regularly serviced

Technical Machine Benefits

• Electrospindle type: hsk
• Injection unit power: 3. 5 kw
• Workpiece length: 90–3000 mm
• Workpiece width: 70–1000 mm
• Workpiece thickness: 8–60 mm

Extra Information

Dimensions of Machine (LxWxH) Working Range X Axis: Vertical Drilling: 0–3000 mm Horizontal Drilling in X and Y: 0–3000 mm Continuous Milling: 0–2500 mm Partial Milling: 0–3000 mm Continuous Grooving with Saw: 0–2500 mm Partial Grooving with Saw: 0–3000 mm Working Range Y Axis: Vertical Drilling: 0–1000 mm Vertical Drilling with System 32: 32–1000 mm Horizontal Drilling in X: 0–1000 mm Horizontal Drilling in Y: 90–1000 mm Milling: 0–950 mm Grooving with Saw: 112–1000 mm Working Range Z Axis: Material Thickness: 0–60 mm Tools Total Spindles: 78 Top Unit: 39 Bottom Unit: 39 Vertical Spindles: Total: 29 In X Direction: 19 In Y Direction: 10 Horizontal Spindles in X: Double Output: 4 Independent Horizontal Spindles: In X Direction: 2 In Y Direction: 2
