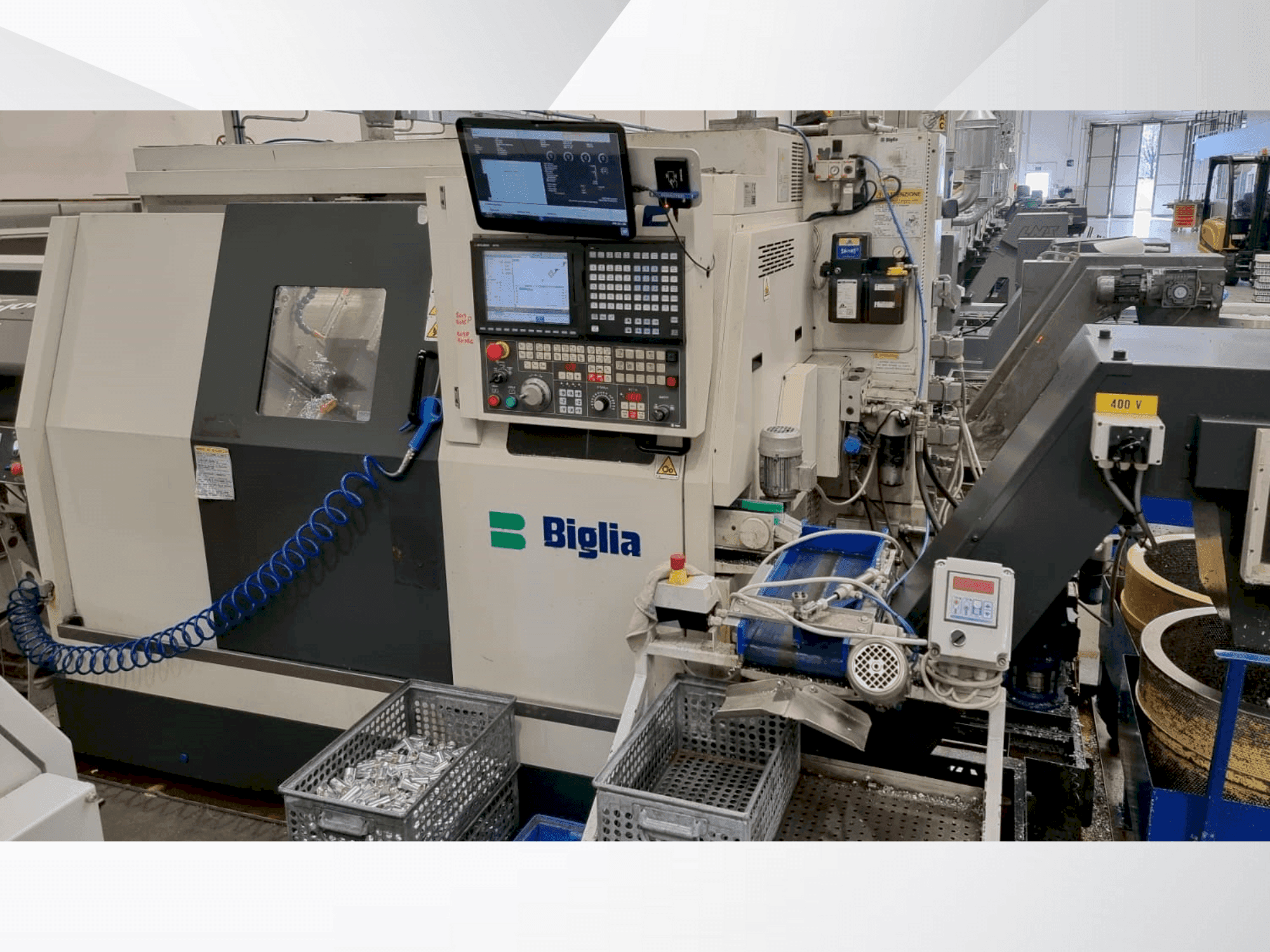

Biglia - B436 Y2IT-TUR-BIG-2017-00001

Additional equipment

• Tool carrier / Revolver 1 with 8 tool places / Tool system cylindrical shank 25 x 48 mm / Turret 2 with 6 tool positions.
• Chip conveyor:Discharge height 650 mm / Hydraulic system:Delivery rate 19 l/min. / System pressure 90 bar.
• Filling volume 50 litres / Coolant system:Flow rate 40 l/min / System pressure 4 bar / Filling volume 210 litres.
• Material feed device:Rod diameter max 52 mm.
• Feed stroke max. 80 mm / Feed force 3000 N / Ejection device for synchronised spindle:Ejection stroke 40 mm.
• Hydraulic ejection and flushing device:Ejection stroke 40 mm / Back-boring device:Max. 5 stationary tools.
• Max. 3 stationary and 2 driven tools / Speed 6000 min-1. / Torque 8 Nm / Tool mounting hole 25 mm.

Machine Benefits

Technical Machine Benefits

• X-axis: 85 mm (x₁ axis), 85 mm (x₂ axis), 170 mm (x₃ axis) / y-axis: 50 mm (+25/-25) (y₁ axis), 50 mm (+25/-25) (y₂ axis) / z-axis: 300 mm (z₁ axis), 300 mm (z₂ axis), 340 mm (z₃ axis).
• Hydraulic system:tank capacity: 25 liters / motor power: 2. 2 kw / maximum pressure: 40 bar.
• Lubrication system:tank capacity: 3 liters / the machine is ce certified.
• Motorized turret transmission:tool spindle motor power: 2. 2 kw.
• Maximum torque: 22 nm.
• Boring bar diameter: 20 mm.
• Turrets:tool post compatible with tool holders type: biglia. / tool shank dimensions: 16x16 mm. / boring bar diameter: 20 mm.

Extra Information

Power: 40 kW, 70 A. Control Panel: BIGLIA. Power Supply: 400V 50Hz. Working range: Maximum bar turning diameter: 36 mm. Bar passage tube diameter: 37.5 mm. Main Spindle: Maximum speed: 7000 rpm. Spindle nose flange type: 115 mm. Spindle hole: 46 mm. Inner diameter of the three front bearings: 75 mm. Spindle motor power: 11 kW. Continuous spindle motor power: 7.5 kW. Constant power from: 1700 rpm. Maximum torque: 62 Nm. Push section of collet chuck closing cylinder: 75 cm². Stroke of collet chuck closing cylinder: 26 mm. Adjustable closing force from 5 to 30 Bar. Maximum clamping force: 2250 daN. Counter Spindle: Maximum speed: 7000 rpm. Spindle nose flange type: 115 mm. Spindle hole: 46 mm. Inner diameter of the three front bearings: 75 mm. Spindle motor power: 11 kW. Continuous spindle motor power: 7.5 kW. Constant power from: 1700 rpm. Maximum torque: 62 Nm. Push section of collet chuck closing cylinder: 75 cm². Stroke of collet chuck closing cylinder: 26 mm. Adjustable closing force from 5 to 30 Bar. Maximum clamping force: 2250 daN. Upper Cross Slide: Z₁ axis (longitudinal slide):Maximum stroke: 300 mm. Screw diameter/pitch: 25/10 mm. Maximum rapid speed: 30 m/min. X₁ axis (transversal slide):Maximum stroke: 85 mm. Screw diameter/pitch: 25/10 mm. Maximum rapid speed: 15 m/min. Y₁ axis (vertical slide):Maximum stroke: 50 mm (+25/-25). Screw diameter/pitch: 25/5 mm. Maximum rapid speed: 15 m/min. Lower Cross Slide: Z₂ axis (longitudinal slide):Maximum stroke: 300 mm. Screw diameter/pitch: 25/10 mm. Maximum rapid speed: 30 m/min. X₂ axis (transversal slide):Maximum stroke: 85 mm. Screw diameter/pitch: 25/5 mm. Maximum rapid speed: 15 m/min. Y₂ axis (vertical slide):Maximum stroke: 50 mm (+25/-25). Screw diameter/pitch: 25/5 mm. Maximum rapid speed: 15 m/min. Counter Spindle Cross Slide: Z₃ axis (longitudinal slide):Maximum stroke: 340 mm. Screw diameter/pitch: 25/10 mm. Maximum rapid speed: 30 m/min. X₃ axis (transversal slide):Maximum stroke: 170 mm (+85/-85). Screw diameter: 25/5 mm. Maximum rapid speed: 15 m/min.
