Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
BOEHRINGER - DUS 400 tiNL-TUR-BOE-2003-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used BOEHRINGER DUS 400 ti Lathe For sale | gindumac.com

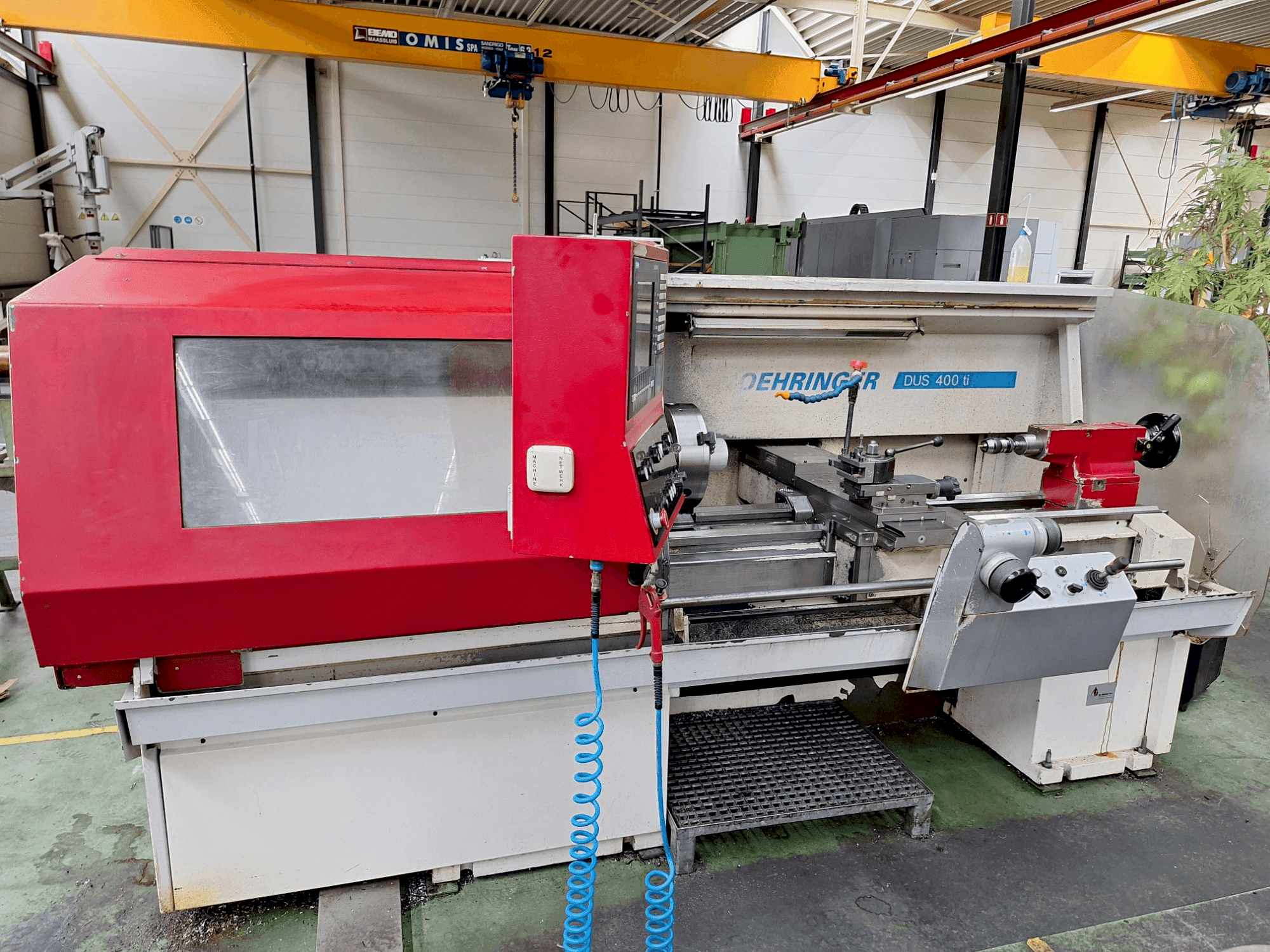

This lathe was manufactured in 2003. The BOEHRINGER DUS 400 ti features a robust tailstock with a quill diameter of 70 mm and stroke of 110 mm. It supports a maximum workpiece weight of 250 kg with tailstock and steady rest. Equipped with a 10.4" color LCD display, it offers detailed control over spindle speed and feed rate. Ideal for precision tasks, the machine we have for sale is a valuable addition to any workshop. Contact us for more information.
Resumen
- marca: BOEHRINGER
- año: 2003
- MODELO: DUS 400 ti
- tipo de aplicación: Torneado
- Ubicación: Países Bajos
- tipo de máquina: Tornos horizontales
Información adicional
Machine Benefits
Qualitative Machine Benefits
- Swing-dia over bed 235mm
- 420 mm swing-dia over cross slide
Technical Machine Benefits
- Feed: metric screw thread (long, flat, and conical) with a range of 0. 1–400 mm.
- Tailstock:quill diameter: 70 mm quill stroke: 110 mm internal taper of the quill: mk 4
- Internal taper of the spindle: sk 60°
- Center angle, normal: 60°
- Clamping and guide device diameter of flat plate, normal: 400 mm
- Three- and four-jaw plate, diameter according to vdf 6025: 250 mm
- Fixed steady rest: 200 mm
- Allowable workpiece weights:unsupported, max. Center of gravity distance without clamping device: 100 kg with clamping device: 50 kg with tailstock: 150 kg with tailstock and 1 steady rest: 250 kg
- Display: 10. 4" color lcd
- 1000 mm between the centers
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
