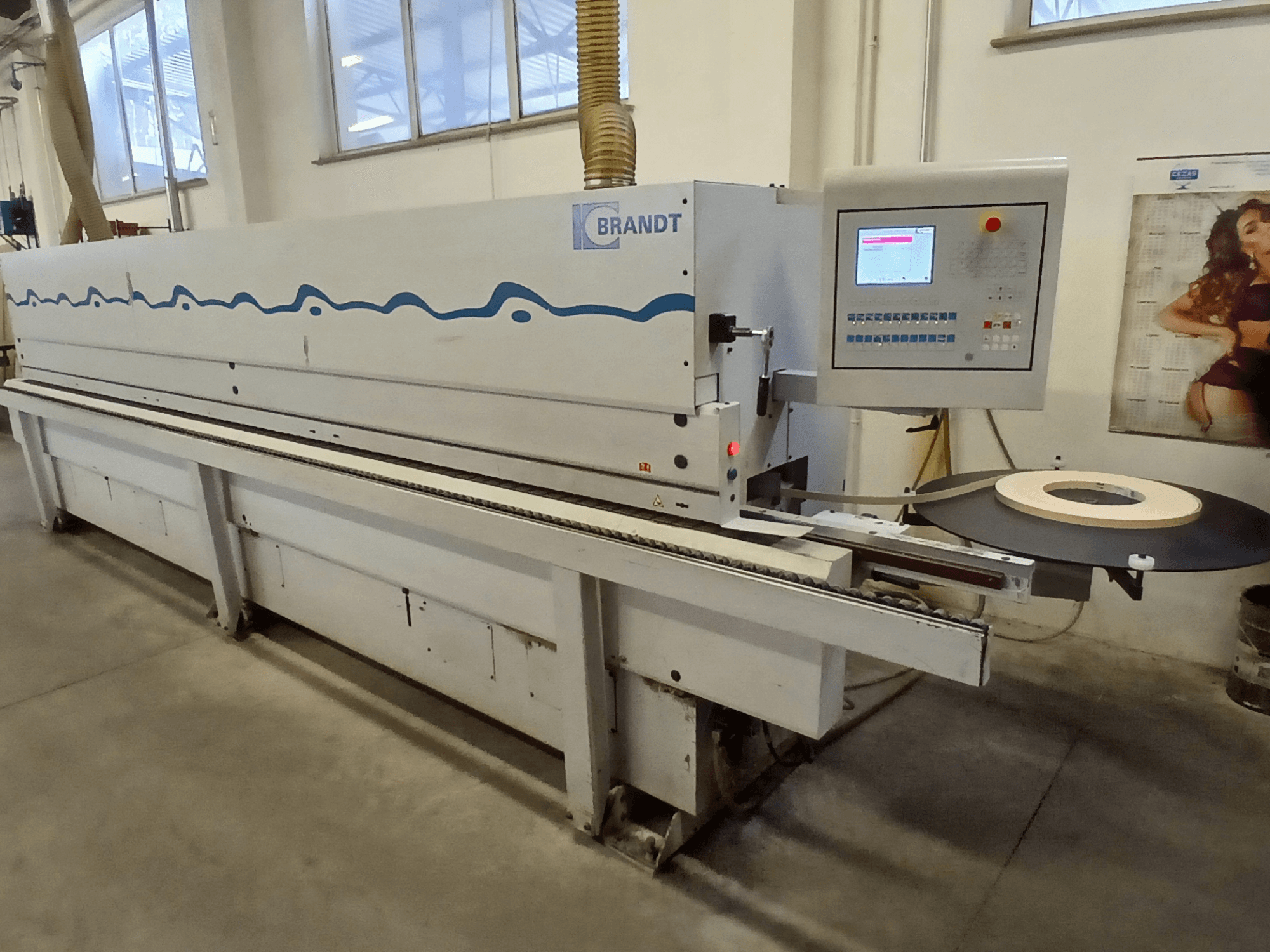

This BRANDT OPTIMAT KDF 670 edgebander was manufactured in 2005. It features a comprehensive range of processing units including pre-milling, glue application, edge feeding and cutting, and polishing. Capable of handling workpiece thicknesses from 8 to 60 mm and edge bands up to 15 mm. Feed speed reaches up to 20 m/min, optimizing productivity. Consider the opportunity to buy this BRANDT OPTIMAT KDF 670 edgebander. Contact us for more information about this machine.
Resumen
- marca: BRANDT
- año: 2005
- MODELO: OPTIMAT KDF 670
- tipo de aplicación: Canteado
- Ubicación: Polonia
- tipo de máquina: Bordeadora
Información técnica - BRANDT OPTIMAT KDF 670
Dimensiones
- Altura de la máquina: 2300 mm
- Longitud de la máquina: 6060 mm
- Peso de la máquina: 2600 kg
Información adicional
Processing units / aggregates:
Pre-milling unit
Glue application unit
Edge feeding and cutting (roll/strip)
Pressure zone
End trimming unit
Top and bottom trimming unit (pre-milling + profiling)
Corner rounding unit
Scraper unit (profile scraper)
Glue joint scraper
Cleaning (solvent or spray system)
Polishing unit
Working capacity:
Workpiece thickness: 8–60 mm
Edge band thickness (rolls): 0.4–3 mm
Edge band thickness (strips): up to 12–15 mm
Feed speed: 8–18 m/min (up to 20 m/min depending on configuration)
Minimum workpiece width:
70 mm (workpiece thickness 8–22 mm)
120 mm (workpiece thickness 23–40 mm)
150 mm (workpiece thickness 41–60 mm)
Maximum edge roll diameter: 830 mm
Electrical & power:
Total installed power: approx. 21 kW
Voltage: 400 V, 3-phase, 50 Hz
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
