Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
Brother - Speedio S700X1SI-MIL-BRO-2017-00002
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used Brother Speedio S700X1 For Sale | gindumac.com

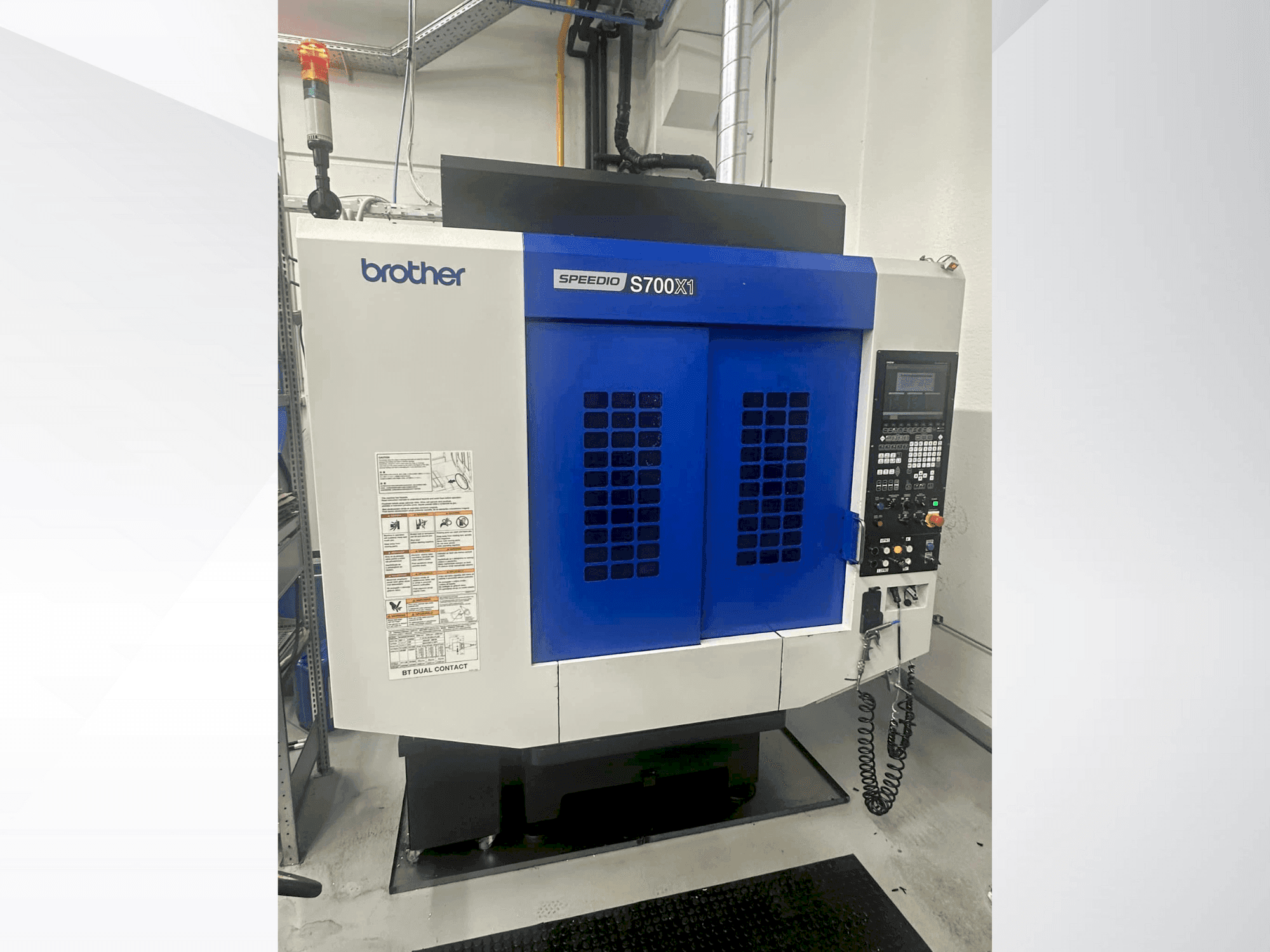

This 3-axis Brother Speedio S700X1 CNC milling machine was manufactured in 2017. It features a high-speed 16,000 rpm spindle, extensive travels of 700 mm in X, 400 mm in Y, and 300 mm in Z, and a rapid traverse rate up to 56 m/min. The machine includes a 21-piece tool storage capacity and supports advanced interfaces for robotics and automation. Ideal for precision machining, buy this Brother Speedio S700X1 CNC milling machine. Contact us for further details regarding this CNC milling machine.
Resumen
- marca: Brother
- año: 2017
- MODELO: Speedio S700X1
- tipo de aplicación: Fresado
- Ubicación: Eslovenia
- tipo de máquina: Centro de mecanizado vertical
Información técnica - Brother Speedio S700X1
Dimensiones
- Peso de la máquina: 2400 kg
Recorrido
- Número de ejes: 3
Especificación Técnica
- Velocidad del husillo: 16000 RPM
- Refrigeración a través del husillo: Sí
Información adicional
Additional equipment
- Robot Interface: Yes
- Automatic Door Interface: Yes
- Clamping Control: Pneumatic
- Additional Pneumatic Valves: 2x
- Additional Vacuum Valves: Yes, with upgrade for working with vacuum (safe work - confirmation of clamping under a certain vacuum)
- Handwheel: Included
- Clocks in Cycle: 9,840
Machine Benefits
Qualitative Machine Benefits
- 4th axis: with brake
Technical Machine Benefits
- Required floor space:2,050 mm × 2,220 mm
- Internal cooling: yes (12 bar)
- Extended table: 840 mm clear dimensions between the supports of the 4th axis
- Hydraulic pump: up to 120 bar, two-channel (i. E. , 2x clamp)
- Rapid traverse rates of 50 m/min for x and y axes, and 56 m/min for z axis
- Comprehensive hydraulic and pneumatic control systems
- Robot and automatic door interfaces for automation
- Power requirements:voltage: 230v / frequency: 50/60 hz / power consumption: 9. 5 kva / circuit protection: 25 ka
- Electrical supply: ethercat / cnc-coo date: balan
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
