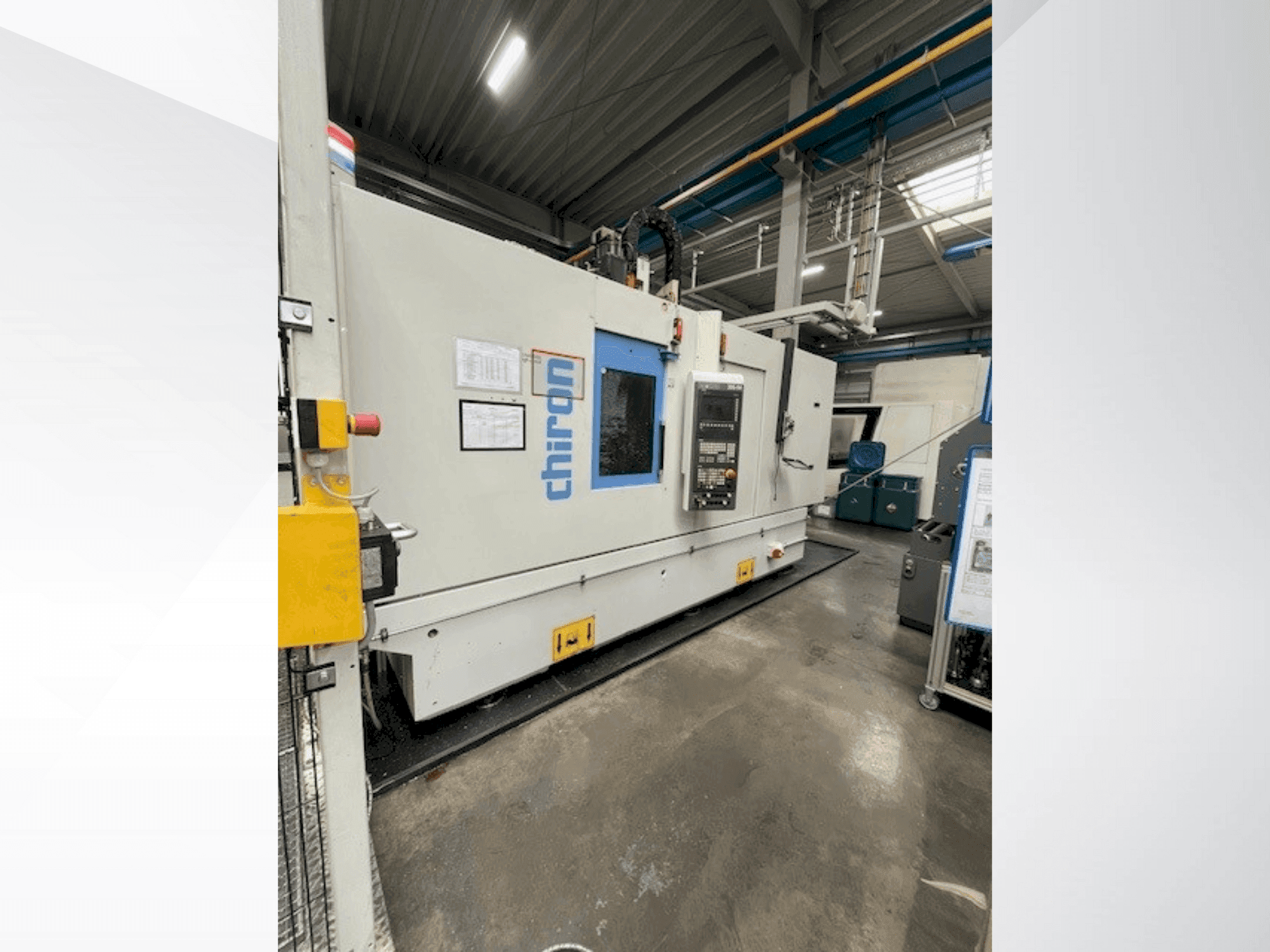

CHIRON - DZ18WDE-MIL-CHI-2018-00001

Additional equipment

• OPTIONAL: robot, entire cell including conveyor belts, PLC, turning station

Machine Benefits

Technical Machine Benefits

• Tool positions: 2x35
• Tool length max: 380 mm

Extra Information

Splash guard panel with fully enclosed work area/ with loading door, electrically protected/ including replaceable safety windows/ Work area partition with stainless steel louvres/ Height 2340 mm above floor, including machine light/ Mini control panel with start and reset button for M61/M62 pallet organization/ Integrated workpiece changing device IWW 0/180°/ for optimal chip flow with center partition made of sheet steel/ Workpiece changing time approx. 3.5 seconds, weight-dependent, self-regulating/ thanks to self-learning speed control./ Transport load per side 0 - max. 250 kg/ Max. 120 kg weight difference between the two table sides./ Each table side is prepared for the installation of a rotary table package./ Distance between spindle mount and swivel center/point /WW minimum 75 mm/ Travel paths: X-axis 630 mm/ Y-axis 530 mm/ Z-axis 450 mm/ Tank flushing system with coolant connection/ NC rotary table, type ATU 200/ Integrated into the integrated workpiece changing device IWW 0/180°/ With hydraulic clamping, holding torque 1,200 Nm,/ Repeatability +5" with/ faceplate © 225 mm, with centering® 60 -0.008,/ Counter bearing with hydraulic clamping, holding torque 800 Nm./ On the rotary table and counter bearing side. Swivel radius 285 mm/ 7th or 5th NC axis, plug-in ready/ Regulated pneumatic connection for sealing air/ Controlled hydraulic connection for clamping./ Rotary feedthrough 2 x 5-way/ Rotary table side: 4 x hydraulic/pneumatic, 1 x Pneumatics/ 4 x hydraulic/pneumatic on the counter bearing side, 1 x pneumatic/ Working area - rotary table assignment/ AF1 Rotary table ATU 200/ AF2 Rotary table ATU 200/ Double-spindle headstock/ Prepared to accommodate 2 main spindle motors with spindles/ Spindle distance in X-axis 400 mm/ Main spindle drive with 2 AC motors/ Air-operated, with tool clamp monitoring/ 11.0 kW at 100% duty cycle/ 25.3 kW at 15% duty cycle/ Speed up to 12,000 rpm/ Max. torque 140 Nm/ Drilling capacity 2 x 42 mm/ in steel E355/ Automatic tool changer/ with robust, fully encapsulated pick-up chain magazine/ 2 x 35 tool positions/ HSK-A 63 DIN tool shank 69893/ Tool width max. 78 mm/ Tool width with free adjacent positions max. 140 mm/ Tool length max. 380 mm/ Tool weight max. 8.0 kg (max. magazine load 240 kg)/ Tool change time approx. 0.9 s (control system dependent)/ Soan-to-chip time approx. 2.2 s (control system dependent)/ Feed drive for X, Y, and Z axes/ Digital drives with direct position measuring systems, overpressure application/ Rapid traverse speed 75 - 75 - 75 m/min/ Axis acceleration 1.0 - 1.4 - 1.6 g/ SIEMENS CNC control 840D solution line/ incl. 10.4" TFT color screen / full keyboard / operator panel OP010S/ 1280 1 (TCU / NCU 720.3, 1 channel)/ User interface Operate/ NC RAM 3 MB (max. 1 MB available)/ (max. 200 programs available)/ for running part programs according to DIN 66025/ CF card with 8 GB storage capacity (max. 3 GB available)/ Power display, operating hours and workpiece counter on the screen, Screen blanking, access authorization via key switch, NC diagnostics with help function, machine diagnostics, USB interface on the control panel./ Look-ahead with dynamic feedforward control, oriented spindle stop, restart in the program, Subroutine technology in high-level language and parameters, Simultaneous programming, cycle support, Drilling cycles G81-G89, drilling and milling patterns, Measuring in JOG, M and T functions, Tool offsets for geometry, wear, 4 storable zero point offsets G54-G57, 30 zero point offsets via G functions Programmable, Tool radius correction with intersection point calculation, Insertion of chamfers and radii, transition radii, Contour programming, scale factor, mirrors, Polar coordinates, circular interpolation (full circle programming)./ 3D interpolation, helical interpolation./ Because of the invention with fresh sound waves/ Network cabling is not included./ Chip conveyor (scraper belt)/ Tank capacity 200 l/ Pump output 250 l/min at 1.4 bar/ Coolant cleaning via slotted screen box/ Chip conveyor ejection height 1050 mm/ Chip conveyor ejection direction left/ 1640 1/ Coolant system TPF 350 / FKA 900/ (also for sludge-forming materials e.g. gray cast iron, GGG, Al with Si >/= 12%)/ Tank capacity 900 l/ LP pump 100 l/min at 2.4 bar to 250 l/min at 2.3 bar/ Energy-efficient frequency-controlled HP pump/ 43 l/min at 20 bar to 35 l/min at 70 bar/ Vario pressure relief valve for 8 programmable pressure levels/ Preset to 20, 30, 40, 50, 55, 60, 65, 70 bar
