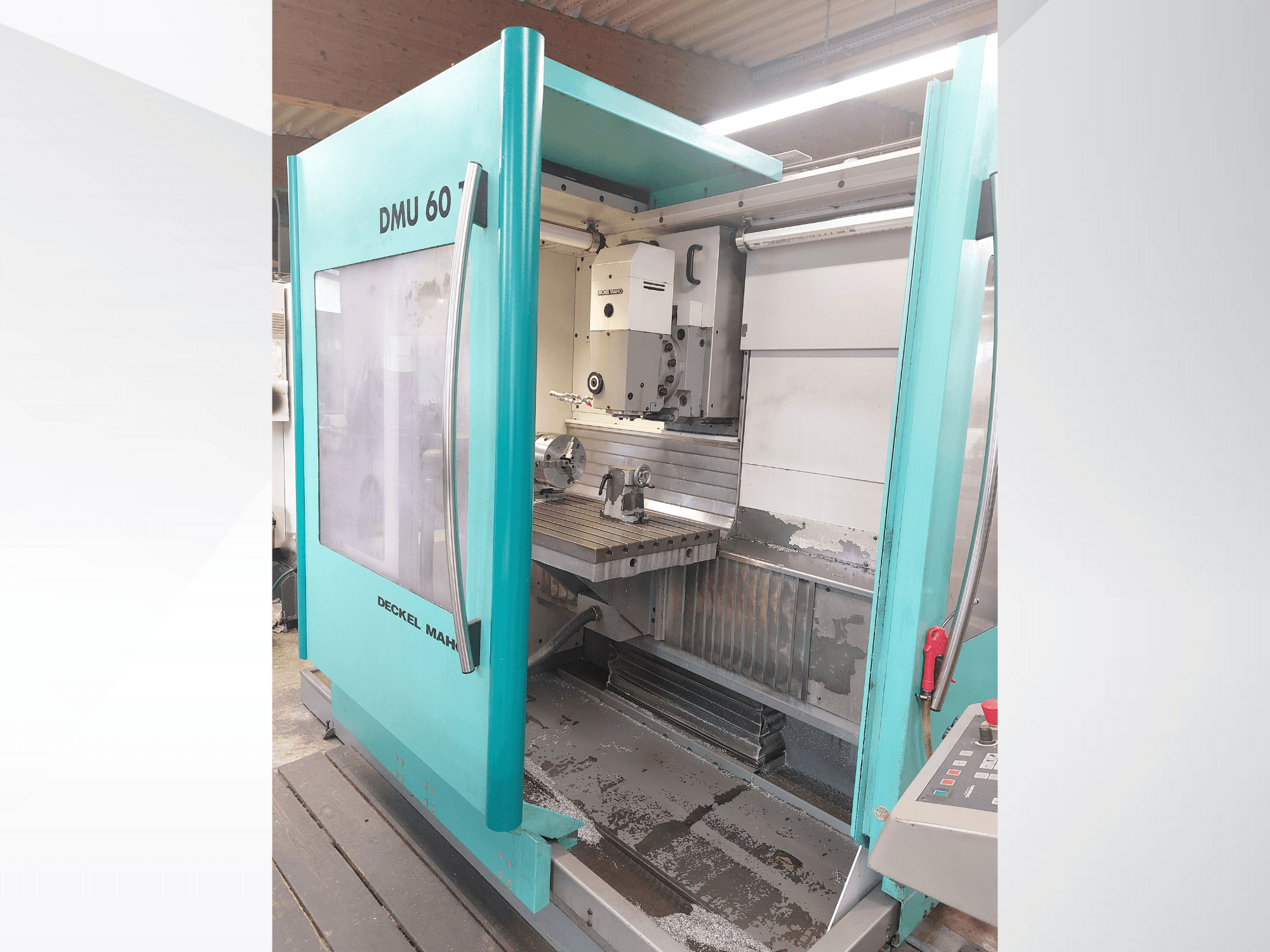

DECKEL MAHO - DMU 60T DE-MIL-DEC-1996-00007

Control & Electrical

• Control: Millplus V400

• Screen: Color, text in German/English

• Operating Voltage: 400 V, 50 Hz

• Control Voltage: 24 V

• Drive: Digital with overload protection

Spindle & Tooling

• Spindle: With quill

• Maximum Spindle Speed: 6,300 rpm (speed range with gearbox: 20–6,300 rpm)

• Tool Holder: ISO 40 – DIN 69871

• Pull Stud: DIN 69872 Form A

• Tool Changer: 24–25 tool positions

Working Area & Movement

• Longitudinal (X) Travel: 600 mm

• Cross (Y) Travel: 525 mm

• Vertical (Z) Travel: 500 mm

• Rapid Traverse X/Y/Z: 18 m/min

• Feed Rate: Up to 10,000 mm/min

• NC Rotary Table: 3-axis on fixed table

Cooling & Accessories

• Coolant System Capacity: 150 L

• Full Enclosure: Yes

• Paint: Gray / Green (NCS)

Documentation

• 2 sets, German

The machine has a 4-axis C-axis (dividing head)
