DECKEL MAHO - DMU 60TGR-MIL-DEC-2001-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- DECKEL MAHO DMU60T Vertical Machining center

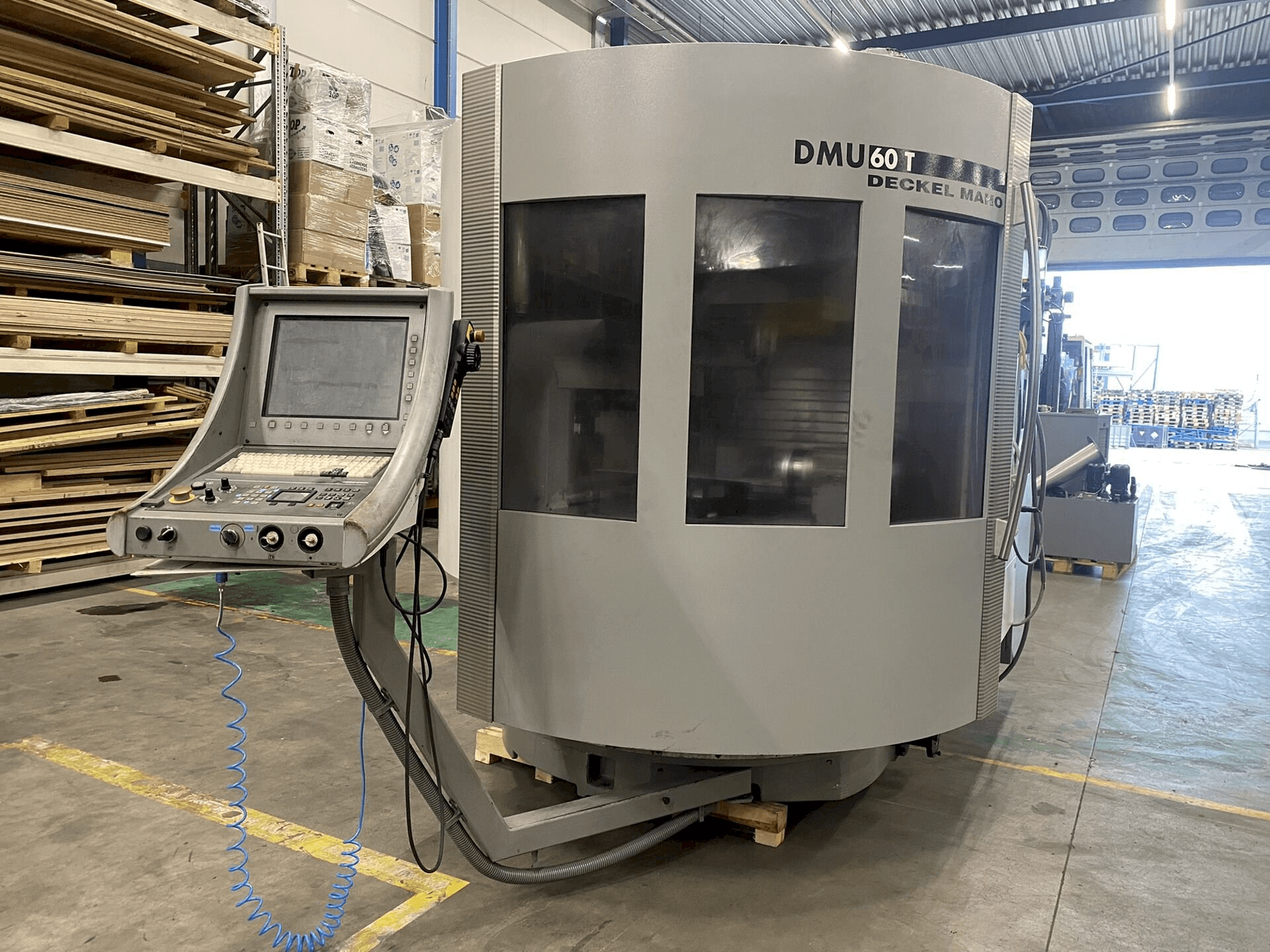

This DECKEL MAHO DMU60T Vertical Machining center was manufactured in the year 2001. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. It comes with tools included.
Resumen
- marca: DECKEL MAHO
- año: 2001
- MODELO: DMU 60T
- horas de producción: 22000
- tipo de aplicación: Fresado
- Ubicación: Grecia
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: HEIDENHAIN
Información técnica - DECKEL MAHO DMU 60T
Unidad de Control
- Marca del control: HEIDENHAIN
- Modelo del control: TNC 430
Recorrido
- Número de ejes: 5
Especificación Técnica
- Velocidad del husillo: 18000 RPM
Información adicional
Additional equipment
- Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference)
- Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009
- Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.
Machine Benefits
Qualitative Machine Benefits
- Max. Tool diameter: 160 mm
- Max. Tool length: 315 mm
- Max. Tool weight: 8 kg
- Max. Weight in magazin: 100 kg
Technical Machine Benefits
- 4th axis: hofmann rwnc-160 5th axis: rotary swivel spindle head 115 degrees
- Cooling unit: schimpke dk25-v/s0
- Max. Workpiece weight 400 kg
- Table surface area l x w 1000x600 mm
- Taper sk40
- Toolchanger positions 20
- Feed range 20-10000 mm/min rapid motion 20 m/min
- Total power requirement 28 kw / 49kva
Extra Information
Max. tool diameter: 160 mm Max. tool length: 315 mm Max. tool weight: 8 kg Max. weight in magazin: 100 kg 4th axis: HOFMANN RWNC-160 5th axis: Rotary swivel spindle head 115 degrees Cooling unit: SCHIMPKE DK25-V/S0 Z- 560 mm X- 630 mm Y-560 mm max. workpiece weight 400 kg Control Heidenhain TNC 430 Table surface area l x w 1000x600 mm Taper SK40 Toolchanger positions 20 Turning speed range 18000 rpm Feed range 20-10000 mm/min Rapid motion 20 m/min Total power requirement 28 kW / 49kVA Weight approx. 6700 kg Dimensions (l x w x h) approx. 3500x2200x2300 mm It is has a 4th axis rotary and a positional 5th axis Cooling unit Accessories include 30 SK40 toolholders (Mainly Haimer and Weldon, with 5 ER32, one 80mm facemill and others, see photos for reference) Magnetic vice table 350x350mm. Two brand new vices, FREUTEK ATT0009 Vice Jaw opening: 80mm, Jaw height: 46 mm, Maximum opening: 220 mm and FREUTEK ATT0010 Vice Jaw opening: 150mm Jaw height: 46 mm, Maximum opening: 220 mm.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
