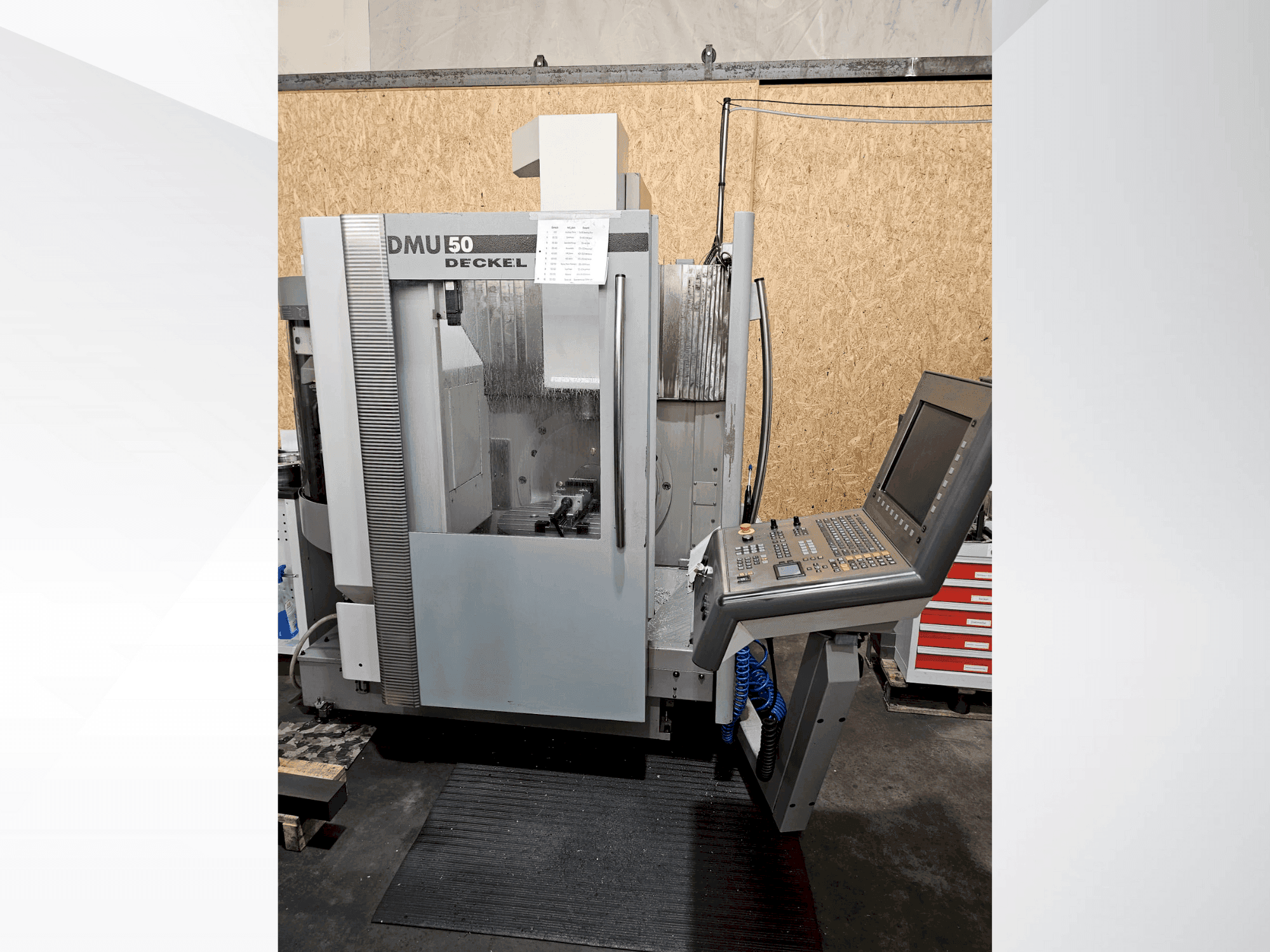

This 5-axis DMG DECKEL MAHO DMU 50 vertical machining centre was manufactured in 2005. It features a Heidenhain iTNC 530 control, a main spindle speed range of 20 - 10,000 RPM, and a rotary table with a clamping surface of 630 x 500 mm. The machine has undergone significant overhauls, including a complete X-Axis bearing replacement and new coolant pump installation. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 50 machine we have for sale. Contact us for more information.
Resumen
- marca: DMG DECKEL MAHO
- año: 2005
- MODELO: DMU 50
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: HEIDENHAIN
Información técnica - DMG DECKEL MAHO DMU 50
Unidad de Control
- Marca del control: HEIDENHAIN
- Modelo del control: iTNC 530
Dimensiones
- Peso de la máquina: 3600 kg
Recorrido
- Número de ejes: 5
- Recorrido eje X: 500 mm
- Recorrido eje Y: 450 mm
- Recorrido eje Z: 400 mm
Especificación Técnica
- Potencia del husillo: 9 kW
- Velocidad del husillo: 10000 RPM
- Tamaño del cono: SK 40
Información adicional
Additional equipment
- Tool Positions: 16 / Max. Tool Weight: 6 kg / Max. Tool Length: 300 mm
- Max. Tool Diameter: Without adjacent tools: 130 mm / With adjacent tools: 80 mm
- Total Power Requirement: 17 kVA
- No chip conveyor included / No automatic measuring probe included / No tools included
Machine Benefits
Qualitative Machine Benefits
- Low spindle hours and power-on hours.
- Never used in series production; operated with care and proper procedures.
- Warm-up programs and maintenance routines followed for optimal performance.
Technical Machine Benefits
- Torque: 57 / 82 nm / rapid traverse (x/y/z): 12 m/min /feed rate: 10000 mm/min
- Table clamping surface: 630 x 500 mm
- Swivel range: -5 / +110°
- Max. Table load: 200 kg
- T-slots: 14 h7 / t-slot spacing: 63 mm
- C-axis rotation: +/- 360°
- Complete x-axis bearing overhaul including ball screw and bearing assembly. / various hydraulic components overhauled. / tool changer readjusted and sensor system replaced.
- New door switch installed. / new discs installed (with some chip debris affecting them). / new coolant pump installed. / new screen installed. / new handwheel hr410 installed.
- Machine is 5-axis machine with 3+2 configuration
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
