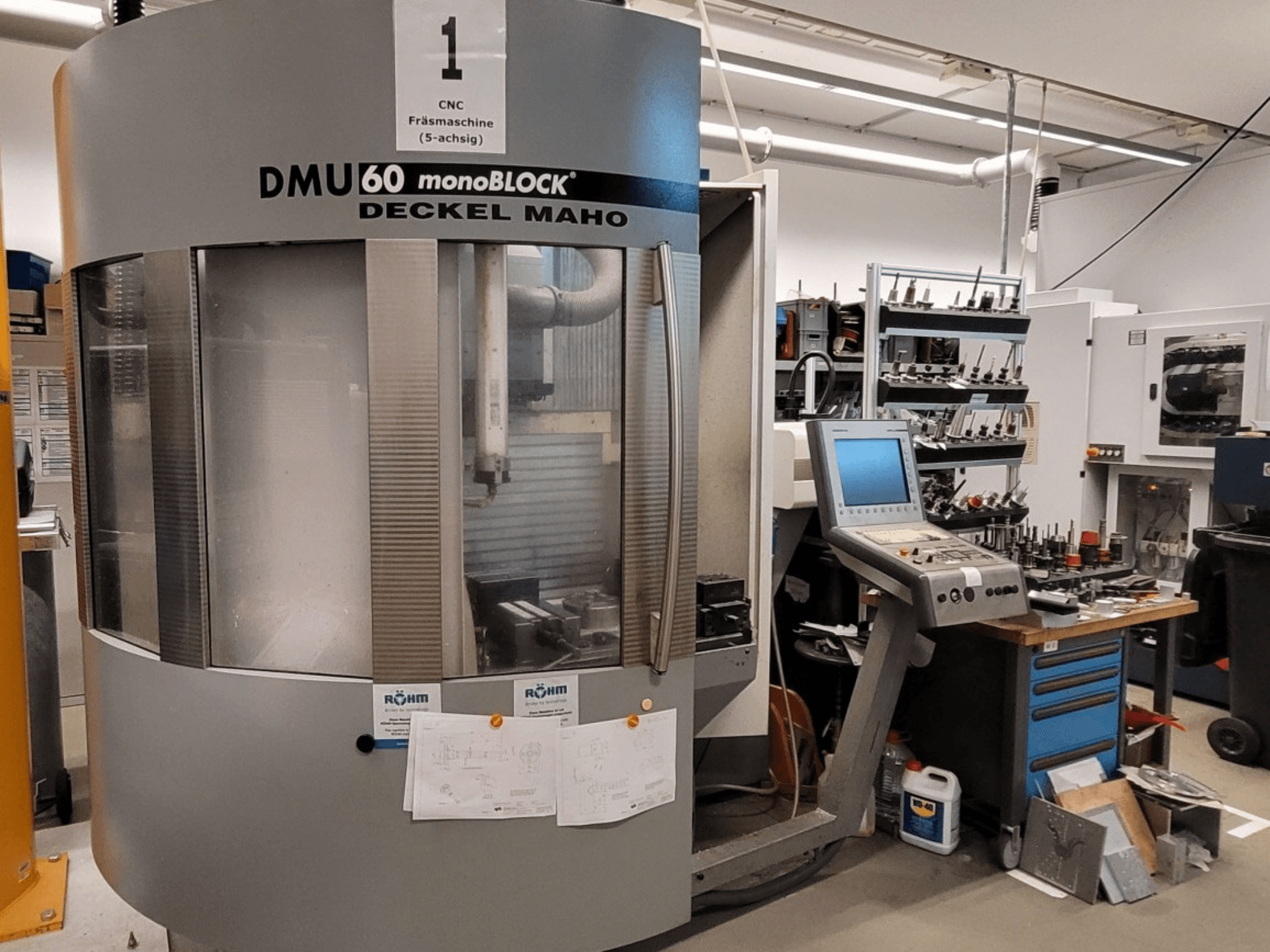

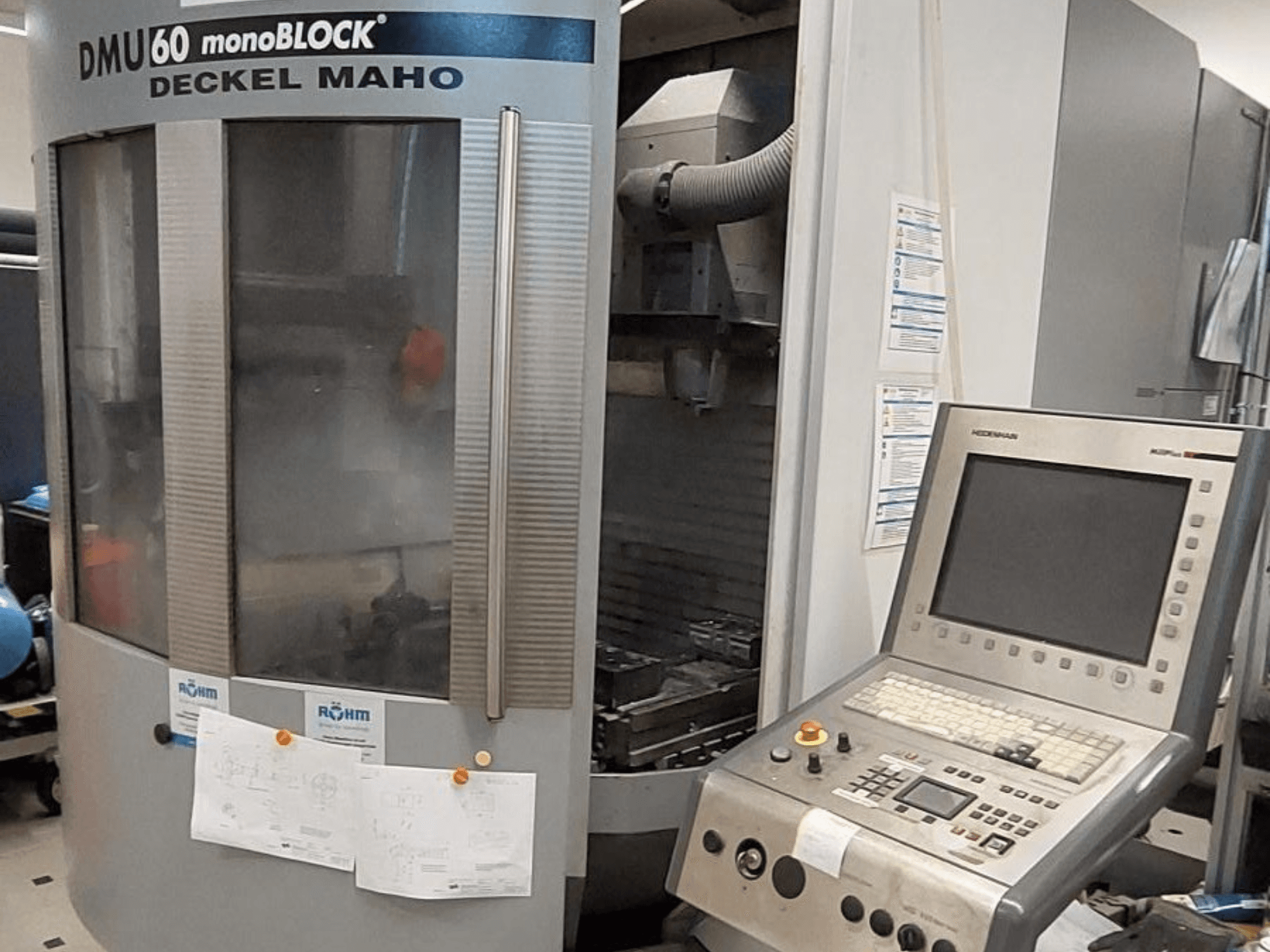

DMG DECKEL MAHO - DMU 60 monoBlockDE-MIL-DMG-2005-00007

• Axis configuration: 5-axis, 3/2 with B-axis

• CNC control: MillPlus IT (Heidenhain successor Philips 532 DIN)

• Operating hours: 5,873

• Spindle hours: 1,397

Additional equipment

• Rotary table attachment

• 3D probe

• Minimum quantity lubrication system

• Media distributor

• Nozzle body (optional)

  AC servomotors with digital technology for X, Y, and Z axes

  Flow rate X, Y, and Z axes infinitely programmable mm/min 20 - 10,000

  Rapid traverse X and Y axes m/min 26

  Z axis m/min 20

  Setup speed X, Y, and Z axes mm/min 20-2,000

  Distance measuring system

  Resolution X, Y, and Z axes 0.001 mm

  Input precision X, Y, and Z axes 0.001 mm

  Position tolerance X, Y, and Z axes 0.010 mm

  Working range

  Travel

  X axis 630 mm

  Y axis 560 mm

  Z axis 560 mm

  Machine with fixed table and tool changer approx. 6,500 kg

  Machine with maximum weight capacity for workpiece, tools, and operating fluids, coolant system: 7500 kg.

  Maximum load capacity at the machine base: 4600 kg

  Machine supports: Number x Type: 3 x GP37+TK 8

  Transport weight

  Machine with transport platform: approx. 6700 kg

  Machine with crate: approx. 7000 kg

  Transport dimensions approx. (L x W x H): 3.50 m x 2.70 m x 2.21 m

Pick-up by 12 December 2025 at the latest
