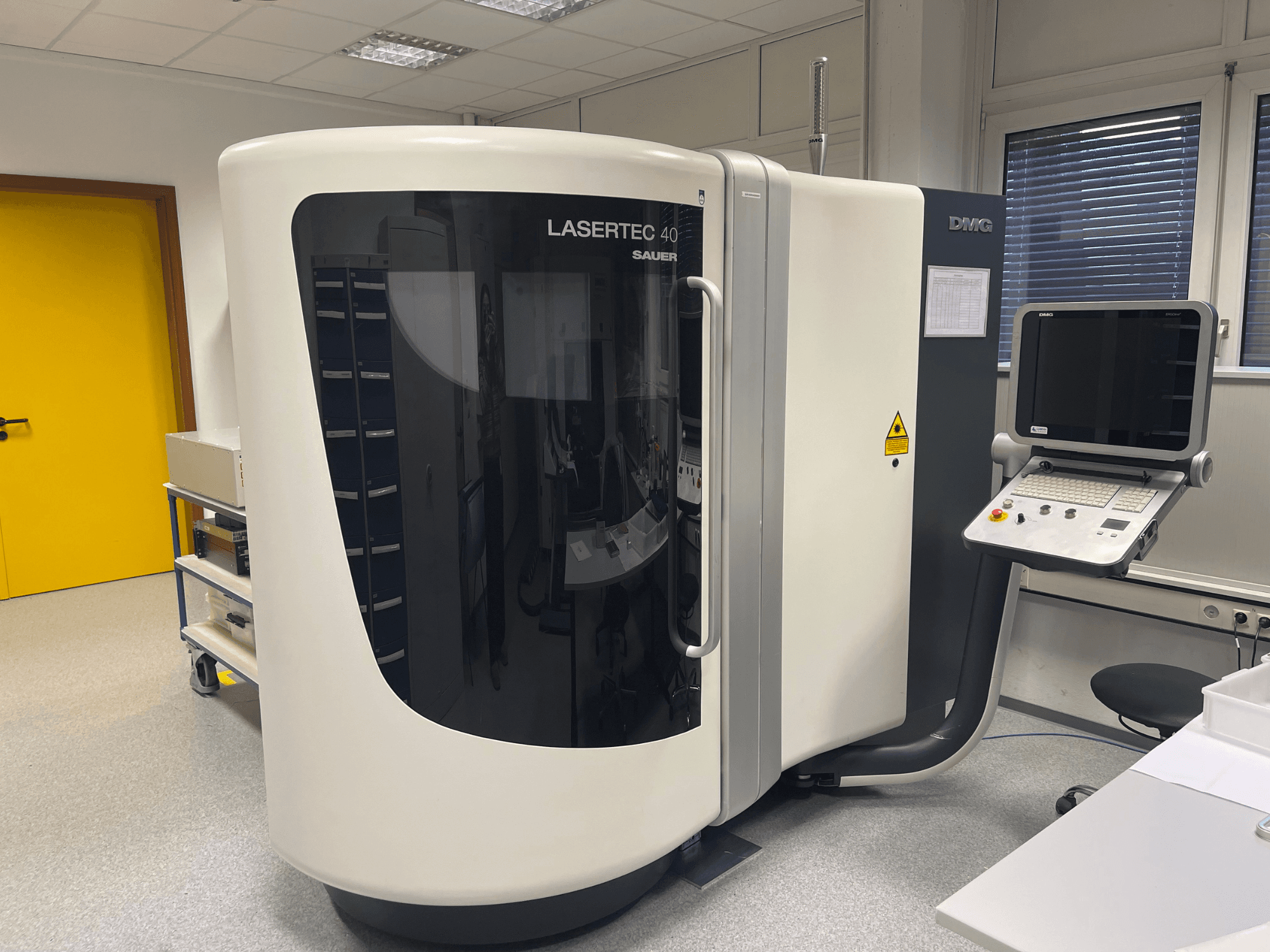

This 4-axis DMG Lasertec 40 laser engraving machine was manufactured in 2009. It features a picosecond laser with an average power of 6W and a wavelength of 1064 nm. The machine offers a travel range of X=400 mm, Y=300 mm, and Z=500 mm, with maximum feed rates of 15 m/min for X and Y axes and 12 m/min for the Z axis. Consider the opportunity to buy this DMG Lasertec 40 laser engraving machine. Contact us for more information.
Resumen
- marca: DMG
- año: 2009
- MODELO: Lasertec 40
- tipo de aplicación: Otras máquinas para chapa metálica
- Ubicación: Alemania
- tipo de máquina: Máquina de grabado láser
Información técnica - DMG Lasertec 40
Dimensiones
- Altura de la máquina: 2370 mm
- Longitud de la máquina: 2850 mm
- Peso de la máquina: 2500 kg
Información adicional
Machine footprint (incl. operation/maintenance with extraction): Depth 3.5 m, Width 3.0 m, Height 2.5 m
Weight with X-Y table: approx. 2,500 kg
Machine power consumption (with laser and cooling unit): 16 kVA
Fuse: 40 A at 400 V
Operating voltage: 3/N/PE/400 V/230 V 50 Hz
Maximum permissible deviation: ±10%
Control voltage: 24 V DC
Permissible ambient temperature: +15°C to +35°C
Permissible relative humidity: max. 75% at 20°C
Travel range (with X-Y table): X = 400 mm (longitudinal), Y = 300 mm (transverse), Z = 500 mm (vertical)
Table size: 400 x 300 mm
Feed drive: Digitally controlled AC motor and ball screw in each linear axis
Maximum feed rate: X/Y: 15 m/min; Z: 12 m/min
Guides: Ball screw guides in all linear axes
Measuring systems: X, Y, Z indirect linear encoder
Machine accuracy: P = 0.010 mm (VDI/DGQ 3441)
Laser type: Picosecond laser
Average laser power: 6 W
Wavelength: 1064 nm
Scanner: Planar field lens; focal length 163 mm; field size 65 x 65 mm
Lubrication: Manual central lubrication
Electrical control cabinet: with cooling unit (integrated into the machine)
Cabin: Fully enclosed cabin including roof; laser safety screen (optionally multiple); optimal operator access
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
