- ➤ Used DMG MORI CMX 1100 V For Sale | gindumac.com

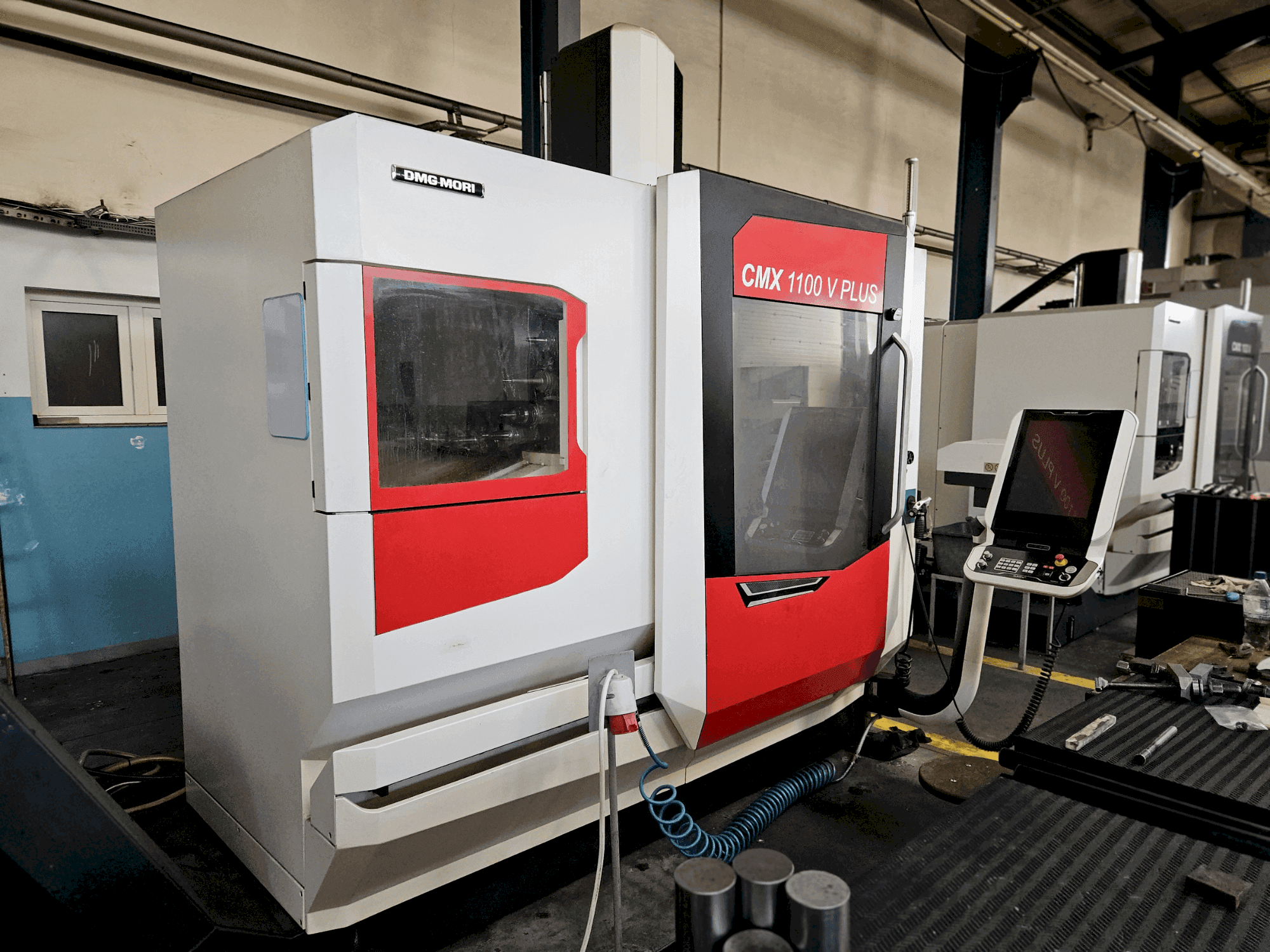

This 3-axis DMG MORI CMX 1100 V was manufactured in 2019 and features a robust C-Frame design. It offers a spindle speed range of 20 to 12000 rpm and a power output of 13 kW. The machine has a large table clamping surface of 1400 x 560 mm and can handle a maximum load of 1000 kg. Ideal for precision machining, buy this DMG MORI CMX 1100 V vertical machining centre. The machine is official DMG's colours black and white, the red part is a foil which can be easyly removed. Contact us for further details regarding this vertical machining centre.
Resumen
- marca: DMG MORI
- año: 2019
- MODELO: CMX 1100 V
- horas de producción: 13143
- tipo de aplicación: Fresado
- Ubicación: Polonia
- tipo de máquina: Centro de mecanizado vertical
Información técnica - DMG MORI CMX 1100 V
Dimensiones
- Largo de mesa: 1400 mm
- Carga de mesa: 1000 kg
- Ancho de mesa: 560 mm
Recorrido
- Recorrido eje X: 1100 mm
- Recorrido eje Y: 560 mm
- Recorrido eje Z: 510 mm
Especificación Técnica
- Potencia del husillo: 13 kW
- Velocidad del husillo: 12000 RPM
Información adicional
Additional equipment
- Tool Magazine: 30-position chain magazine with double gripper
- Internal coolant supply at 12 bar
- Machine Protection Control: MPC 2.0
- Tool Probe with calibration pin for the tool probe
- Handwheel
- Coolan Flushing Gun
- 4-color signal lamp
- Scraper-type chip conveyor with a 250-liter tank (left side)
- Work area flushing with M function
- Automatic roof for the work area (controlled by M function)
Machine Benefits
Technical Machine Benefits
- C-frame mechanical design
- Torque: 83 nm (40% ed), 57 nm (100% ed)
- Direct measuring system for x, y, z axes: includes linear scales with air purge for the measurement system
- Working hours: power on 13143h, spindle: 5404h
Extra Information
The machine is safely stored in a warehouse. Before disassembly, the machine was thoroughly inspected by the service team. A service report with geometry measurements is available. The equipment includes a tool probe, handwheel, chip flushing gun, and calibration pin for the tool measurement probe. The workpiece probe is not included.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
