DMG MORI - CMX 70UPL-MIL-DMG-2018-00004
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used DMG MORI CMX 70U For Sale | gindumac.com

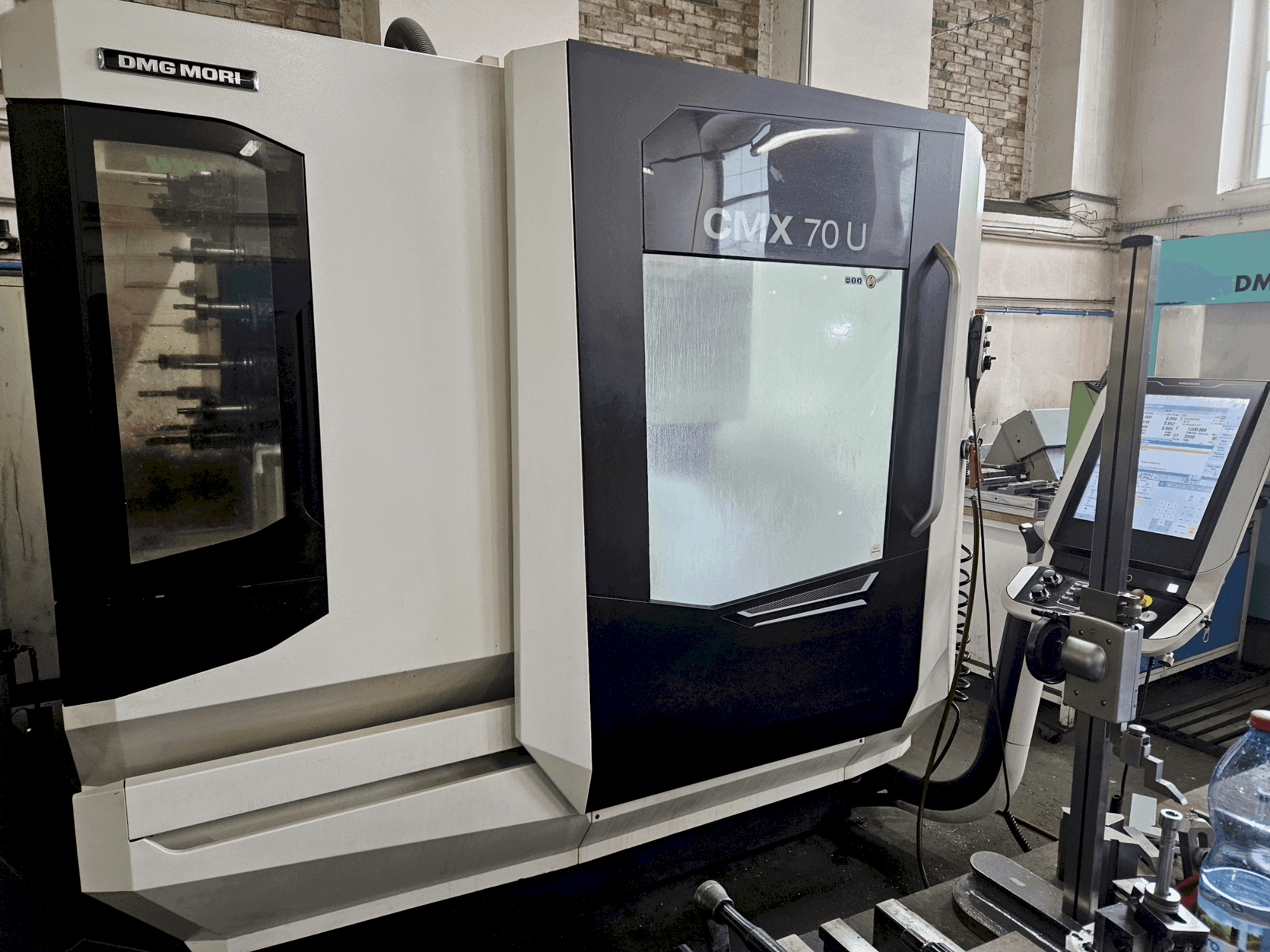

This 5-axis DMG MORI CMX 70U vertical machining center was manufactured in 2018. It features a 12,000 rpm spindle, a 30 m/min rapid traverse speed, and a 30-position chain tool magazine. The tilting rotary table enhances flexibility with B-axis and C-axis rotations. Ideal for processing copper and aluminum alloys. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 70U machine we have for sale. Contact us for further details regarding this machine.
Resumen
- marca: DMG MORI
- año: 2018
- MODELO: CMX 70U
- tipo de aplicación: Fresado
- Ubicación: Polonia
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: SIEMENS
Información técnica - DMG MORI CMX 70U
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: Slimline Multi Touch 19”
Recorrido
- Número de ejes: 3
- Recorrido eje X: 750 mm
- Recorrido eje Y: 600 mm
- Recorrido eje Z: 520 mm
Especificación Técnica
- Potencia del husillo: 13 kW
- Velocidad del husillo: 12000 RPM
Información adicional
Additional equipment
- Coolant-air switching with M function (external)
- Chip tray
- probes are included
- Tools/tool holders are not included
- Standard specs as on the left side
- Rotary Tilting Table: Table D 800x620 // B-axis rotation range: -10°/+95° // C-axis rotation range: 360°
- Rotary Tilting Table:Table D 800x620 B-axis rotation range: -10°/+95° C-axis rotation range: 360°
- Tool Magazine:30-position chain magazine with double gripper
- Coolant-Air Switching:Coolant/air switching via M function (external)
Machine Benefits
Qualitative Machine Benefits
- Very good working condition. Always work with soft metals only brass, copper and aluminum only
Technical Machine Benefits
- Rapid traverse speed on linear axes: 30 m/min
- The machine processes alloys of copper and aluminum.
- It is fully operational, connected, and with a possibility to perform tests.
- 30-position chain tool magazine with double gripper
- Working hours: power on: 12363h, spindle 5784h
- Direct measuring system x, y, z
- Spindle speed range:spindle speed: 20 to 12,000 rpm / main drive ac:power: 13/9 kw (40/100% dc) / tool holder:sk40 din69871 / tool clamping according to din 69872
- Internal coolant supply: 12 bar / chip conveyor with left-side tank capacity: 300 l / work area rinsing with m function; arm and magazine rinsing / manual work area rinsing - pistol / manual control panel (handwheel) / enclosed work area (roof) / 4-color signal lamp
- Direct measurement system for x, y, z axes (linear scales) with air purge for the measurement system.
Extra Information
Machine still under power
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
