Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
DMG MORI - ecoMill 70HU-MIL-DMG-2016-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- ➤ Used DMG MORI ecoMill 70 For sale | gindumac.com

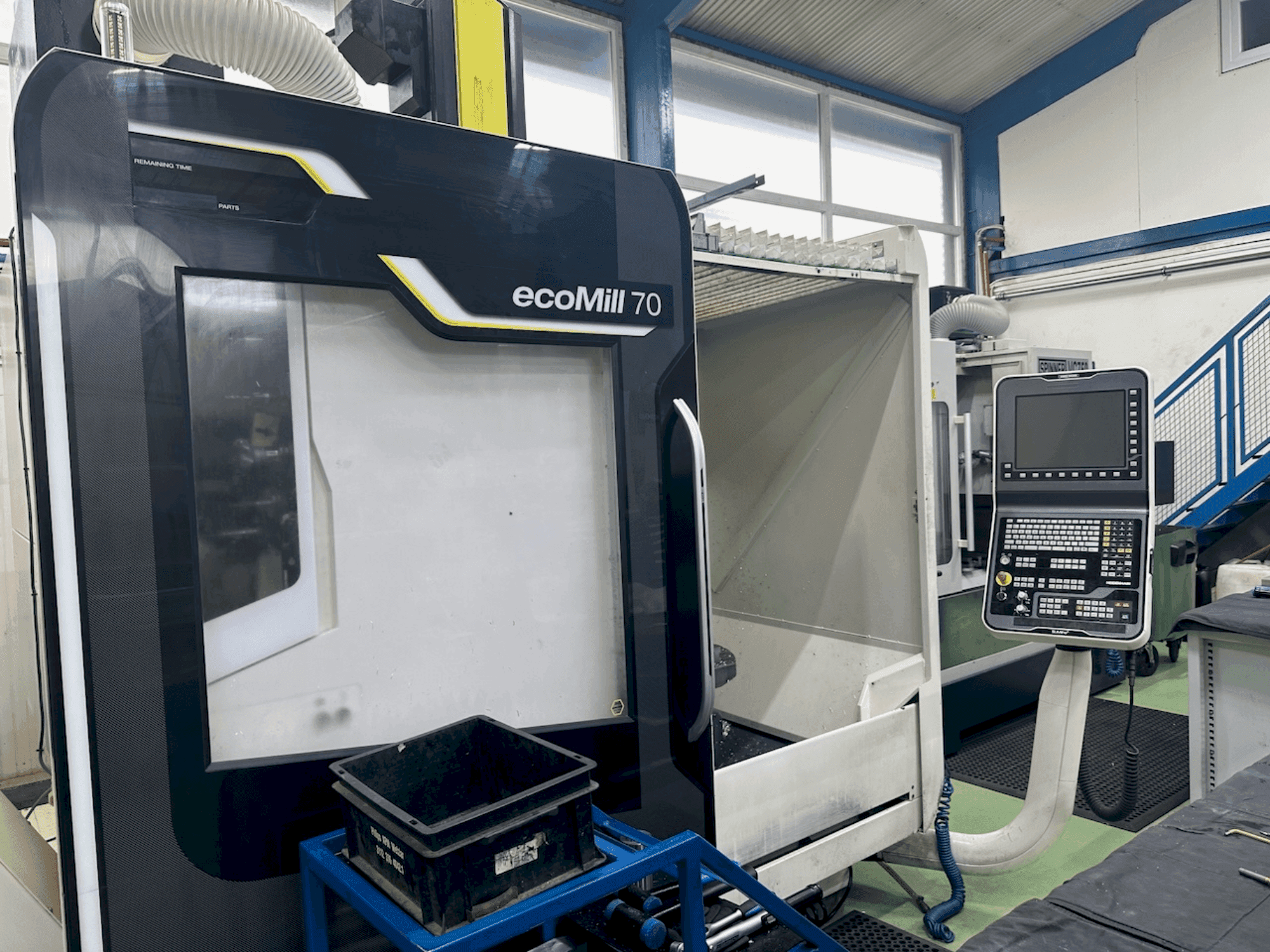

This 5-axis DMG MORI ecoMill 70 was manufactured in 2016. It features a Heidenhain 620 control, a spindle speed of 12,000 RPM, and a 32-place SK40 tool magazine. Additional features include a chip conveyor, spindle through cooling, and a 3D quickset system. Ideal for complex machining tasks, the DMG MORI ecoMill 70 machine we have for sale. Contact us for further details regarding this vertical machining centre.
Resumen
- marca: DMG MORI
- año: 2016
- MODELO: ecoMill 70
- horas de producción: 12900
- tipo de aplicación: Fresado
- Ubicación: Hungría
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: HEIDENHAIN
Información técnica - DMG MORI ecoMill 70
Unidad de Control
- Marca del control: HEIDENHAIN
- Modelo del control: 620
Recorrido
- Eje B máximo: 95°
- Eje B mínimo: -10°
- Eje C: 360°
- Recorrido eje X: 750 mm
- Recorrido eje Y: 600 mm
- Recorrido eje Z: 520 mm
Especificación Técnica
- Velocidad del husillo: 12000 RPM
Información adicional
Additional equipment
- 3D Quickset
- Protime oil mist collector
- Renishaw tool measuring
- Spindle through cooling
- For tooling with tooling support
- With closed machining space (roller roof)
- ASCII with keyboard
Machine Benefits
Qualitative Machine Benefits
- Heidenhain control options
- C-h3035 electronic handwheel
- Documentation
- C-hu1 documentation in hungarian 0. 00
- Screen language
- C-d-hu screen text in hungarian
Technical Machine Benefits
- Ecomill 70 with slimline module
- Tilt rotary table d 800x620 / digitally driven tiltable nc rotary table / rotating range b (-10o/+95o) / c (360o) / rapid traverse of linear axes 24 m/min
- Ac main drive 13/9 kw (40/100 % ed) / tool holder sk 40 according to din 69871
- 32-position tool change magazine with quick double gripper
- Direct path measuring system x,y,z, / measuring units with sealing air
- C-k4227 ecoline probe kit for heidenhain control consisting of: pp40 probe with optical signal transmission; ts27r probe for tool measurement; calibration mandrel with tool holder; calibration ring; transport case. Option direct path measuring system recommended
- C-k2630 heidenhain kinematicopt cycle / ool kit for checking and correcting the kinematic accuracy of 5-axis machine configurations (only in combination with probe option)
- Coolant/chip removal
- C-k3405 parts of the 1st production package: coolant supply via spindle 12 bar; tank volume 360 liters; chip container; flushing gun for chip washing; coolant - blow-off air changeover / external with m-function; 4-color indicator light
Extra Information
Machine still under power
