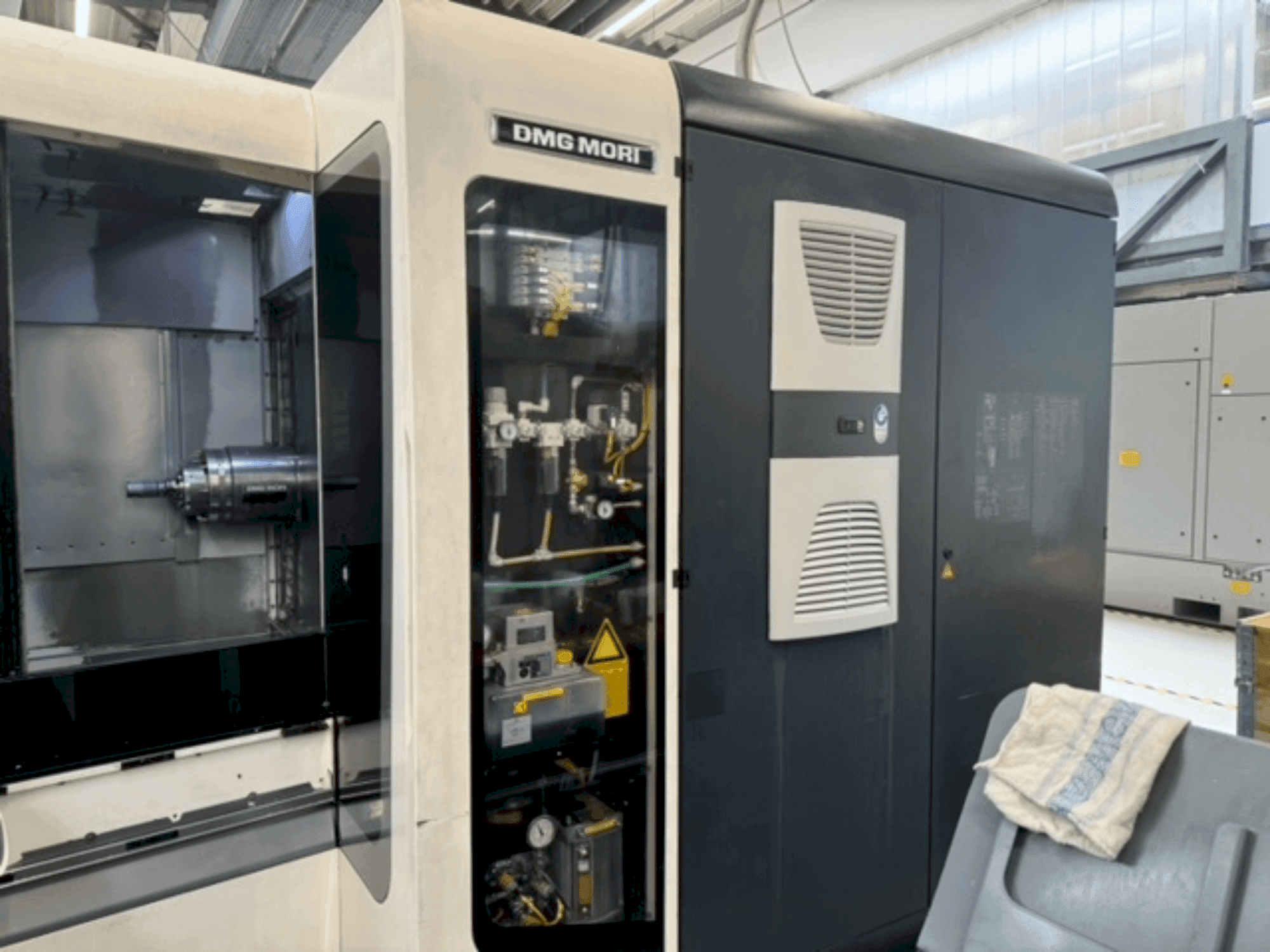

This 4-axis DMG MORI NHX 4000 was manufactured in 2017. A robust horizontal machining center, it features a travel range of 560x560x660 mm and a clamping surface of 400x400 mm. The spindle was completely overhauled in May 2023. It has a tool magazine with 60 slots. The tool Holder is HSK 63 HSK-A63 motor spindle and the spindle speed range is 20 - 20,000 min-1. The machine includes a CELOS® control system with Siemens 840D sl Operate, enhancing usability with a multi-touch screen. For more information about this horizontal machining center, please reach out to us.
Resumen
- marca: DMG MORI
- año: 2017
- MODELO: NHX 4000
- tipo de aplicación: Fresado
- Ubicación: Austria
- tipo de máquina: Centro de mecanizado horizontal
- Marca de unidad de control: SIEMENS
Información técnica - DMG MORI NHX 4000
Unidad de Control
- Marca del control: SIEMENS
- Modelo del control: 840D sl Operate with CELOS®
Recorrido
- Recorrido eje X: 560 mm
- Recorrido eje Y: 560 mm
- Recorrido eje Z: 660 mm
Información adicional
Additional equipment
Two pallets with threaded holes
Automatic turning APC with 2 stations
Direct distance measuring system
Rotating viewing window in the work area door
Coolant rinsing gun
I/F for oil mist separator
Knoll KF110/700 compact filter system
Spindle sensor measuring system with optical signal transmission / Cooling unit for spindle
Tool breakage control system in the tool magazine
Signal light (red, yellow, green, blue)
Machine Benefits
Technical Machine Benefits
The machine's spindle was completely overhauled in May 2023!
Apps for machine operation and data management, nc table with direct drive motor technology, random system tool slot assignment
Clamping surface: 400x400 mm
Indexing table angle 1º
Torque: 130 nm / 86 nm (40 / 100 % duty cycle)
Max. Tool diameter: 70 mm (neighboring tools), 170 mm (occupied neighboring places)
Max. Tool length: 450 mm / max. Tool weight: 12 kg / metric setting
The pallet is clamped on the table via this hydraulic circuit (red)
