Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
DN SOLUTIONS - Puma 2600 LSYB IIDE-TUR-DN -2021-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta
- DN SOLUTIONS Puma 2600 LSYB II (2021) Horizontal Turning Center

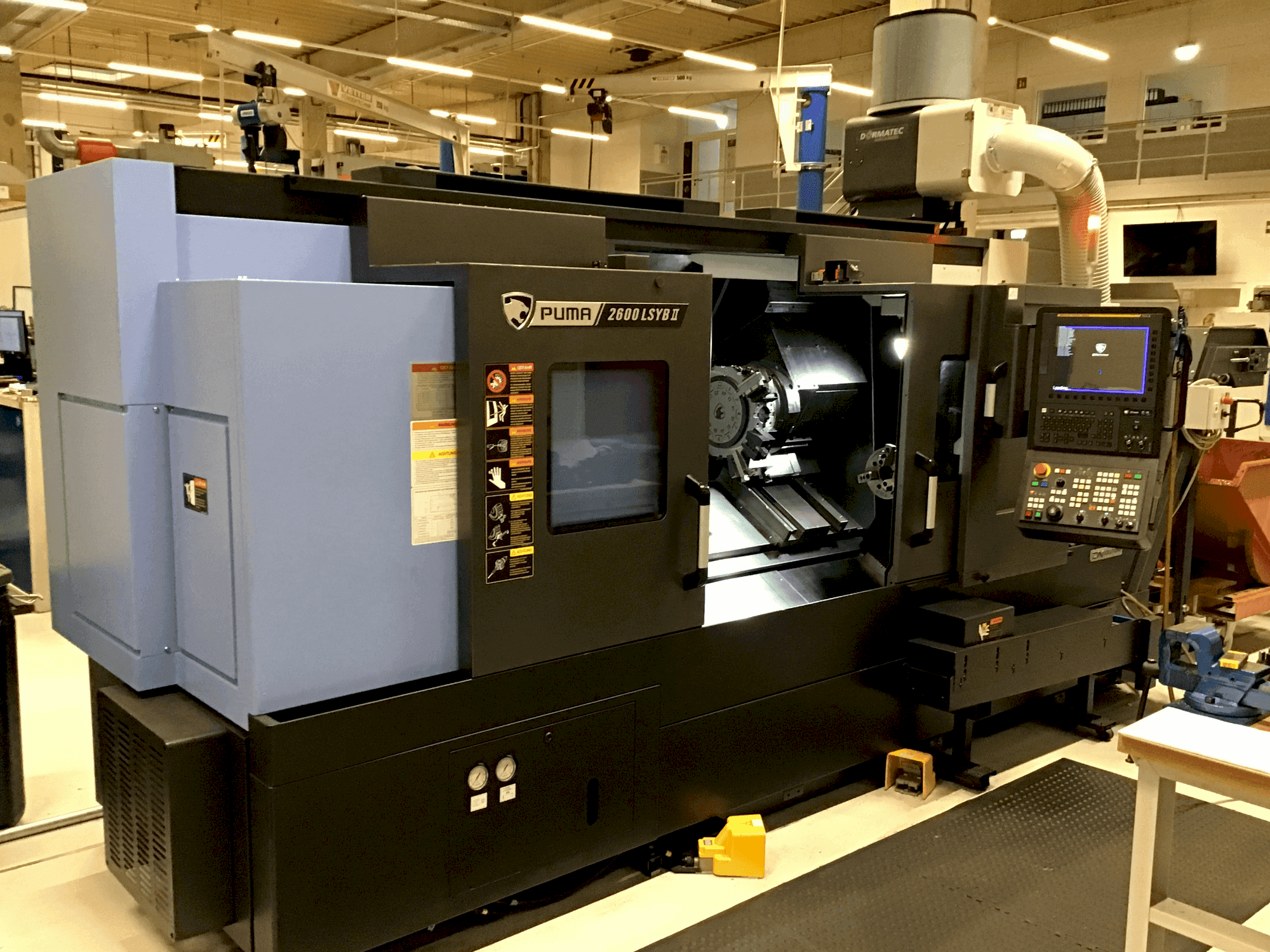

This DN SOLUTIONS Puma 2600 LSYB II (2021) Horizontal Turning Center is located in Germany and was manufactured 2021 in South Korea. It is equipped with a main spindle with 12'' power chuck (approx. 315mm) and a counter spindle with 6'' power chuck (approx. 175mm). Operated by a FANUC F0TF Plus control it comes with a turret with 12 driven tool positions (BMT65). With only around 331 run time it is in a very good condition. As additional equipment there are chip conveyor, hinged belt, upgrade chuck flushing from outside for main spindle and Dormatec AF-30 P extraction unit available. For full technical details see original order confirmation (German) as PDF attached.
Resumen
- marca: DN SOLUTIONS
- año: 2021
- MODELO: Puma 2600 LSYB II
- horas de producción: 331
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Centro de torneado y fresado
- Marca de unidad de control: FANUC
Información técnica - DN SOLUTIONS Puma 2600 LSYB II
Unidad de Control
- Marca del control: FANUC
- Modelo del control: F0TF Plus
Recorrido
- Eje B máximo: 1350°
- Recorrido eje X: 260 mm
- Recorrido eje Y: 105 mm
- Recorrido eje Z: 1350 mm
Información adicional
Machine Benefits
Qualitative Machine Benefits
- Automatic tool measurement
- Electrical bar feeder
- Tool load monitoring system (dtmt)
- Chuck flushing from outside for main spindle
- Programmable clamping pressure
- Operation: 51 days, 20 hours, 6 min // run time: 331h 11m 5s
Technical Machine Benefits
- C1/c2 axis 0. 001°
- Main spindle with 12" power chuck (approx. 315mm)
- Counter spindle with 6"" power chuck (approx. 175mm)
- Bar capacity main spindle 102m // bar passage counter spindle 60m
- Turret with 12 driven tool positions bmt 65
- 3 jaw power chuck for counter spindle size: 210mm
- Hardened top jaws
- Pressure increase to approx. 5 bar
- Cooling through the counter spindle for workpiece ejector by coolant
- Workpiece ejector // oil skimmer
Extra Information
Additional tool package (upon request): 2x Eppinger Preci-Flex 135305 Tool holder for driven tools // 2x Eppinger Preci-Flex 134826-9 Tool holder for driven tools // 2x WTO solid drill/drill rod holder Ø40 // Comprehensive jaw set.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
