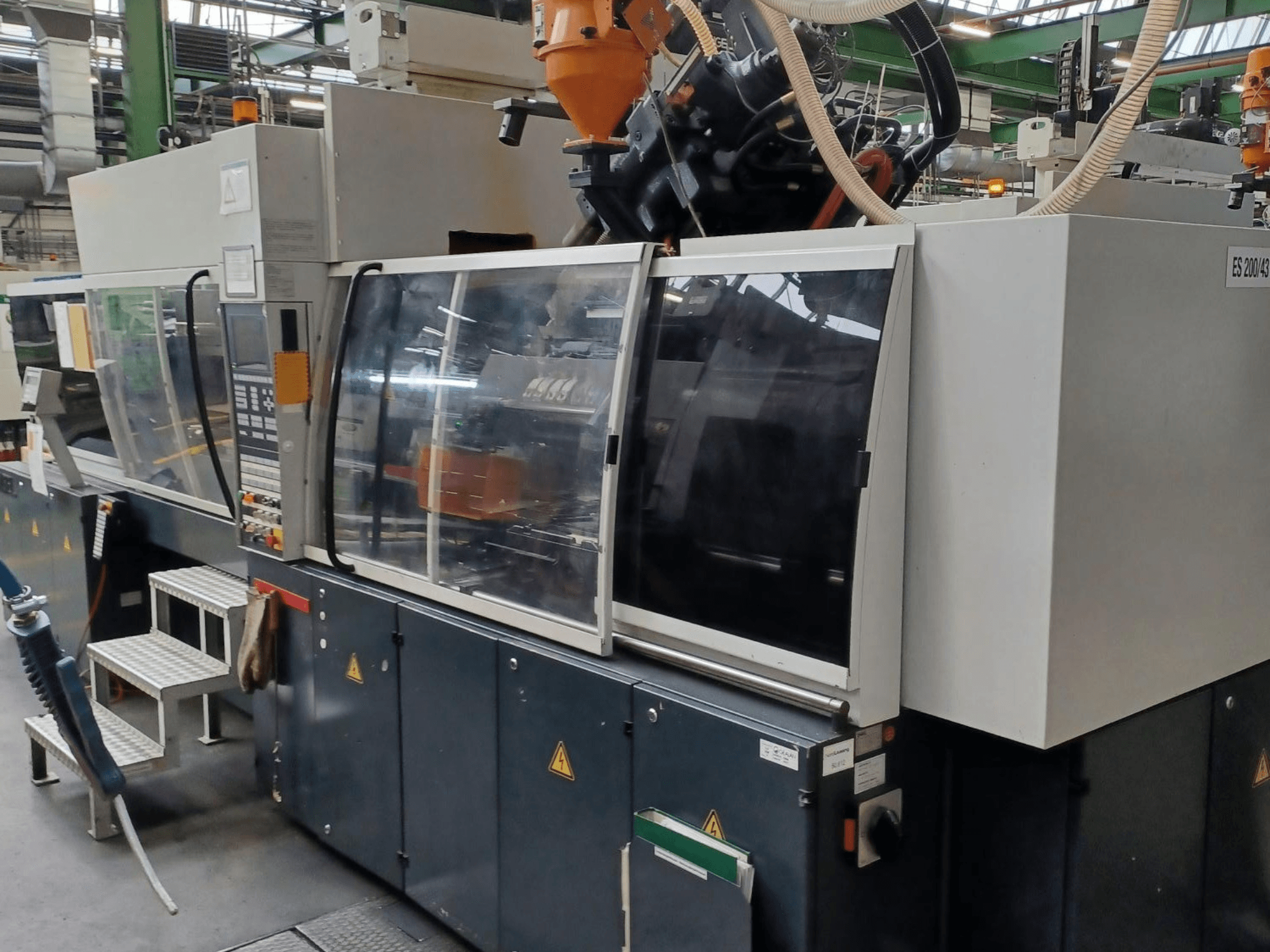

Engel - ES650H/200W-200HL-2F DE-INJ-ENG-2001-00005

• Clamping unit

  • Mold weight (WZ): 1500 kg

  • Total moving weight: 3000 kg

  • Minimum mold height: 550 mm

  • Mold opening stroke: 700 mm

  • Tie-bar distance (H × V): 920 × 750 mm

  • Platen size: 1250 mm

  • Ejector stroke: 150 mm

  • Ejector force: 61 kN

  • Centering ring diameter A-side: 110 mm

  • Centering ring diameter B-side: 90 mm

  • Mold locking system: Hydraulic / Pneumatic

  • Core pull control: Yes

  • Number of cores: 4 (A-side)

  • Rotary table control: Yes

  • Index plate control: Yes

• Injection unit 1 (Main) – Type 650H

  • Max. shot volume: 200 cm³

  • Stroke volume: 251 cm³

  • Screw diameter: 40 mm

  • L/D ratio: 20

  • Screw speed: 290 rpm

  • Injection pressure: 1930 bar

  • Injection rate: 142 g/s

  • Shot weight (PS): 216 g

  • Plasticizing rate: 26 g/s

  • Nozzle orifice: 15 mm

  • Pump motor: 30 / 12.3 kW

• Injection unit 2 (Secondary) – Type 200W

  • Max. shot volume: 140 cm³

  • Stroke volume: 69 cm³

  • Screw diameter: 25 mm

  • L/D ratio: 24

  • Screw speed: 480 rpm

  • Injection pressure: 2000 bar

  • Injection rate: 104 g/s

  • Shot weight (PS): 60 g

  • Plasticizing rate: 12 g/s

  • Nozzle orifice: 15 mm

  • Pump motor: ~6.8 kW

• Machine axes travel

  • X-axis (injection unit): 500 mm

  • Y-axis (rotary table / mold carrier): 1000 mm

  • Z-axis (clamping unit): 1400 mm

• Equipment and options (machine-integrated)

  • SPC / Process control: Yes

  • Pressure interface: Yes

  • Second injection barrel: Yes

  • Mold monitoring: No

  • Cavity pressure sensor: p-θ-t-θ (Priam)

  • Hot runner control: 16 zones

  • Filter dryer: No

  • Special programs: Yes

  • Special option: GealanXcomp

  • Automation: No

• Condition

  • Well-maintained and serviced

Additional equipment

• Engel Linear Take-out Robot ERC 23/1-E (included)
