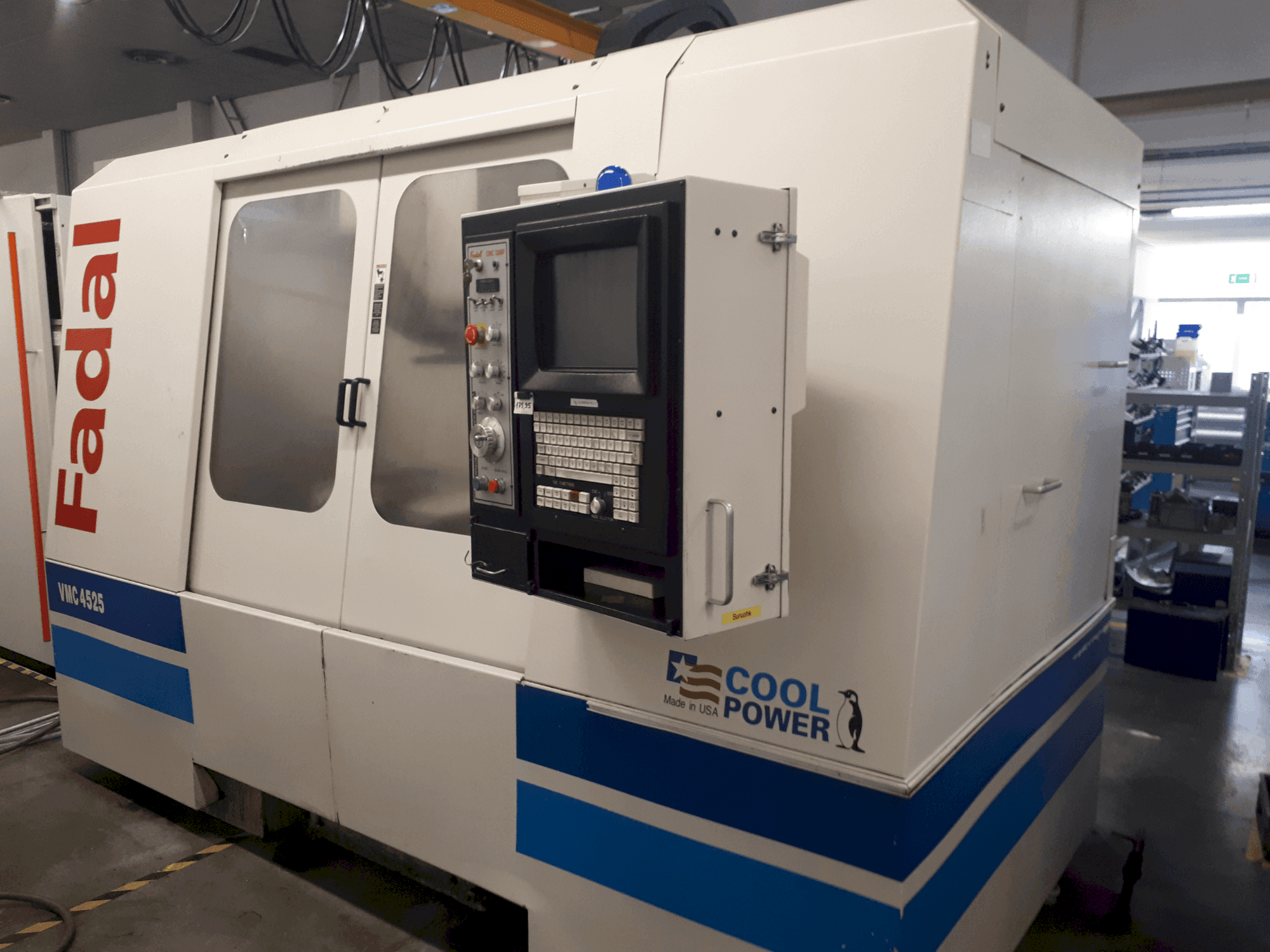

FADAL - VMC4525 EE-MIL-FAD-2000-00001

Table size: 1,359 × 635 mm

Floor to table height: 787 mm

T-slots: 5 × 18 mm, 125 mm spacing

Spindle nose to table: 102–610 mm

Spindle center to column ways: 708 mm

Spindle orientation: Electromechanical

Spindle motor: 16.8 kW (22.5 HP), 2-speed vector drive

Optional high-torque motor: 22.4 kW (30 HP), 270 ft-lbs torque

Torque: 300 Nm (standard) / 375 Nm (optional)

Axis drive motors (X/Y/Z): AC, 16,903 N peak thrust

Ball screw diameter (X/Y/Z): 40 mm

Cutting feed rate: 0.25–10,160 mm/min (15,240 mm/min max @150%)

Tool changer: Dual arm, random, bi-directional

Tool magazine capacity: 24 tools

Tool change time: 1.9 s

Positioning accuracy: ±0.004 mm

Repeatability: ±0.0015 mm

Glass scales: Optional on X/Y/Z

Coolant: Spindle, headstock, and ballscrews cooled

Air requirement: 5.5 bar (120 psi, 15 scfm)

Electrical requirement: 230 VAC, 40/60 A (or 480 VAC, 20/25 A)
