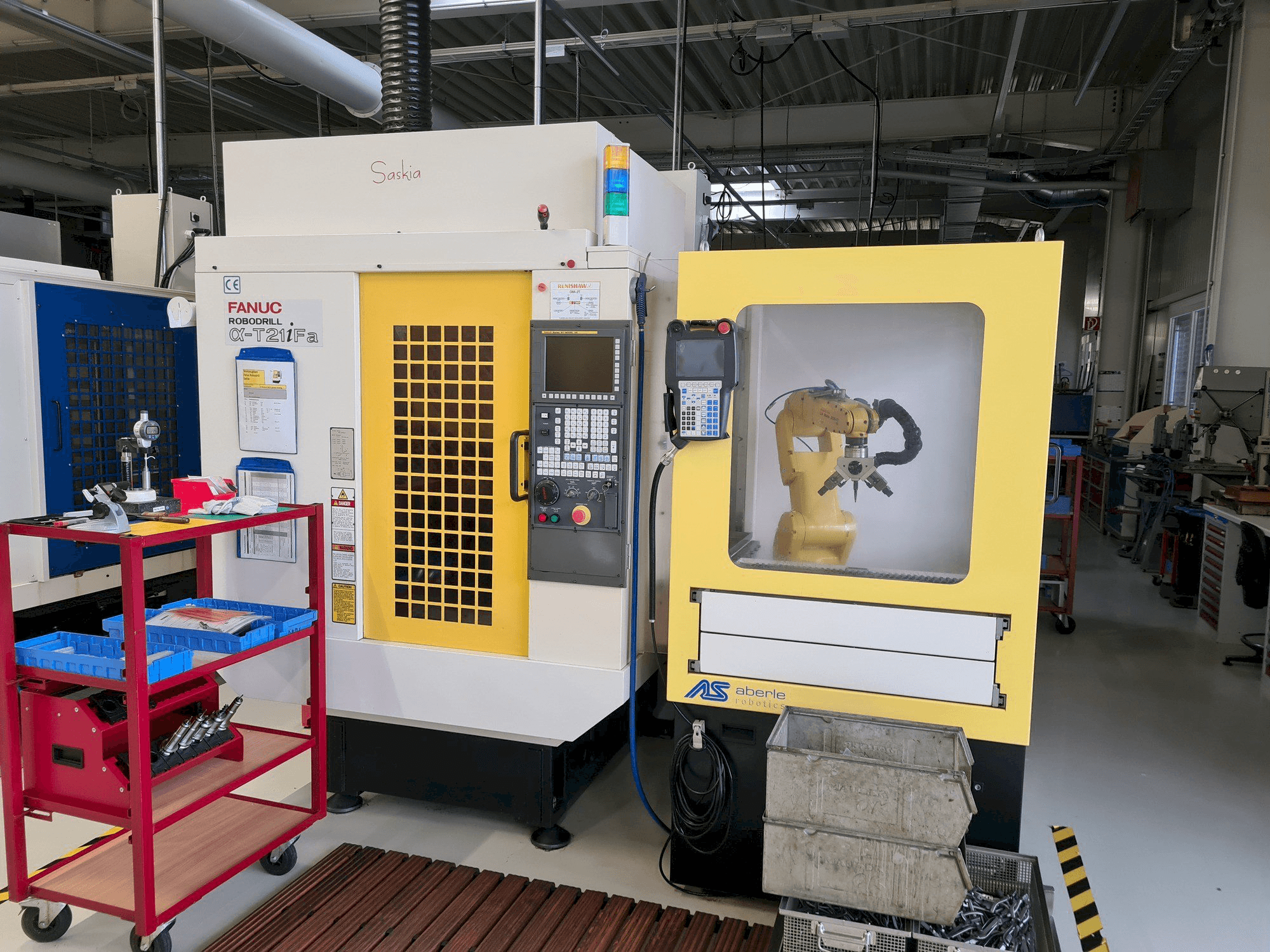

FANUC - Robodrill ALPHA T21iFADE-MIL-FAN-2011-00001

Machine Benefits

Qualitative Machine Benefits

• Memory 512 kb / 1280 m, 1000 registerable programmes
• 48 additional workpiece, coordinate systems (g54. 1), multi-step skip (g31 p1-4) al contour control 1(30 blocks preview) helical interpolation
• Coolant unit 300l with bed flushing
• 20 bar ikz pump, fanuc own torque motor with an indexing - indexing speed of 0. 28 sec. At 180° - max. Max. Speed 200 rpm. (4th axis) rotary feed-through special 180 ar omp 40 probe
• Large coolant tank with pump for external cooling, bed flushing and ikz pump with 20 bar
• Filtration takes place via plug-in sieves andmahle slotted filters
• The system is not a coolant cleaning system.
• Chips fall into trough excl. Conveyor etc.
• Splash 1 spraying device splash" rinsing gun, renishaw workpiece measuring system fanuc rotary axis ddr260ib
• Permanently installed in 300 | tank flushing gun with its own pump output max. 4bar (at 20l/min) tool breakage detection tool breakage detection system incl. Accessories tactile, renishaw

Technical Machine Benefits

• Machine comes with robot cell and robot
• Acceleration in x/ y/ z 1. 5 g, rapid traverse speed 54000 mm/min
• Bbt30 big plus tool holder
• Machine tool in cast iron construction controlled axes
• Axis drives fanuc alpha i. Ac servo motors
• Universal clamping table
• Interior lighting
• Stand elevation 100 mm
• Automatic vogel "centralised oil lubrication" nano-interpolation of the servo axes
• Thermal compensation (xyz axis)
