FERROMATIK - Magna T (MTs) - 275DE-INJ-FER-2018-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Maquinaria de procesamiento de plástico
- Ferromatik Milacron Magna T (MTs) - 275 Injection Moulding Machine

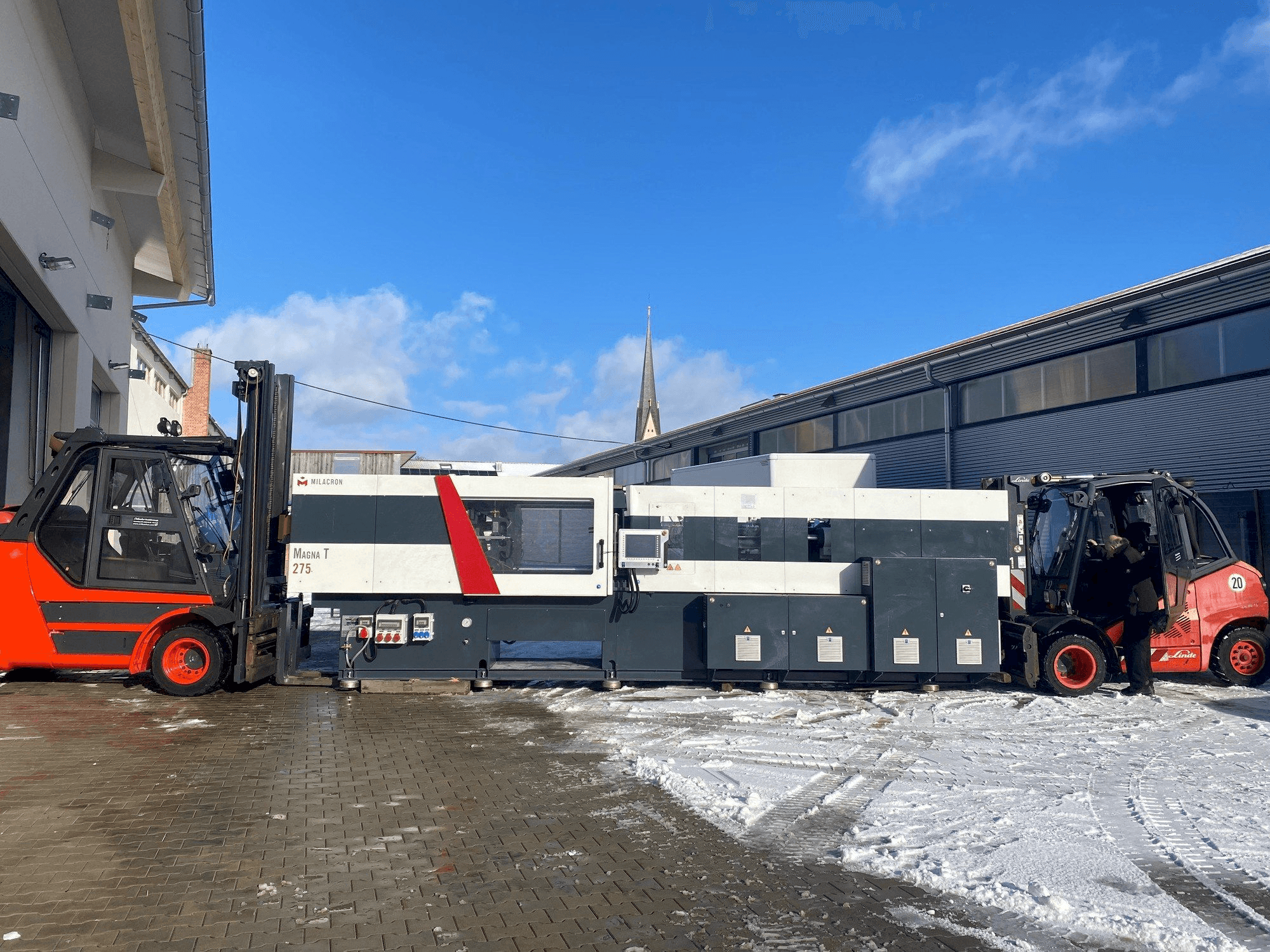

This FERROMATIK Magna T (MTs) - 275 Injection Moulding Machine was made in the year 2018. It has a clamping force of 2750 kN and a column spacing of 660 x 660 mm. Max. plate distance is 1560 mm and mould installation height 400 - 950 mm. The opening stroke is at 610 mm. This injection moulding machine is equipped with a ENDURA touch control and a 1540 injection unit with 50mm screw diameter. It comes with 2x hydraulic core pullers (2-fold). See full original tech specs as PDF (DE) attached. Automation solution can be purchased additionally upon request.
Resumen
- marca: FERROMATIK
- año: 2018
- MODELO: Magna T (MTs) - 275
- tipo de aplicación: Moldeo por inyección
- Ubicación: Alemania
- tipo de máquina: Máquina de moldeo por inyección hidráulica
Información técnica - FERROMATIK Magna T (MTs) - 275
Dimensiones
- Peso de la máquina: 14680 kg
Especificación Técnica
- Fuerza de cierre: 2750 kN
- Diámetro de tornillo: 50 mm
Información adicional
Machine Benefits
Qualitative Machine Benefits
- Ejector or core pull can be moved in parallel via closing movement via separate pump
- Control system siemens s7 / kuka
- Injection unit 1540 / screw diameter 50mm / standard 3-zone screws aps
- Bimetallic screw cylinder type x 102 / hydraulic core pull 2-fold / cooling water battery with 10 control circuits
- Sar automation: dimensions 6000 x 5000 x 3000 mm
- Provision of inserts bushing diameter 11x6mm
- Combined provision of inserts diameter 8x3mm and 6x3mm
- Marking laser for dmc
- Component slide laser / sprue funnel / qs drawer
- Stack conveyor system with lifting unit : conveyor belt 1: length 3200mm / width 1300mm / speed 6m/min // conveyor belt 2: length 2400mm / width 1300mm / speed 6m/min
Technical Machine Benefits
- Injection unit 1540 in horizontal machine length axis with screw diameter 50 mm
- 2x hydraulic core pullers (2-fold)
- Thermoplastic equipment: bimetallic screw cylinder type: x 102
- Standard 3-zone screw aps with improved abrasive wear protection
- Cooling water battery with 10 control circuits
- Clamping force 2750 kn / plate distance max. 1580 mm
- Clear column distance 660 x 660 mm / mold installation height minimum 400 max 950 mm
- Mold opening stroke 610 mm / robust mono toggle lever for 50 tons and 80 tons
- Lifting unit: length 1000mm / width 1300mm / speed 6m/min / stroke approx. 450mm max. / load 150lg lifting / speed 2,5/min
Extra Information
Scope of delivery is machine without automation. The automation solution is not included in the price but is for sale at additional cost.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
