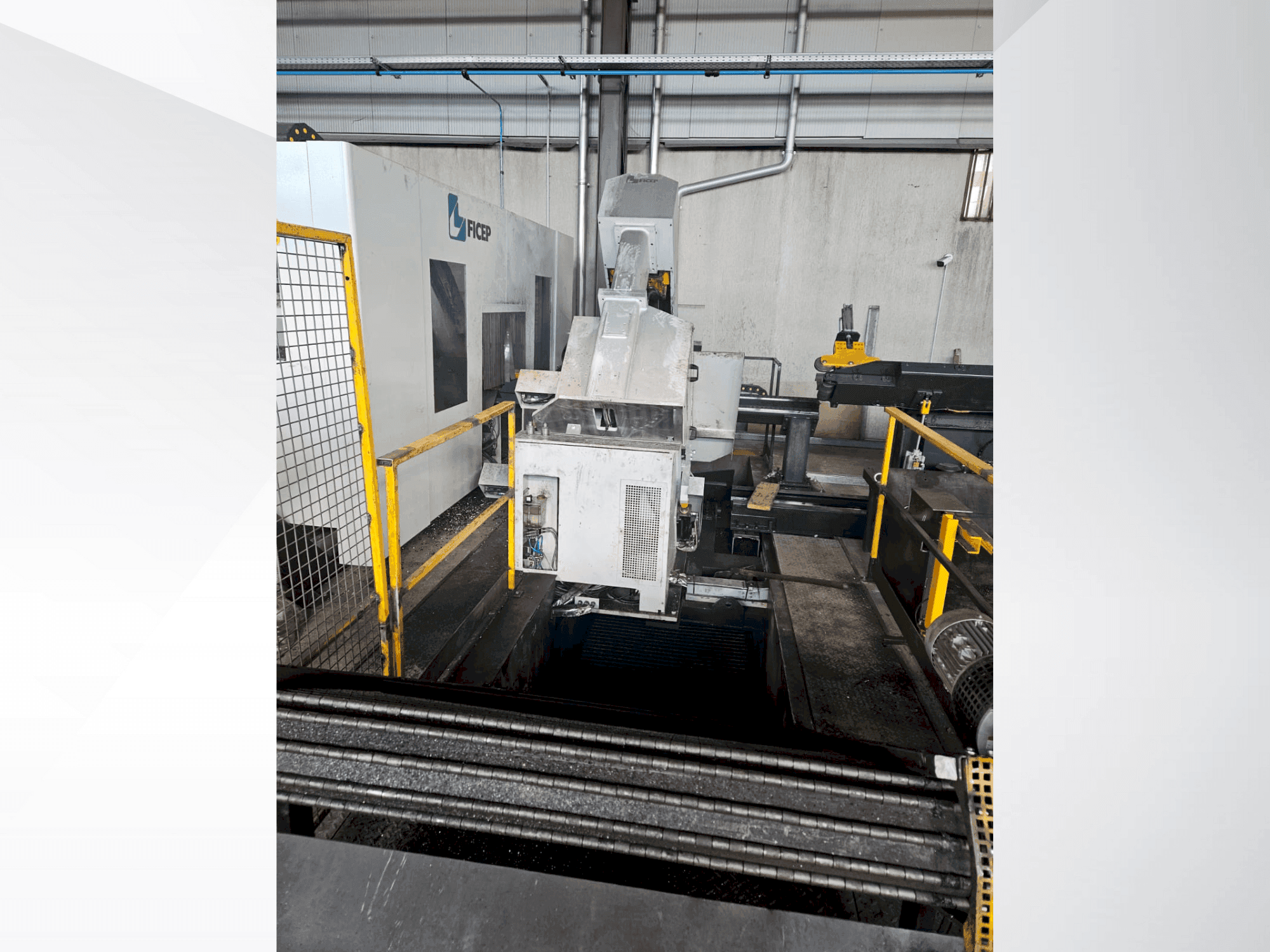

FICEP - D50FIT-OTH-FIC-2022-00001

Additional equipment

• Powered support structure/ Roller table system with detection device / Automatic loading/unloading / Chip conveyor / Beveling/milling equipment / Circular saw / Short parts unloading conveyor for saw
• Hydraulic power unit / Pneumatic system
• Drilling unit with 8-position tool changer / Writing marker unit: MKT 38 N (38 positions + 1 character set)

Machine Benefits

Technical Machine Benefits

• Min. Profile length: 2500 mm / max. Profile length: 12000 mm
• Number of drilling heads (standard): 1 / max. Drilling diameter: 40 mm (optional 50 mm) / max. Drilling thickness: 40 mm / tool changer: 8 positions (iso40 tool holders)
• Spindle motor power (s1): 19 kw / spindle motor power (s6-60%): 27 kw / spindle feed rate: 40–400 mm/min / spindle speed: 180–3500 rpm
• Max. Drilling diameter: 40 mm (optional 50 mm) / max. Drilling thickness: 40 mm
• Tool changer: 8 positions (iso40 tool holders) / spindle feed rate: 60–400 mm/min / spindle speed: 180–3500 rpm
• Blade motor power: 18 kw / cutting speed: 80–180 m/min
• Max. Dimensions of flat bars: 500 × 25 mm / max. Dimensions of angles: 180 × 180 × 18 mm / max. Dimensions of upn profiles: upn 300 / max. Dimensions of square tubes: 160 × 160 mm / max. Dimensions of rectangular tubes: 300 × 100 mm
• Tool changer: 8 positions (iso40 tool holders)
• Max. Feed speed: 50 m/min / infeed table for 12 m bars / infeed transfer table with trolleys (12 m bars) / outfeed table for 12 m bars / outfeed transfer table with trolleys (12 m bars) / powered arms: 11 / auxiliary arms: 11
• Zero reference auto-correction system
