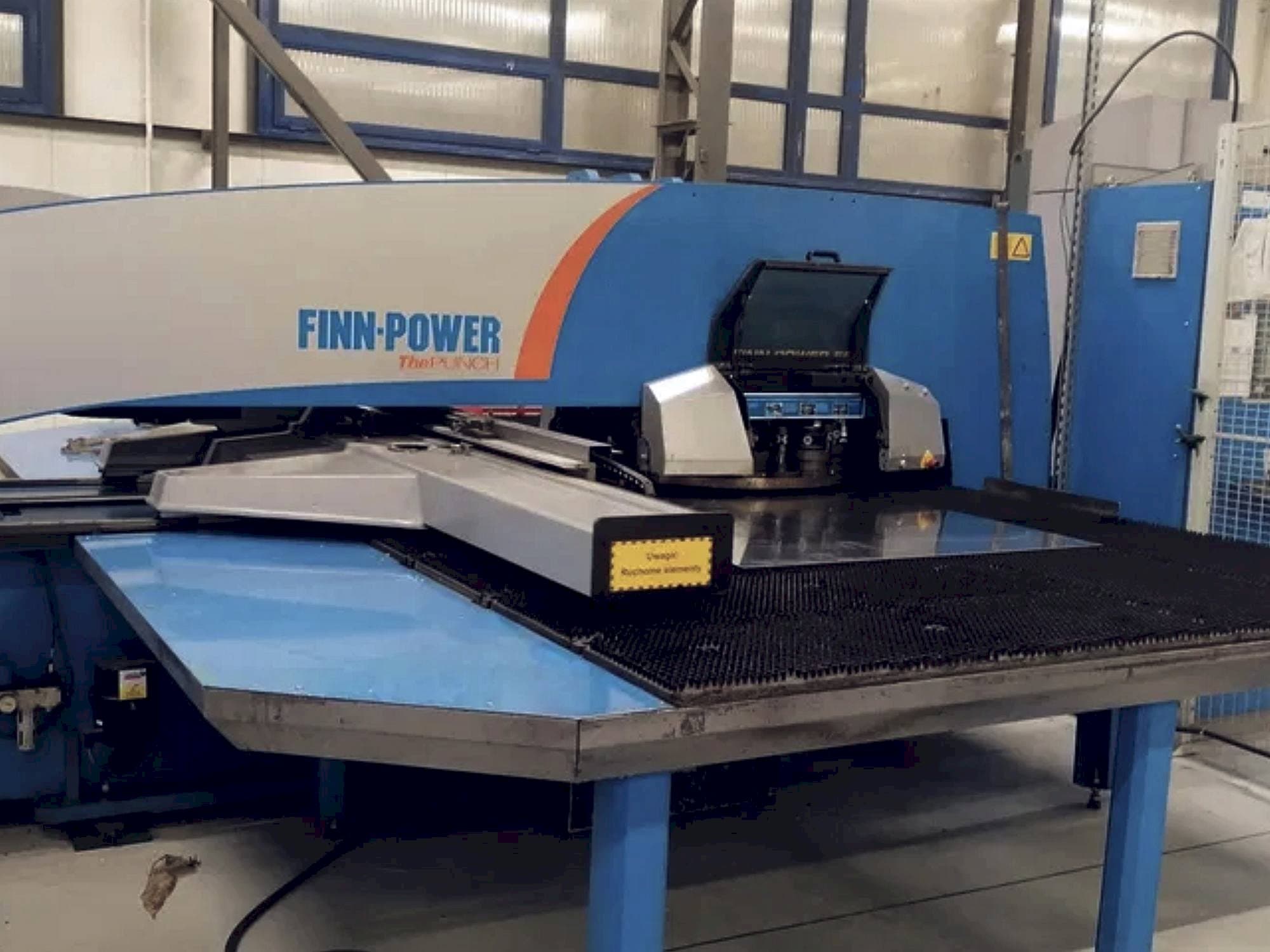

Finn-Power - E5xPL-PUN-FIN-2010-00001

Additional equipment

• Third (3rd) clamp
• 5 indexing tools (size: 2xC, 2xB, 1xD)
• Punching scrap removal directly to the box next to the machine
• Foot switch for sheet clamp closing
• Sheet distortion sensors
• Automatic individual clamp move
• Automatic closing clamps clamping
• 1 station for Multitool 24-8

Machine Benefits

Qualitative Machine Benefits

• Ram speed: programmable
• Punch diameter max. : 89 mm
• Turret rotation 24 r/min
• Tools type: thick turret
• Tool change time: 1-3 sec

Technical Machine Benefits

• Sheet size x x y, max. : 2530 mm x 1270 mm ,sheet size x x y, min. : 300 mm x 100 mm ,sheet weight max. : 200 kg
• X traverse length: 2584 mm, x traverse axis speed, max. : 90 m/min
• Y traverse, length: 1317 mm, y traverse axis speed, max. : 60 m/min
• Sheet positioning speed 108 m/min
• Marking speed: 1800 1/min
• Nibbling speed (1 mm): 700 1/min
• Tool rotation 133 rpm
• Punching speed 700 hits/min
• Punch stroke: servo electric
• Stroke depth: numerically adjustable, stroke length: programmable

Extra Information

Machine in good condition.

Machine History

Material thickness

8 mm
