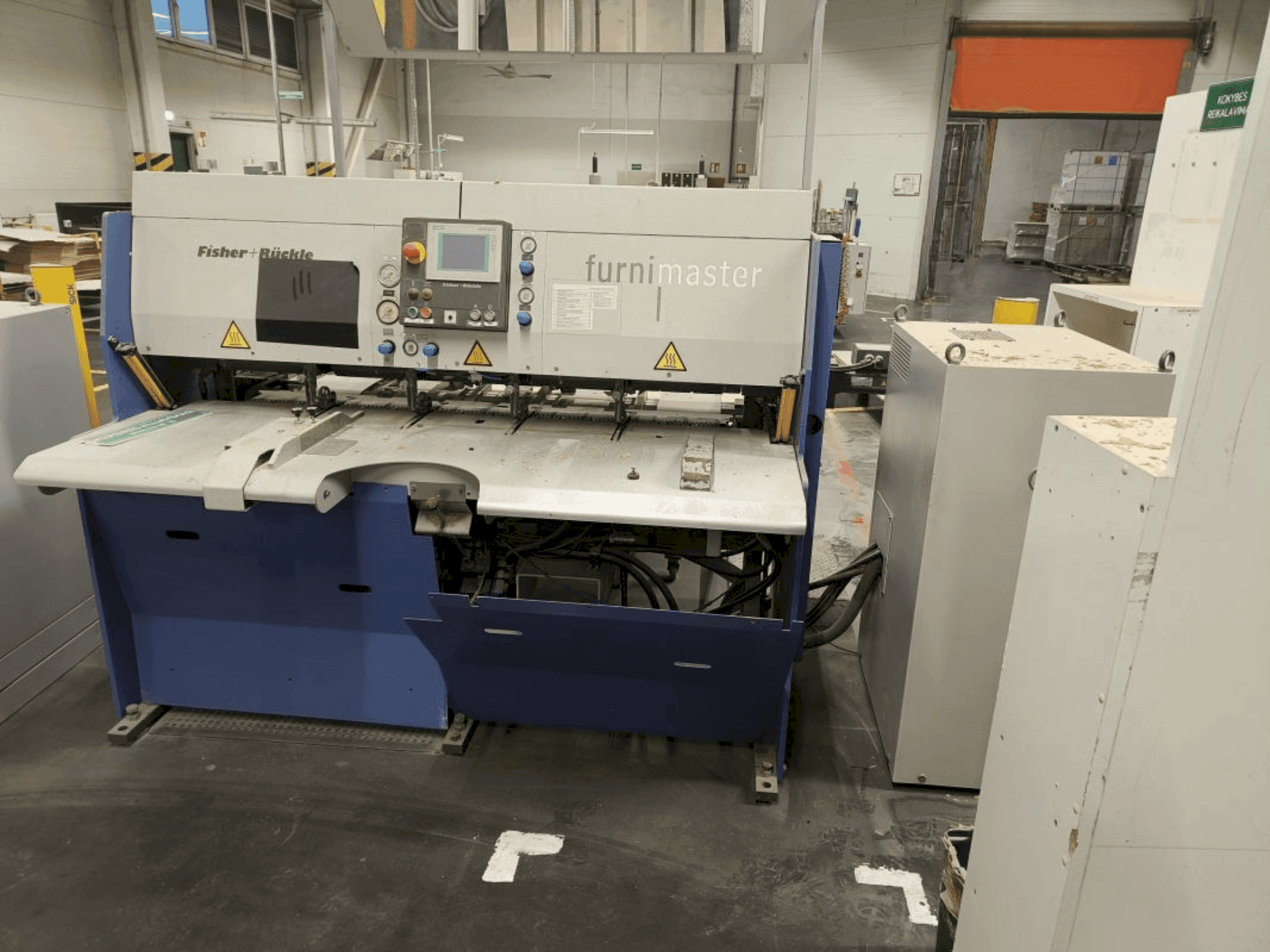

FISCHER & RüCKLE - FZR15 / DAR 22LT-VEN-FIS-2009-00001

Additional equipment

• Feeding device for efficient and comfortable semi-automatic feeding of veneer strips.
• Panel automatic for component-matched faces with pre-sorted components and preselected number of veneer strips.

Machine Benefits

Technical Machine Benefits

• Veneer strip lengths (grain direction): 350 - 1500 mm
• Veneer strip widths (cross grain direction): 50 - 500 mm
• Veneer face width (cross grain direction): minimum 260 mm
• Veneer strip thickness: 0. 3 - 1. 5 mm

Extra Information

Features Perfect splicing of sliced or rotary cut veneer of all species, even with wavy or buckled veneer. Unique, proven horizontal pressing system resulting in fully closed, tight glue joints. Solid, strong construction for high durability, reliable and fail-safe operation. Ease of operation due to screen panel, clearly arranged icons, separated pressure gauges with direct access, etc. Liftable pressure beam for fast and easy access to the heating plates for cleaning. Few wearing parts, low costs of services and maintenance. Clipper For clipping to pre-set format width (in cross grain direction) directly after splicing. Straight alignment of the veneer must be observed and if necessary realigned by the push of a button. Direct Stacking Device DAR-22 For discharging and stacking the veneer face directly after splicing or clipping. The spliced faces are gently discharged and stacked without any mechanical impact on this compact direct stacking device. Minimum Veneer Face Lengths (Grain Direction): 350 - 1500 mm Veneer Face Widths (Cross Grain Direction): 260 - 500 - 2200 mm Stack unloading from left, right, or rear side. Maximum Stack Height: 500 mm Note: The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
