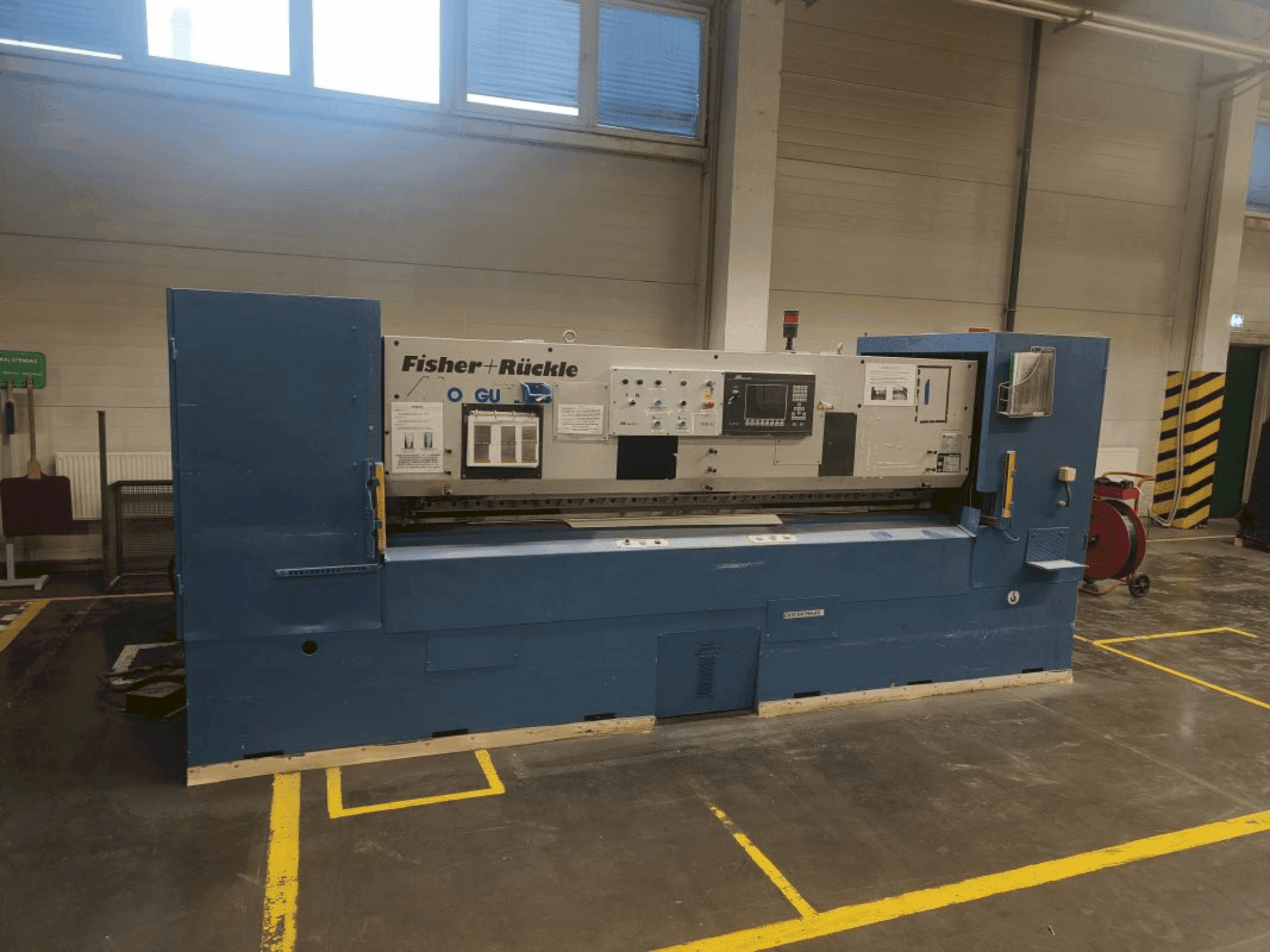

FISCHER & RüCKLE - Monguzzi AFD 35 / 2600LT-VEN-FIS-2006-00001

Machine Benefits

Technical Machine Benefits

• Max. Cutting length: 2600 mm
• Cutting widths: 45 - 350 mm
• Pressure beam opening: 100 mm
• Pressure beam width: 350 mm
• Parallel fence with digital read-out: 25 - 1000 mm
• Cutting angle approx. : 45°
• Movable laser lines: for optimizing veneer yield. The manually operated laser line for the position of the front blade is quickly set. The veneer width is transferred to the computer at the push of a button, and the cutting process starts automatically.

Extra Information

Features: Solid, heavy duty built with generously-dimensioned pressure beam and cutting table to absorb the high clamping and shearing forces. Unique system with fixed, solid cutting table and movable pressure beam. Laser lights for exact visual identification of cutting lines. Quality hydraulic system with large oil tank. Electric-motor-driven parallel stop with rapid adjustment. Industrial computer based on Windows operating system, wide screen and keyboard. Various modes of operation and storable program operations. Extensive collection of production data. Central lubrication unit.
