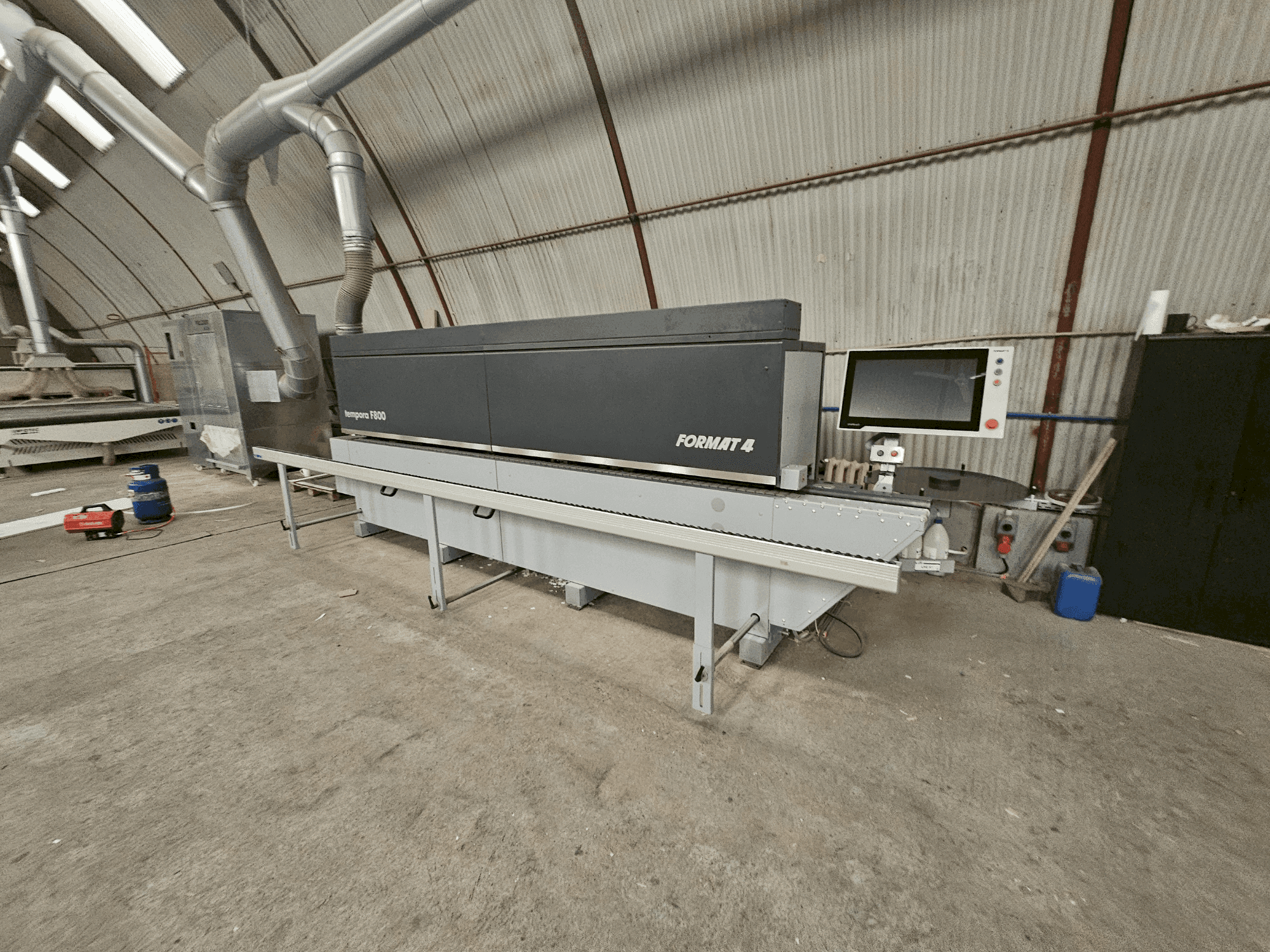

FORMAT4 - Tempora F800 60.12/2 EPL-EDG-FOR-2022-00001

Additional equipment

• Control Panel: Smartouch 21" Control System: E-motion // control system with motorized adjustment (accuracy 0.01 mm)
• Chain Feed System: With automatic lubrication
• Top Pressure Beam: Motorized height adjustment
• Pre-milling Unit: 2 x 2.2 kW motors, diamond cutters, up to 3 mm removal
• Glue Application System: Compatible with EVA and PUR, fast heat-up (8 min)
• Additional Glue Tank: For fast glue change
• Edge Pressure Unit: 1 driven + 2 passive rollers, pneumatic control
• Trimming Unit: 2 motors (0.5 kW), adjustable 0–15°
• Multi-functional Trimming Unit: 2 motors, 0.75 kW, top and bottom
• Corner Rounding Unit: Edge thickness 0.4 – 3 mm, panel height 10 – 60 mm, 2 independent motors, 12000 rpm

Machine Benefits

Technical Machine Benefits

• Feed speed: 12 m/min (optional: 20 m/min)
• Min. Panel length: 140 mm
• Min. Panel width: 70 mm
• Panel height range: 8 – 60 mm
• Edge thickness: 0. 4 – 12 mm
• Glue pot capacity: 1. 5 kg
• Guillotine for coil edge thickness: 0. 4 – 3 mm
• Electric load: 3x 400v, 50 hz

Extra Information

Additional Equipment Profile Scraper Unit: Motorized and pneumatically retractable Buffing Unit: Top and bottom Antistatic, Cleaning, and Release Spray Systems Flat Scraper Unit: Pneumatically controlled Infrared Edge Detection System Edge Magazine: For strips up to 120 mm wide Rotary Edge Reel Holder: Ø 770 mm
