- ➤ Used Goodway GLS-150 For Sale | gindumac.com

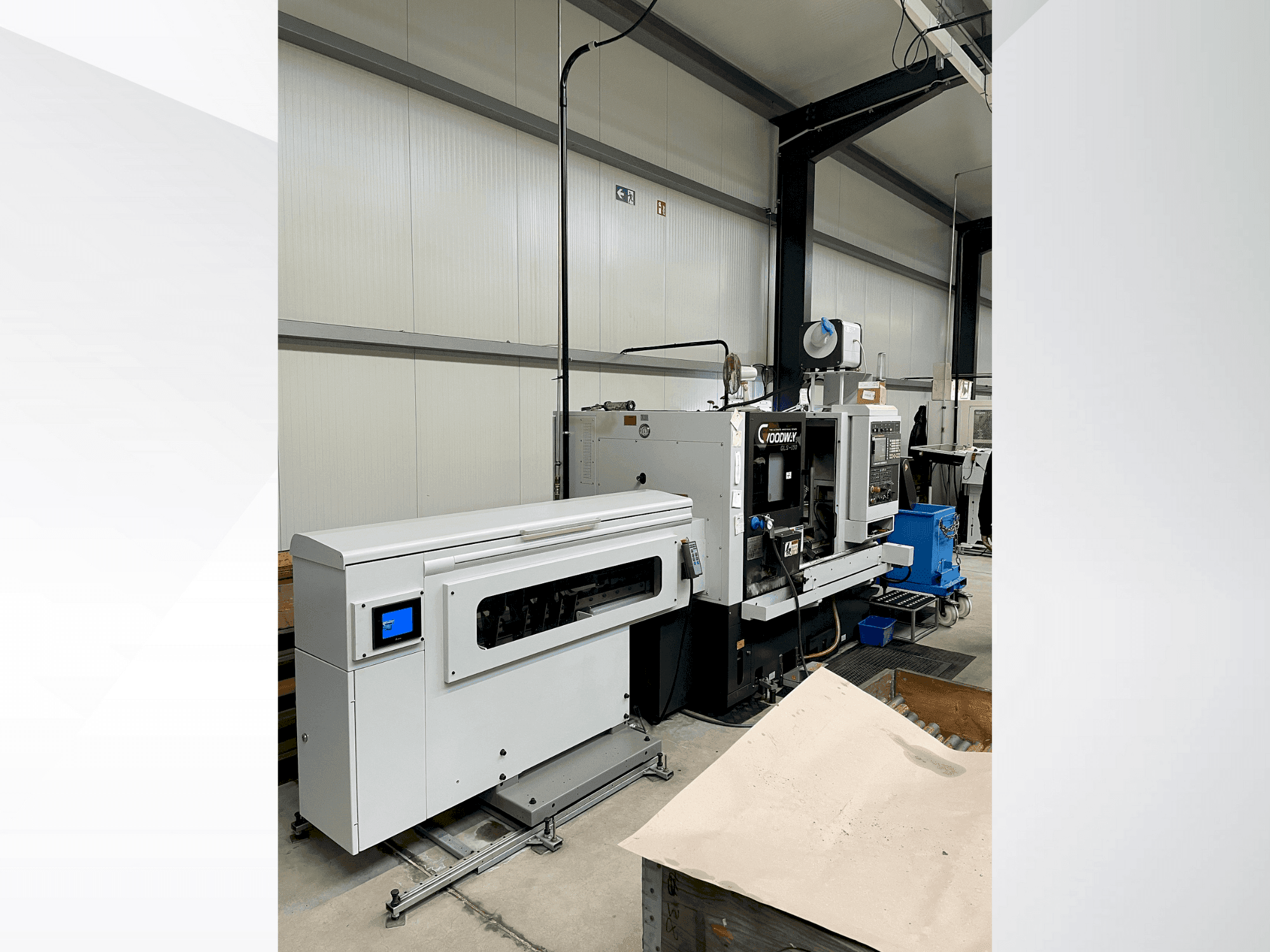

This Goodway GLS-150 was manufactured in 2018. A robust horizontal turning machine featuring a FANUC 01-T control system with a 10.4" LCD and Manual Guide functionality. It boasts a spindle speed of 60-6000 RPM and a maximum bar capacity of 51 mm. Equipped with a high-precision linear guide on all axes, a 12-station turret, and a reinforced coolant pump for enhanced performance. If you are looking to get high-quality turning capabilities consider the Goodway GLS-150 machine we have for sale. Contact us for more information.
Resumen
- marca: Goodway
- año: 2018
- MODELO: GLS-150
- tipo de aplicación: Torneado
- Ubicación: Alemania
- tipo de máquina: Tornos horizontales
Información técnica - Goodway GLS-150
Especificación Técnica
- Potencia del husillo: 11 kW
- Velocidad del husillo: 6000 RPM
Información adicional
Additional equipment
- Turret with Direct Mount (12 stations)
- High-Precision Linear Guides on All Axes
- Coolant System
- Hydraulic System
- Full Enclosure
- Automatic Lubrication System
- Signal Lamp (3-color)
- Work Area Lighting
- Automatic Machine Shutdown (via M-Code)
- Automatic Chuck Operation
Machine Benefits
Qualitative Machine Benefits
- Prepared for a live center with mk4 mount
- Tool monitoring system: load monitoring
- Control cabinet with heat exchanger
- Foundation and leveling accessories
- Set of auxiliary tools
- Machine documentation
- Ce certification
- Renishaw-hpra measuring arm
- Stable 30° slant bed design for versatile, precise, and cost-effective machining solutions.
- Machine connection data: compatible with clamping device 2703 / 0007, chuck connection to standard spindle, spindle standard: din 55026, short taper size 5/6
Technical Machine Benefits
- Max turning length: 500 mm
- Pinole diameter: 70 mm
- Programmable quill travel: 150 mm
- Tailstock travel: 290 mm
- Reinforced coolant pump (pressure: 20 bar)
- Parts catcher for main spindle
- Transport conveyor for finished parts
- 8 additional m-functions
- Interface for bar loader
- Bar loader: barload bk105
Extra Information
Machine still under power
