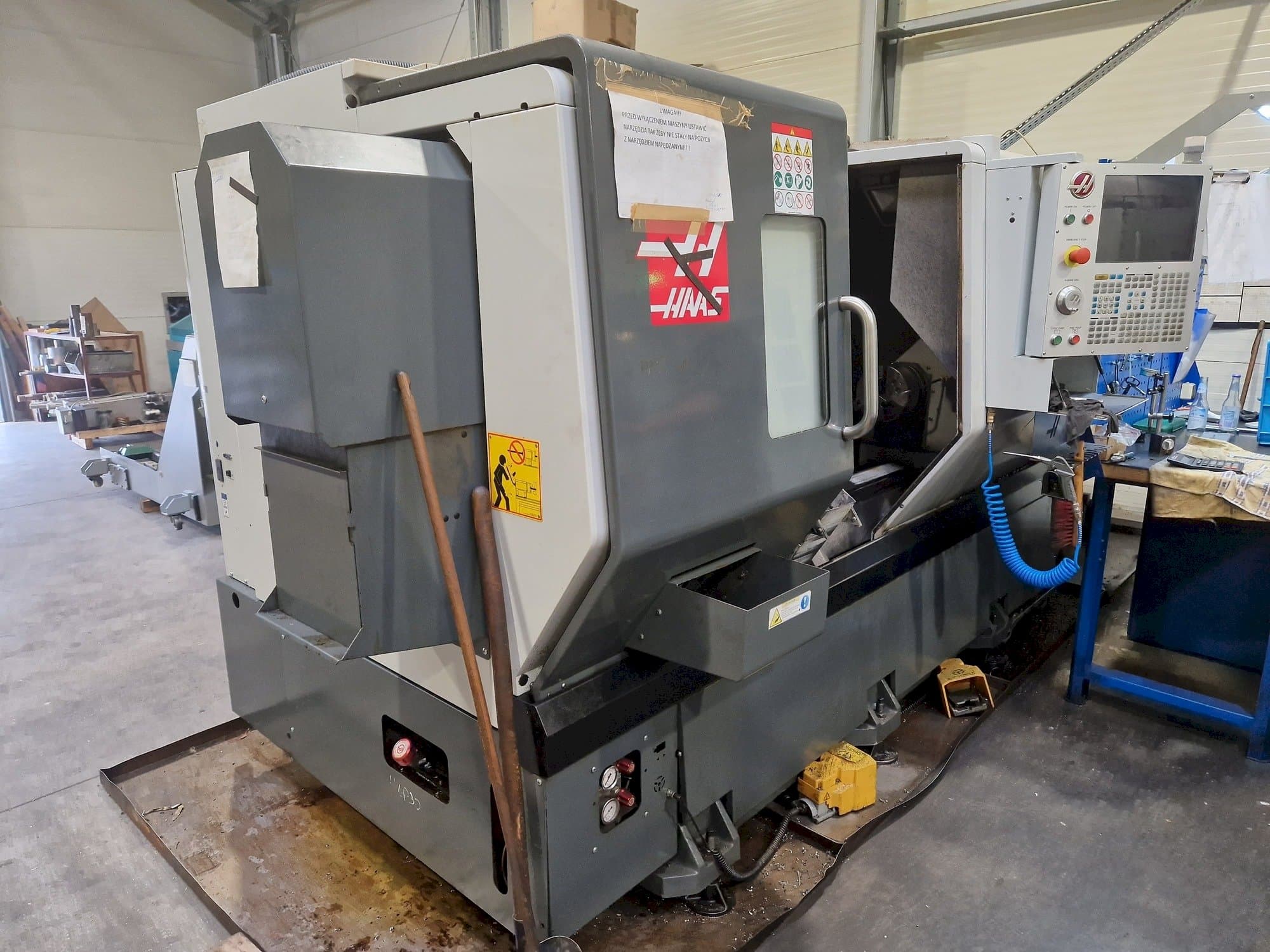

- HAAS DS-30Y (2018) lathe
This HAAS DS-30Y (2018) lathe was made in the year 2018 in the United States. It is equipped with a Haas control unit. The machine has a 2 spindle with a spindle speed of 4800 rpm. In total it operated 10635 power on hours and 3608 cutting hours.
Resumen
- marca: HAAS
- año: 2018
- MODELO: DS-30Y
- horas de producción: 3608
- tipo de aplicación: Torneado
- Ubicación: Polonia
- tipo de máquina: Centro de torneado y fresado
- Marca de unidad de control: HAAS
Información técnica - HAAS DS-30Y
Unidad de Control
- Marca del control: HAAS
Dimensiones
- Profundidad de la máquina: 2290 mm
- Altura de la máquina: 2340 mm
Recorrido
- Recorrido eje X: 318 mm
- Recorrido eje Y: 50 mm
- Recorrido eje Z: 584 mm
Especificación Técnica
- Potencia del husillo: 22.4 kW
- Velocidad del husillo: 4800 RPM
Información adicional
Additional equipment
- Driven tools (6000 min-1) with C-axis
- Measuring probe
- High-pressure cooling system (21bar)
- Bar feeder interface
- Belt chip conveyor
- IFS Vario E2000 filtration system
- Programmable workpiece pick-up system
- Equipped with 15 tool holders
Machine Benefits
Qualitative Machine Benefits
- Ds-38ss 254 mm chuck, spindle bore 76 mm, 22. 4 kw engine, speed: 4,500 rpm - pcat programmable, pneumatically operated parts catcher system, maximum part dimensions: 96 mm x 152 mm for st-20, st-25, st-30, st-35, ds-30 also in y axes
- Pcat programmable, pneumatically operated parts catcher system, maximum part dimensions: 96 mm x 152 mm for st-20, st-25, st-30, st-35, ds-30 also in y axes
- Acf additional 25 μm filtration system, indispensable for processing cast iron, aluminum, wood, and composite materials
- Hpc high-pressure coolant system, pressure up to 21 bar
- Ethernet network card
- Conveyor automatic parts ejector
- Jet actuated by the m code, air blast through the chuck
- Lt-bmt65-24 24-station bmt65 turret (24 positions indexable) instead of the standard 12-station bmt65 turret
Technical Machine Benefits
- Cross slide travel on x-axis: 318 mm - cross slide travel on y-axis: +50 mm - longitudinal slide travel on z-axis: 584 mm
- Swing diameter over cross slide: 527 mm - swing diameter over tailstock: 806 mm
- Diameter of the main spindle chuck: 210 mm - diameter of the main spindle bore: 88. 9 mm - maximum turning diameter with bar work: 51 mm - maximum turning diameter for bmt65 hybrid turret: 454
- Cnc control, 4 axes (including y axis, haas type, compatible with fanuc), memory capacity 1 mb, 15” lcd monitor with usb port
- Electronic hand wheel
- Tool holder type bmt65, with a set of standard holders, driven tools
- Hydraulic three-jaw chuck with soft jaws for main spindle, hydraulic collet chuck with soft jaws for sub-spindle
- Compensation of thermal expansion of ball screws, cabinet with double doors and windows, operation without compensation bracket, installation of air connection
- Tray with a roll-out chip conveyor, automatic central lubrication system, cabcool - cnc control panel cooling
- Lighting of the machine interior, machine documentation in english and polish, initial filling with blaser coolant
Extra Information
15 pcs of tool holders // POWER ON HOURS = 10635h // CUTTING HOURS = 3608h
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
