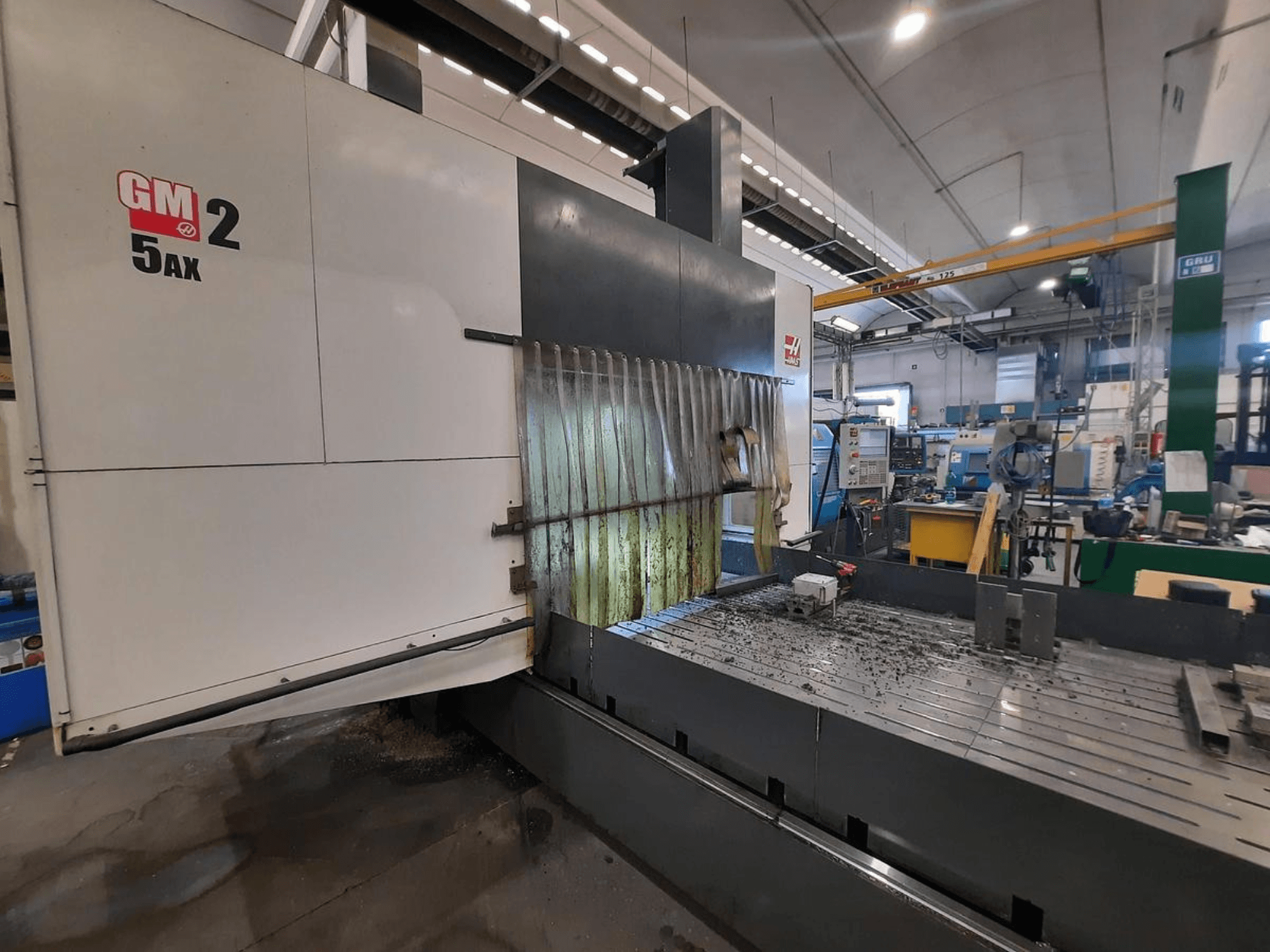

HAAS - GM-2 AXIT-MIL-HAA-2020-00003

B-axis tilt: +120° / -120°

C-axis rotation: +245° / -245°

Spindle nose to table distance (Min–Max): 127–940 mm

Maximum spindle torque: 15.3 Nm @ 7,500 rpm

Spindle taper: HSK-A63

Maximum B-axis speed: 110°/sec

Maximum C-axis speed: 200°/sec

Table length: 3,658 mm

Table width: 1,829 mm

Table thickness: 25 mm

Distance between columns: 1,905 mm

Maximum cutting speed: 12 m/min

Rapid feed (X/Y/Z): 12.0 / 48.0 / 30.0 m/min

Maximum axis thrust (X/Y/Z): 20,017 / 7,340 / 8,896 N

Tool changer type: SMTC

Tool magazine capacity: 30 + 1 positions

Maximum tool diameter in magazine: 64 mm

Maximum tool diameter without adjacent tools: 89 mm

Maximum tool length: 279 mm

Coolant tank capacity: 360 liters
