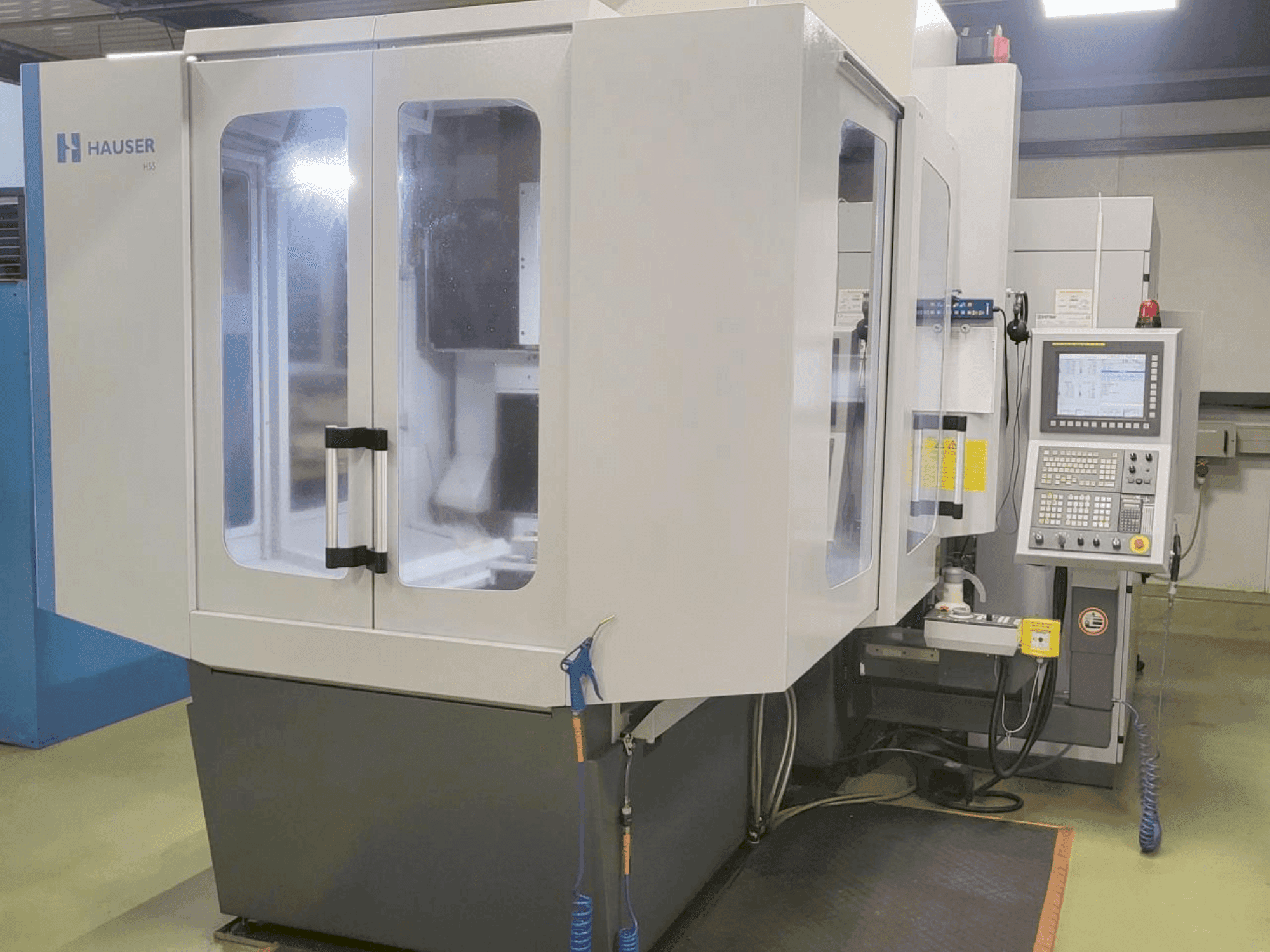

This 5-axis HAUSER KELLENBERGER H55-400 was manufactured in 2019, designed for precision internal grinding. Ideal for complex geometries, it offers advanced control for high accuracy. Consider the opportunity to buy this HAUSER KELLENBERGER H55-400 internal grinding machine. Contact us for more information.
Resumen
- marca: HAUSER
- año: 2019
- MODELO: KELLENBERGER H55-400
- tipo de aplicación: Rectificado
- Ubicación: Suiza
- tipo de máquina: Rectificadora Interna
- Marca de unidad de control: FANUC
Información técnica - HAUSER KELLENBERGER H55-400
Unidad de Control
- Marca del control: FANUC
- Modelo del control: §==I
Recorrido
- Número de ejes: 5
Información adicional
Machine Benefits
Technical Machine Benefits
- Grinding spindle (z-c-u):spindle sleeve diameter: 125 mm
- Standard speed ranges (40s motor): continuously adjustable, programmable 4000–40000 rpm
Extra Information
Workpiece Machine Capacity: X, Y axis travel: 1300 x 800 mm Vertical travel of grinding head (W axis): 635 mm Clearance between table and U-axis grinding motor mounting plate: 905 mm Clearance between table and HSK25 tool holder (70S grinding motor nose): 0–710 mm Distance between columns: 970 mm Grinding Diameters (Planetary Grinding Mode): With Ø50mm wheel (70S motor): Automatic mode (central U-axis position): max. 144 mm Semi-automatic mode (offset U-axis position): max. 234 mm With intermediate plate: max. 360 mm With Ø100mm wheel (40S motor): Automatic mode (central U-axis position): max. 194 mm Semi-automatic mode (offset U-axis position): max. 284 mm With intermediate plate: max. 360 mm Taper grinding (option): Up to 120° (divergent/convergent) Table Usable surface: 1440 x 860 mm Movement Feed Rates: X/Y axis slides: Working feed: 0–2000 mm/min Rapid traverse: 4000 mm/min W axis (vertical slide): Working feed: 0–2000 mm/min Rapid traverse: 4000 mm/min
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
