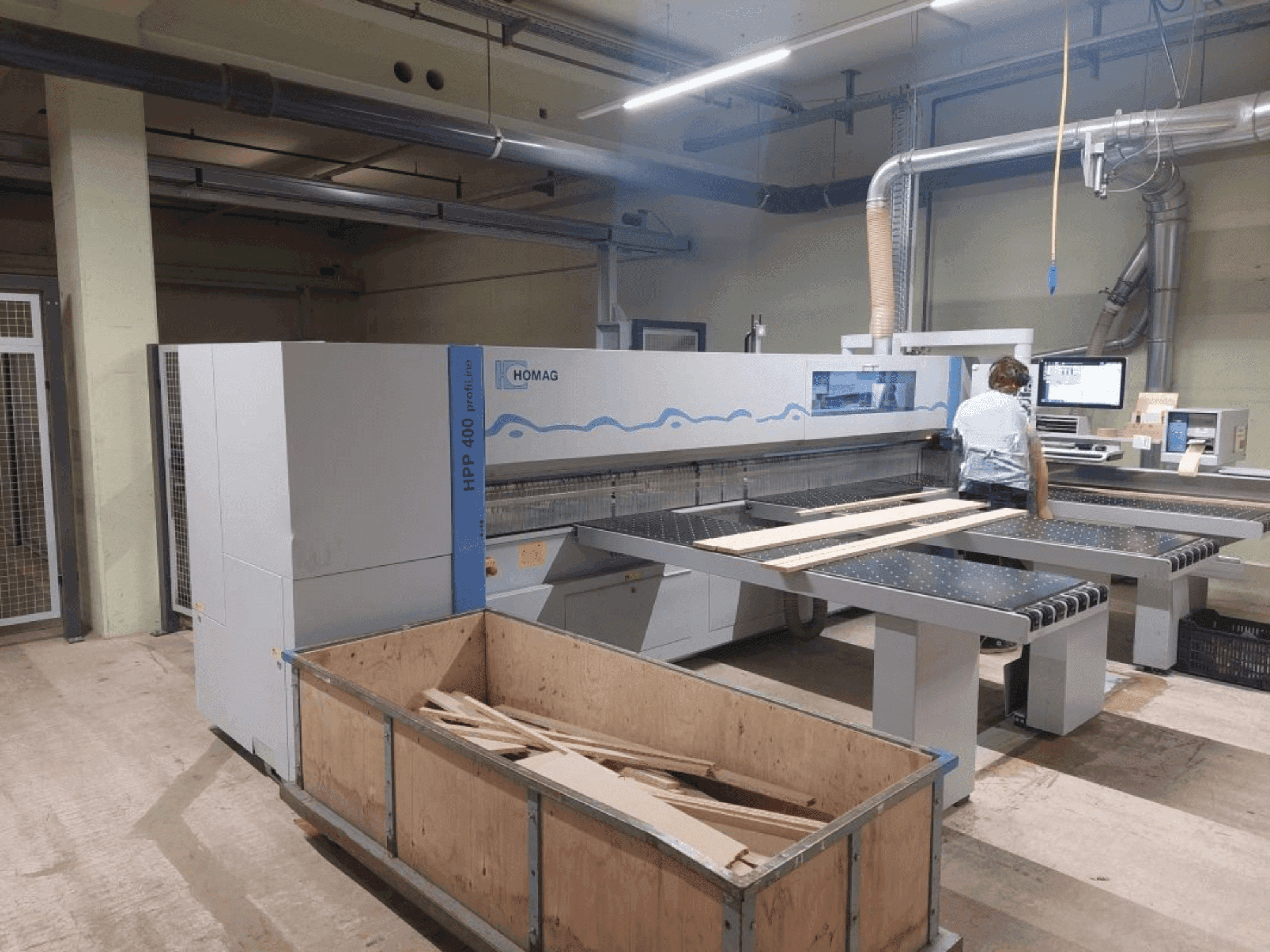

HOMAG - HPP 400 profiLineDE-SAW-HOM-2017-00001

Additional equipment

• Optional Packages and Add-ons: Basic Package BR 3/4/5 /Optimized panel handling/ Dynamic Package – Pressure Beam BR3/4 / Labeling Package/ Pre-stacking Table BR3 (3800 x 2200 mm)
• Additional Enhancements: 1-meter extension of program pusher travel /Automatic turning device for head cuts (3200/3800/4300 mm) /Additional collets (175 mm) /Lifting element for full package height /Fully equipped roller rails /Label printer PICA II 108 /Cadmatic warehouse control configuration /UPS (uninterruptible power supply) /MMR Professional for machine monitoring

Machine Benefits

Technical Machine Benefits

• Scoring motor: 2. 2 kw
• Cutting length: 3800 mm / cutting width (pusher travel): 3700 mm / saw blade projection: 125 mm
• Minimum panel format: 1600 x 1220 mm / workpiece length: 2000–4000 mm /workpiece width: 800–2200 mm
• Supported materials:raw chipboard (≥6 mm) mdf boards raw (≥3 mm) laminates (non-absorbent, thickness ≥0. 8 mm)
• Main saw blade: 450 x 4. 8 x 60 mm / scoring saw blade: 180 x 4. 8–5. 65 x 45 mm / collets: 6 pieces (pitch: 75 / 275 / 475 / 1075 / 1525 / 3125 mm)
• Surface bearing table: included/angular pressure device/control panel and angle ruler on the right/operator assistance led system/production feedback integration for pps systems/data connection to complex storage systems
• Performance package (up to 25% speed/acceleration increase) / stacking height extension to 2500 mm / woodstore profiline control upgrade / woodstore profiline control upgrade

Extra Information

Extra Information Independent vacuum control circuit Suction cups on panel corners Vacuum lifting for pre-separation Enhanced sensor technology
