Gracias por su visita
Esta máquina se vendió recientemente. Mire otras opciones similares o contáctenos directamente.
HOMAG - KAL 330/9/A6/LDE-WOO-HOM-2011-00001
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas para madera
- ➤ Used HOMAG KAL 330/9/A6/L - 2011 - For Sale

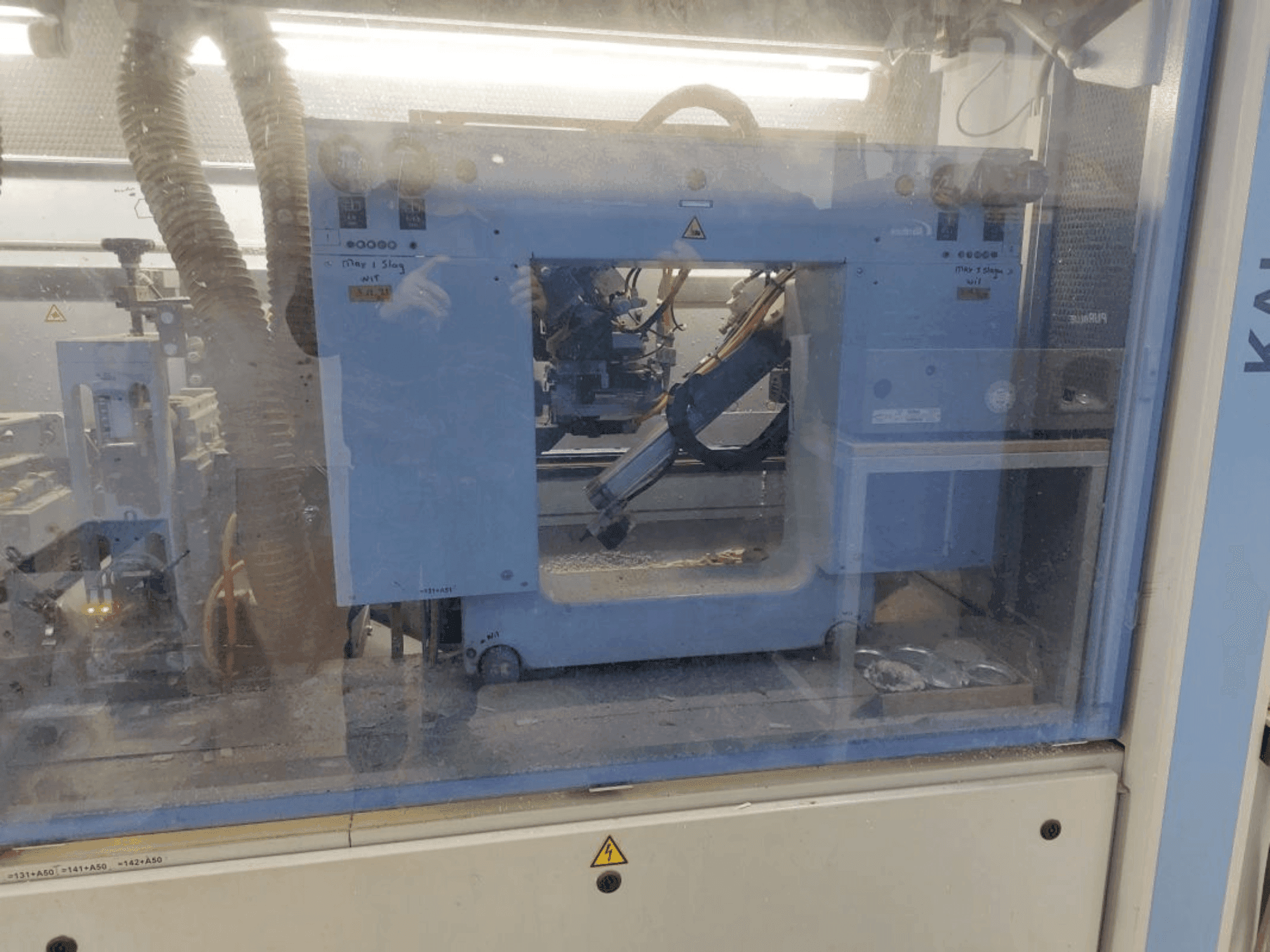

This single-sided edge banding machine machine was manufactured in 2011. A robust and reliable piece of equipment, it features a transport chain with a rubber overlay and a width of 80 mm, ensuring smooth and precise workpiece handling. The machine also boasts an electronically adjustable height setting and a feed rate adjustable up to 25 m/min for optimal performance. A great opportunity to buy this HOMAG KAL 330/9/A6/L film extrusion machine. For more information about this film extrusion machine, please reach out to us.
Resumen
- marca: HOMAG
- año: 2011
- MODELO: KAL 330/9/A6/L
- tipo de aplicación: Canteado
- Ubicación: Alemania
- tipo de máquina: Bordeadora
Información adicional
Additional equipment
- Basic machine setup
- Adjustable infeed ruler
- Pneumatically controlled infeed lock
- Workpiece transport device
- Gluing unit A20 basic
- Pressure zone C
- Free space for additional processing units
Machine Benefits
Qualitative Machine Benefits
- Magnetically braked transport chain
- Noise protection for joining and aggregate part with individual extraction
- Roll diameter max: 830 mm2
- Edge cross-section max. For strips: 900m2
- Free space for the installation of a joint trimming unit
- Gluing unit a20 basic: workpiece preheating, for heating the edge of the workpiece before glue application and to improve the gluing quality
- Quickmelt application unit: electronic temperature control with led display; glue temperature reduction automatically when work is interrupted (time freely selectable); melting capacity up to max. 12 kg / h ; glue roller drive during feed stop ; glue container lift at feed stop ; glue container clamping workpiece-operated
- Magazine 1 roll: for solid edges, strips and rolls; automatic strip separation via vacuum suction cup; 1 edge feeder; roll separating device; edge monitoring with feed stop; edge sequence control for preselecting the edge channels in any sequence. If an edge channel is empty, the next selected channel is activated (with multiple magazine)
- Pressure zone c: 1 driven pre-press roller diameter 150 mm; 6 holding rollers diameter 70 mm; pneumatic pressure adjustment; central adjustment to different edge thicknesses
- Electrical equipment: - operating voltage 400 volt, 50/60hz - mounted switch cabinet - installed in accordance with european standard en 60204 - electronic frequency converter with motor braking function - country-specific operating voltage adjustment via transformer (optional) - rcd protection circuit only permissible in conjunction with an all-current sensitive/selective rcd. If the performance of this device is not sufficient, we recommend using a residual current monitoring device on site - prescribed ambient temperature: + 10 to + 40 ° c
Technical Machine Benefits
- Transport chain with rubber pad, 80 mm wide
- Workpiece support with roller rail, extendable by approx. 800 mm
- Feed rate: 18 m/min (optional; 18-25 / 18-32 m/min)
- Working height: 950 mm
- Pneumatic connection: 6 bar
- Workpiece thickness: 12-22 mm-60 mm, 23-60 mm-100 mm
- Workpiece stock: 30 mm
- Workpiece thickness: 12-60 mm
- Edge material roll: 0. 3-3 mm2
- Edge cross-section max: for pvc: 135 mm2. For veneer: 100 mm2
Extra Information
Machine still under power
