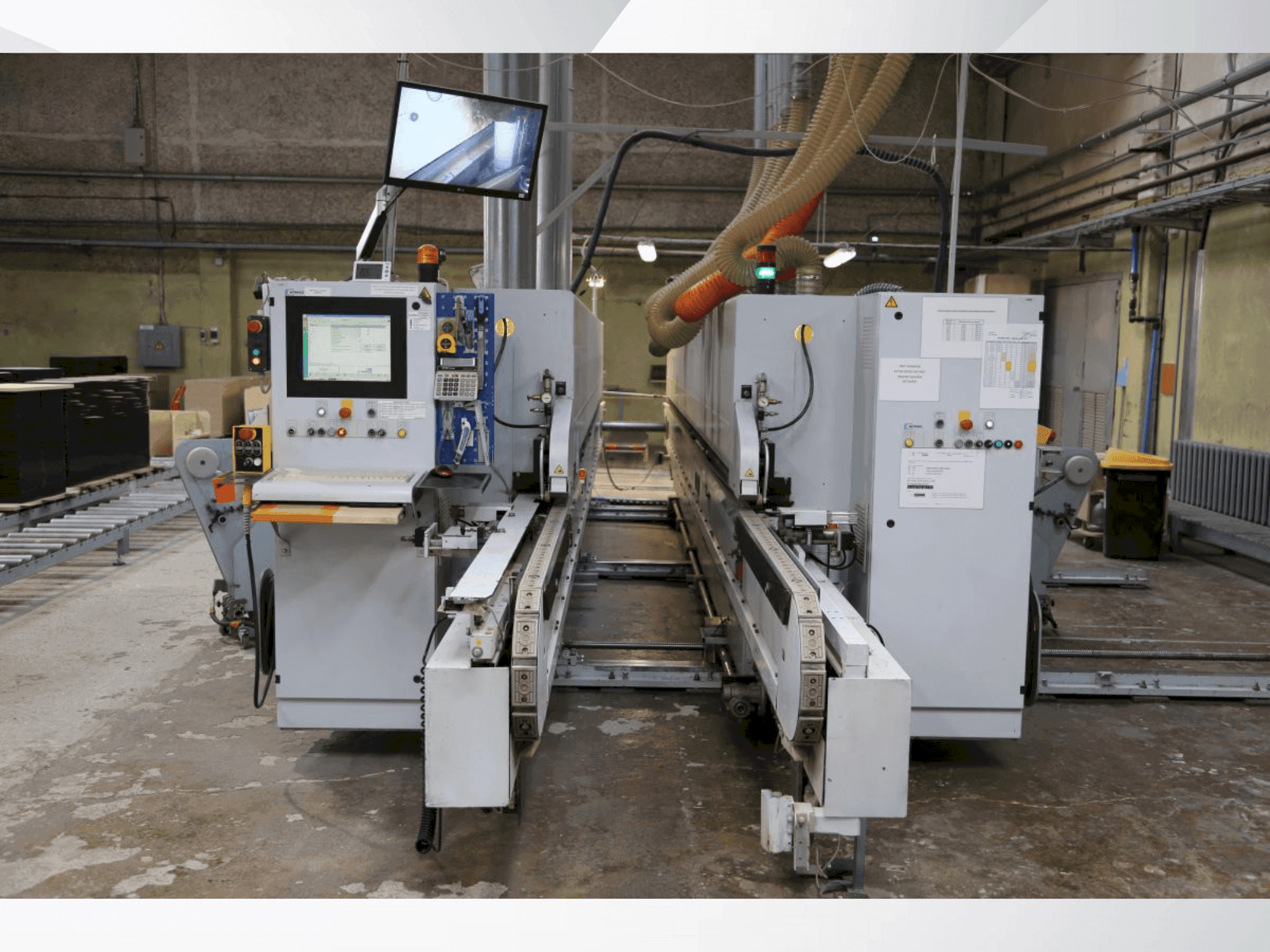

HOMAG - KFL 526 / CDE-EDG-HOM-2006-00001

Additional equipment

• Seperating agent spray device on top/bottom / Double Hogger Longitudinal/Cross: 6.6 kW with electropneumatic control / Gluing Unit A3 - 2 rolls / Profile Trimming Unit FF12 on top/bottom with motors at 12000 rpm / Finish Unit FA11 on top/bottom / Stepless stop cams with maximum cam projection of 25 mm / Standard Trimming Unit SF20 6.6 kW / Rough Trimming Unit 0.55 kW
• PUR Nordson Melting Station / Tool Set / Suction Tube

Machine Benefits

Technical Machine Benefits

• Workpiece thickness: 12 - 40 mm / minimum workpiece size (lxw): 250 x 240 mm / maximum workpiece size (lxw): 2500 x 1200 mm / maximum workpiece weight: 50 kg
• Roller material edge thickness: 0. 4 - 3 mm / maximum edge cross section (plastic): 135 mm² / maximum edge cross section (veneer): 100 mm² / maximum roller diameter: 830 mm
• Longitudinal processing speed: up to 35 m/min for thin edge up to 0. 6 mm /up to 30 m/min for thick edge up to 3 mm
• Cross processing speed: up to 30 m/min for panel sizing/ up to 20 m/min for edge processing
• Minimum workpiece gap: 500 mm
