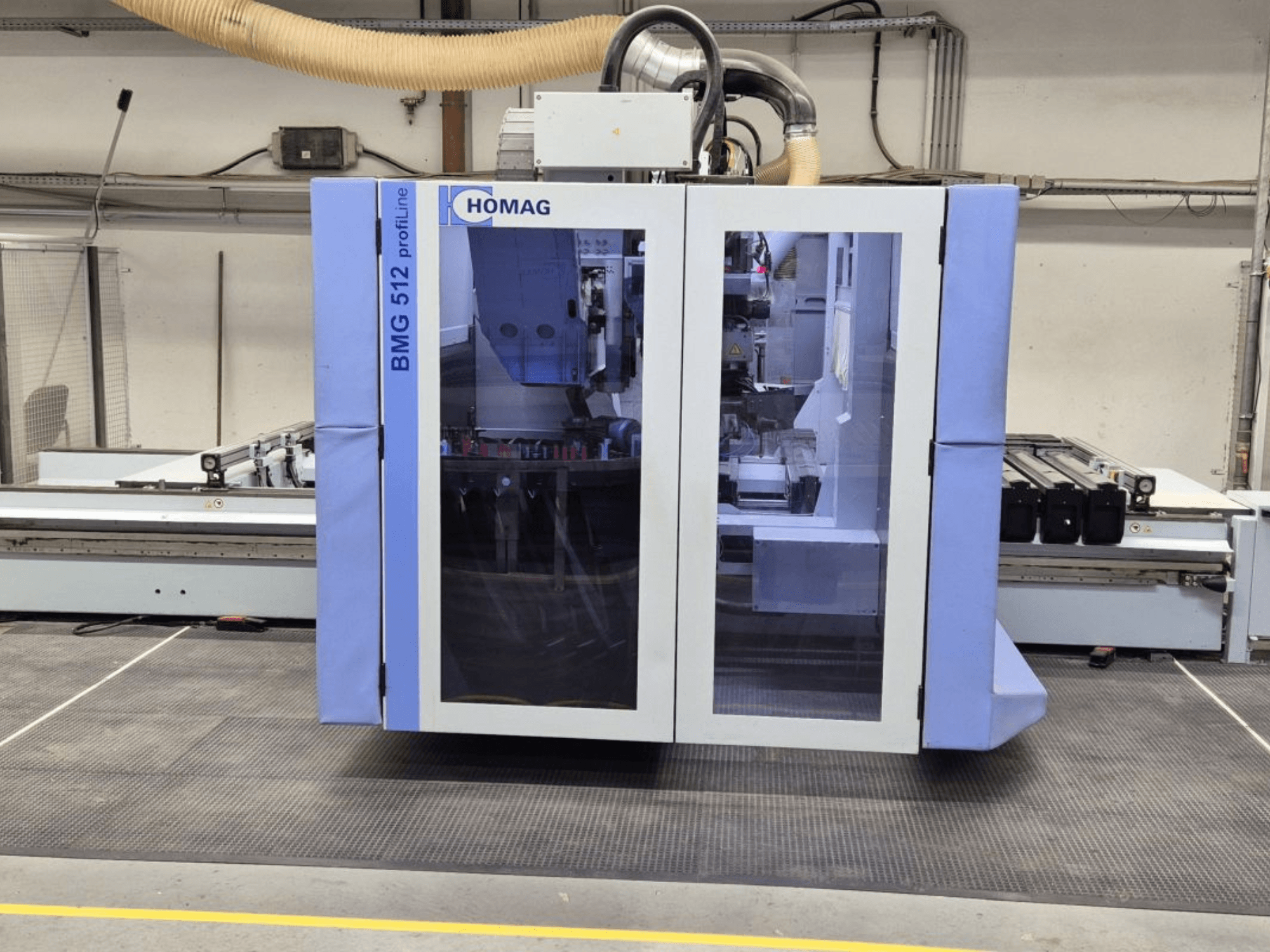

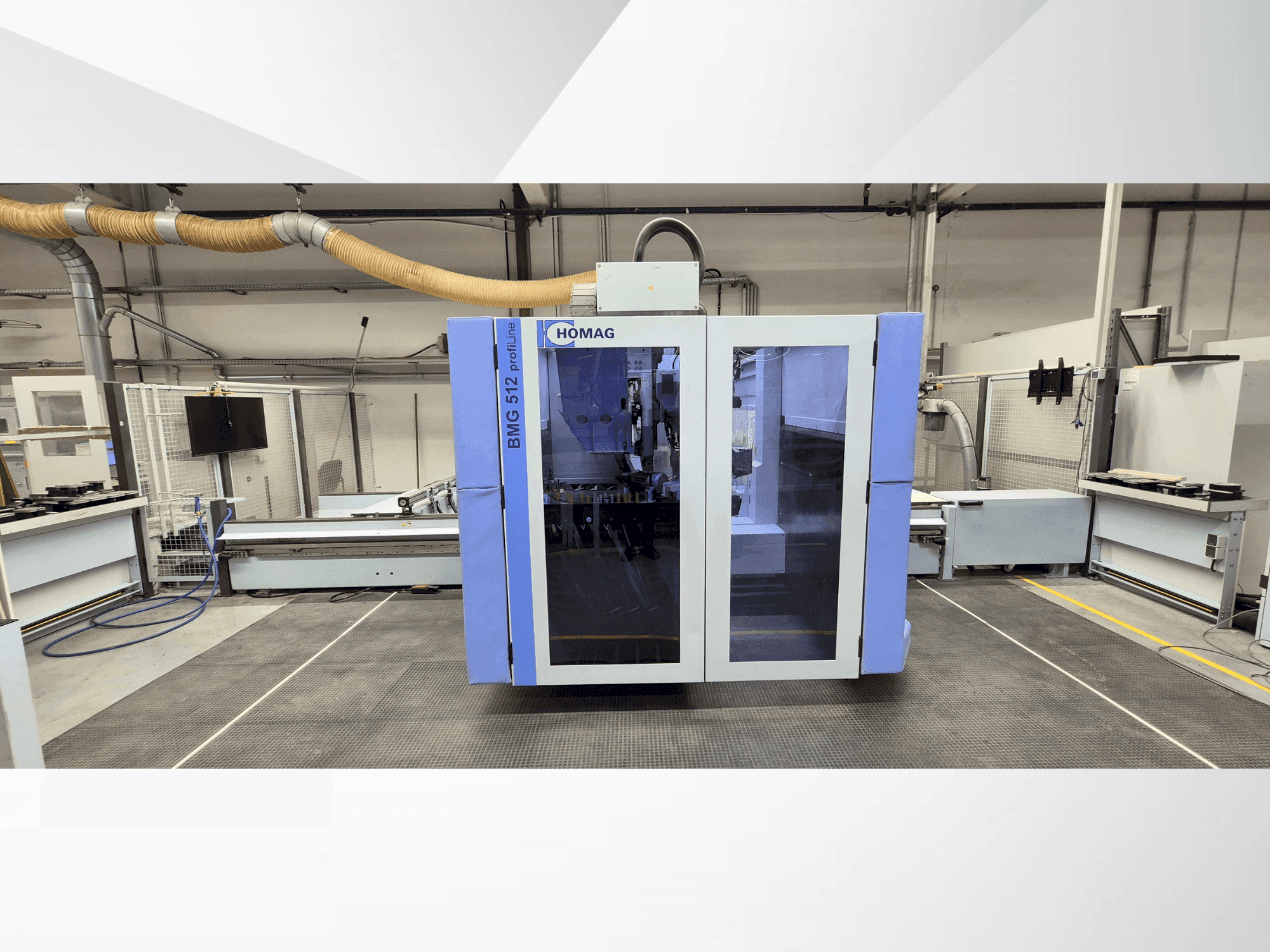

HOMAG - PROFI BMG 512/40/12/V/ADE-CNC-HOM-2016-00001

Additional information

Workpiece

• Lengths: 4000 mm for single placement / 2250 mm for pendulum placement

• Widths: 1450 mm for all units and front stop

• Maximum Workpiece Thickness: 300 mm (including clamping devices)

• Up to 60 mm with standard clamps without restrictions for units and extraction.

Table

• Automatic Console Table

• Automatically adjustable console table

• 8 consoles Y = 1500 mm

• 16 side and stop pins 140 mm, electromechanically controlled

• Dynamic space allocation for optimal utilization in pendulum operation

• Various double vacuum clamps

• Without vacuum pump; supplied via a building-side vacuum system

Tools

• 18-fold disc tool-changer

Main Drive

• Processing Spindle: 12 kW (S6 operation) / 9.5 kW (S1 operation)

• Spindle with hybrid bearings

• Frequency-controlled rotation: 0 - 24000 rpm

• Automatic feed reduction with decreasing spindle speed

Injection Unit

• POWEREDGE Gluing Unit

• Gluing unit for 360° edge gluing on butt joints

• Glue application via application roller onto edge material

• 1 pressure roller Ø 50 mm, 1 follow-up roller Ø 35 mm

• Max. edge height: 65 mm

• Edge thickness: 0.4 - 3 mm (veneer 0.4 - 2 mm / PVC 1.0 - 2 mm)

• Hot air nozzle for heating thick edges on small radii, controllable via NC

Machine Control

• POWERCONTROL PC 86 POWERTOUCH

• With 21.5" Full-HD multitouch display

• WoodWOP for graphical, dialog-oriented creation of CNC programs

• Diagnostic system WOODSCOUT

Additional Equipment

• Interface for FLEX 5 unit

• C-axis with unit interface

• Unlimited swivel range

• Coupling element for automatic tool change of FLEX 5 unit

• Drilling Head

• 21 spindles V17 / H4 / S0 / 90°

• 17 vertical drilling spindles with quick-change system

• T-shaped arrangement: 7 spindles in Y-direction / 11 spindles in X-direction

• 4 horizontal spindles with saw 0 / 90°

• Pre-cutting Station

• Moves with the processing portal (X-axis)

• Saw / Trimming Unit for Tool Changer

• Combined trimming and corner rounding unit, sensor-controlled

• Combined flush-trim / pull-knife unit

Extra Information

• Coolant tank for processing spindle

• Integrated chip conveyor, discharging to the left

Note: The technical data and descriptions are for informational purposes only and are not binding.
