Hurco - VMX 50/40TDE-MIL-HUR-2005-00002
¿Tiene más preguntas? ¡Contáctenos!
José María García
+34 601 158 008
j.garcia@gindumac.com
- GINDUMAC
- Productos
- Máquinas herramienta

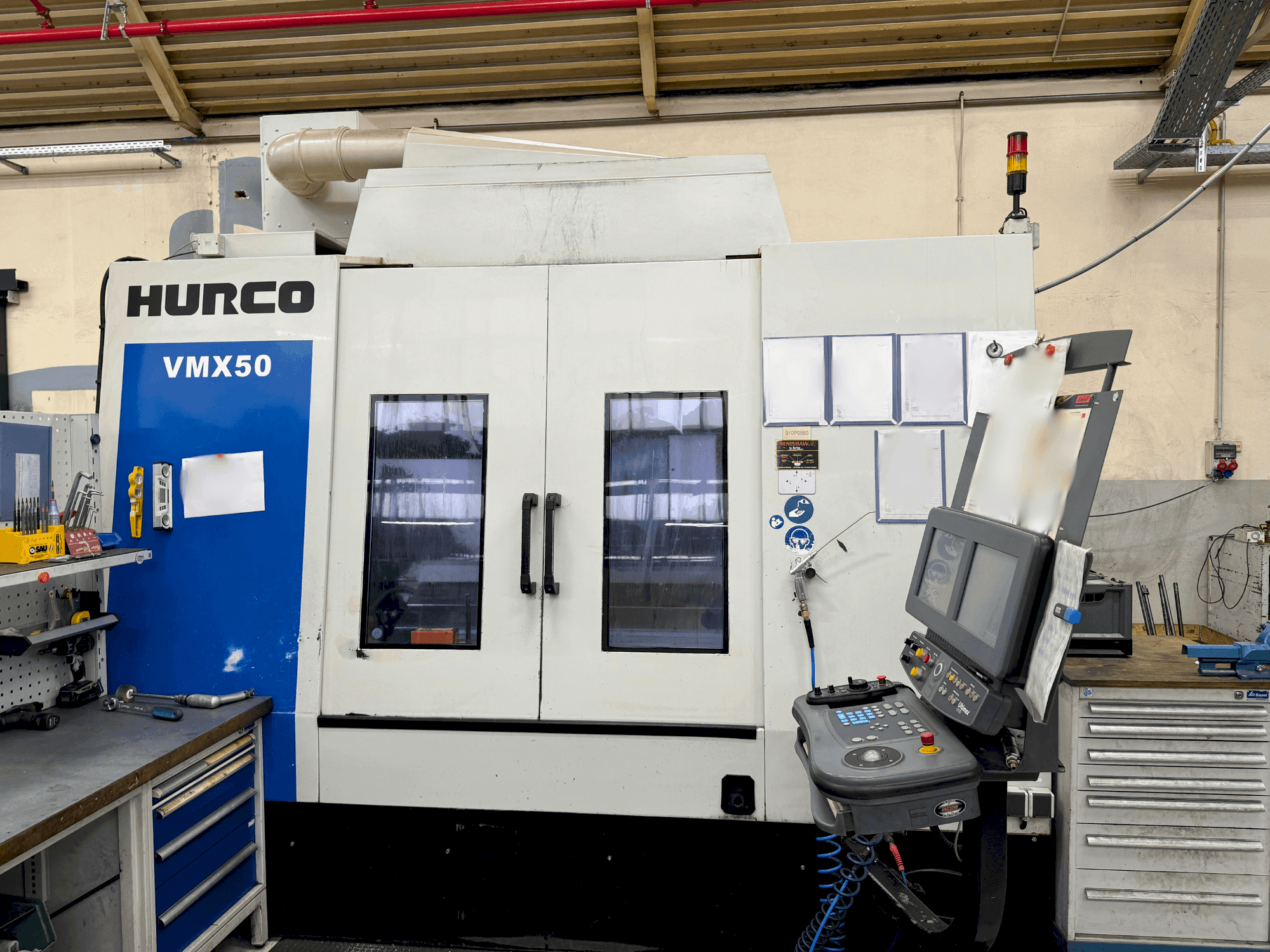

- HURCO VMX 50/40T Vertical Machining Centre
This HURCO VMX 50/40T Vertical Machining Centre was manufactured in 2005 in Taiwan. It comes with a 10,000 rpm spindle (SK40 tool taper), 3 axes (X = 1270 mm / Y = 660 mm / Z = 610 mm) and automatic tool changer with 24 slots. In addition the scope of delivery includes a chip conveyor, an oil mist separator system (ME-FI from W+W), a high-pressure cooling system for coolant supply through the spindle, an integrated hydraulic tool clamping system and the feature of workpiece position detection and tool length calibration with probe. In total it has operated 44,358 hours and is still under production. As extra option upon request and for additional charge the machine can be equipped with a KITAGAWA TT 251 Tilting NC Rotary Table for 5-axis simultaneous operations (4th axis NC rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software & 5-axis simultaneous in conjunction with the ISO code software and corresponding programming station). Contact us at any time for further details!
Resumen
- marca: Hurco
- año: 2005
- MODELO: VMX 50/40T
- horas de producción: 44358
- tipo de aplicación: Fresado
- Ubicación: Alemania
- tipo de máquina: Centro de mecanizado vertical
- Marca de unidad de control: HURCO
Información técnica - Hurco VMX 50/40T
Unidad de Control
- Marca del control: HURCO
- Modelo del control: ULTIMAX 4
Dimensiones
- Peso de la máquina: 9400 kg
Recorrido
- Número de ejes: 3
Especificación Técnica
- Velocidad del husillo: 10000 RPM
- Tamaño del cono: SK 40
- Refrigeración a través del husillo: Sí
Información adicional
Additional equipment
- [UPON REQUEST for additional charge] KITAGAWA TT 251 (4th axis NC rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software)
- Chip Conveyor // ME-FI 1000 Oil mist separator from W+W (YOM 2014)
- Coolant system
- Chip splash guard cabin
- Flushing system to support chip removal
- Coolant filtration via pump suction filter
- Signal light for machine operating status
- Machine light
- Set of machine shoes
- Removable electronic handwheel
Machine Benefits
Qualitative Machine Benefits
- High-pressure cooling system for coolant supply through the spindle (cooling lubricant type emulsion, coolant pressure 20 bar)
- Integrated hydraulic tool clamping system
- Workpiece position detection and tool length calibration with probe
Technical Machine Benefits
- [upon request for additional charge] 4th axis nc rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software
- [upon request for additional charge] 5-axis simultaneous in conjunction with the iso code software and corresponding programming station (kitagawa tt 251)
- Pocket milling with islands
- Synchronous thread cutting (thread cutting without compensating chuck)
- Face plate diameter 250 mm
- Center height 225 mm
- Spindle passage 70 mm
Extra Information
Transport dimensions: 3245x2250x2460 mm // Space required for operation: 4400x4750x2950 mm // Machine manual on CD // 2 monochrome screens (text + graphics) // 2 software units (1 x plain text dialog programming on the machine + 1 x for ISO code programming by external programming device or CAD/CAM system via RS-232 C or V 24 interface) Pentium technology, 1.6 GB hard disk, 64 MB RAM, parallel and serial data interfaces, DOS-compatible 3.5" 1.44 MB drive // System-internal self-diagnosis, DOS directory structure, software version 2.xx
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
