- ➤ Used Hyundai WIA KF 5600 For Sale | gindumac.com

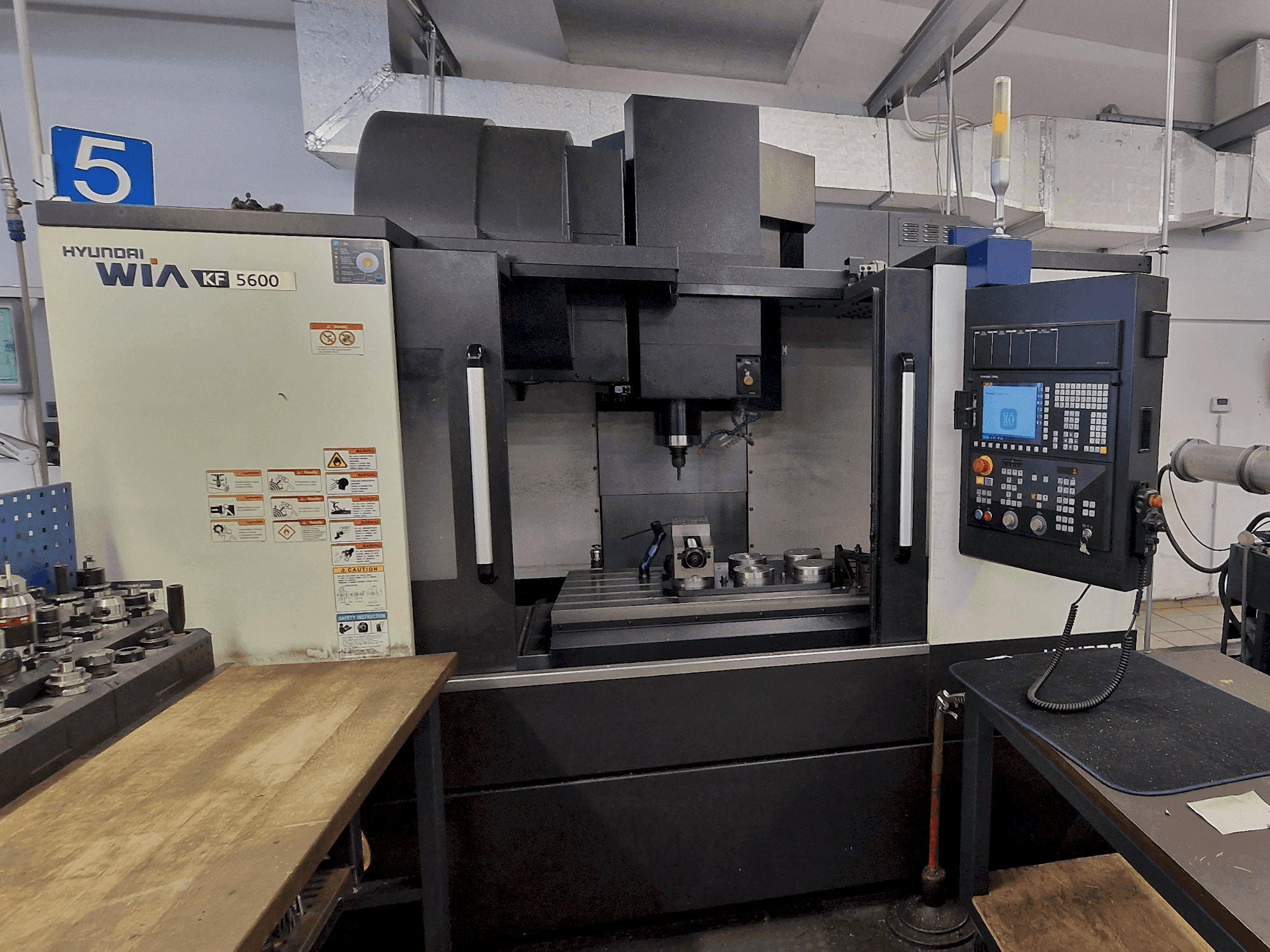

This 3-axis Hyundai WIA KF 5600 vertical machining center was manufactured in 2018. It features a 30-position automatic tool changer, a high-speed spindle at 15,000 rpm with BBT40 taper, and advanced Siemens software options including 3D simulation and real-time machining recording. Ideal for precision machining with its equipped glass rods for accurate measurements. Consider the opportunity to buy this Hyundai WIA KF 5600 vertical machining center. Contact us for more information about this machine.
Resumen
- marca: Hyundai
- año: 2018
- MODELO: WIA KF 5600
- tipo de aplicación: Fresado
- Ubicación: Hungría
- tipo de máquina: Centro de mecanizado vertical
Información técnica - Hyundai WIA KF 5600
Recorrido
- Número de ejes: 3
Especificación Técnica
- Velocidad del husillo: 15000 RPM
Información adicional
Additional Equipment
Chip conveyor type: Chain / hinge type
Chip discharge direction: Left side, hinge type
Glass rods (optical measuring system): X / Y / Z axes
Chip cabinet: Standard version
Air blow: Cutting Air Blow
Filter type: Cyclone filter
External M-code outputs: 4 pairs
Axis preparation: Air and coolant passage through the spindle, controlled via M-code
4th axis setup (PLC and drive card)
Machine Benefits
Technical machine benefits:
Workpiece measurement: BLUM TC50 (infrared system)
Tool cooling: 30 bar
Tool magazine: 30-position automatic tool changer (ATC)
Tool measurement: ZX-Speed (infrared system)
Extra Information
Operating hours:
Servo voltage operating time: 3398 hours
Drive module fan operating time: 1573 hours
The SCHUNK zero-point clamping system and the chuck shown in the photos are not included in the offer. The offer applies only to the components listed.
*Pueden existir diferencias entre los datos mostrados y los reales, esto debe ser confirmado por el representante de ventas.
