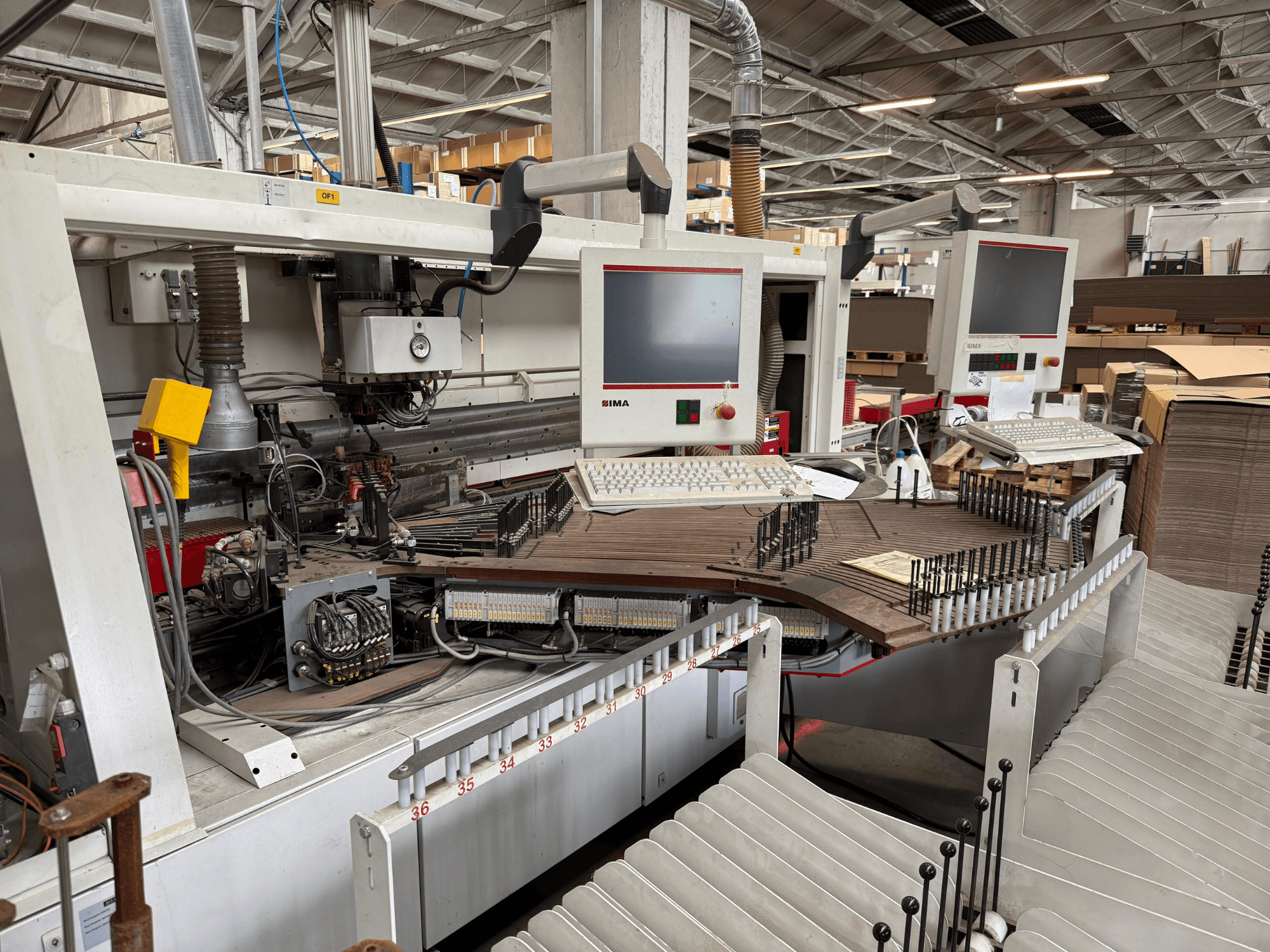

IMA - NOVIMAT I /G80/390/R3DE-EDG-IMA-2013-00001

Additional information

• Motor Power: 2 x 45 kW, 150 Hz

• Motor Speed: 9000 rpm

• Power Supply: 230 V

• Heating Power: 6 x 500 watts

• Adjustment Range: Vertical approx. 17 mm, Horizontal approx. 30 mm

• Stroke: Max. 8 mm

• Roll Diameter: Max. 850 mm

• Edge Height: 14 – 65 mm

• Workpiece Projection: Min. 30 mm + edge thickness, Max. 80 mm including edge thickness

• Workpiece Length: Min. 130 mm

• Workpiece Gap: Min. 300 mm

• Workpiece Distance: Min. 990 mm

• Workpiece Thickness: Min. 8 mm, Min. 12 mm with tracing wheel, Max. 80 mm

• Single Tracing Workpiece Projection: Min. 30 mm

• Double Tracing Workpiece Projection: Min. 38 mm for max. 4 profiles, Max. 50 mm

• Cutter Head Diameter: 125 mm

• Motor Shaft: 30 x 68 mm diameter

• Internal Thread: M16, Depending on motor, left or right

• Cutting Cross-section Motor Power: 0.20 kW, 200 Hz 400 V, 12000 rpm for max. 195 mm², Option: 0.66 kW, Extension to max. 1100 mm²

• Tool Diameter: 160 mm / 48 teeth

• Swivel Range: 0 and 25 degrees

• Workpiece Speed: Max. 30 m/min for an edge cross-section of 3 x 45 mm

• Edge Overhang: Top edge, max. 3 mm, Bottom edge, max. 2 mm for straight edges

• Edge Material: Edge, max. 4 mm for wood and plastic; Aluminum, max. 3 mm
