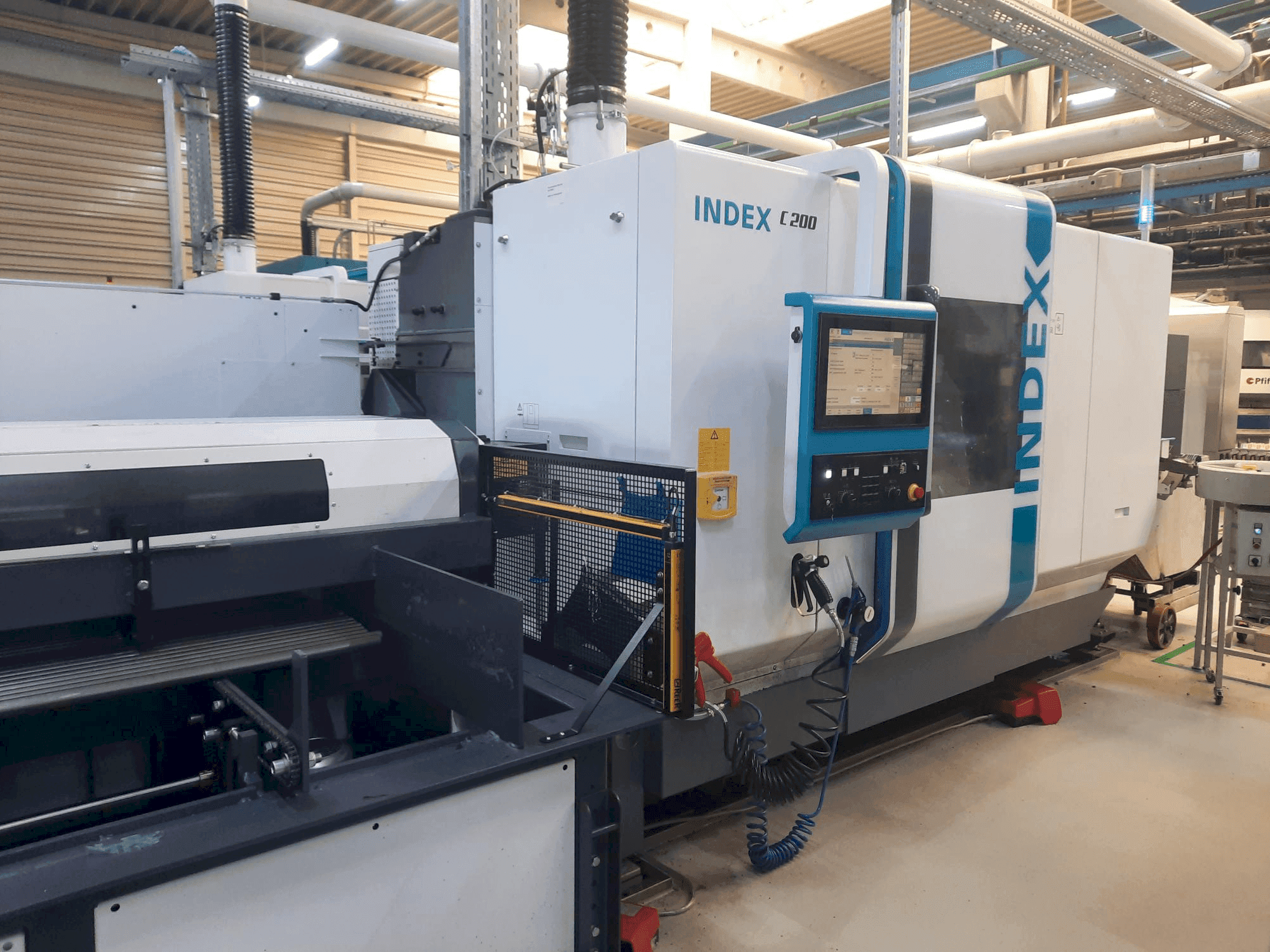

Index - C200DE-TUR-IND-2023-00001

Additional equipment

• Software options: OPC UA for master computer connection (max. 200 variables). ChipMaster cycle for chip breakage control.
• Environmental data: Noise level: 73.8 dB(A)

Machine Benefits

Technical Machine Benefits

• Control system: based on sinumerik 840d solutionline (sl) with sinamics s120 drives. 18. 5" tft color display with pct-touch (ip65). Siemens operate user interface in german.
• Interfaces: 4x usb 2. 0 (2 on the control panel, 2 in the control panel). Network-capable for nc data transfer (logical drives).
• Safety: siemens safety-integrated (profisafe).
• Turret mechanics: hydraulic locking, ac motor with face gearing. Drive power per tool carrier: 10 kw (25 % ed), max. 8,000 rpm.
• Tool holder: cylindrical shank d25x48 (din69880) with w-slots for higher repeat accuracy. Driven tools possible in every station (only rotating in working position).
• Cooling unit: 13 kw for hydraulics, spindles and control cabinet. Connection for cooling water (20°c ±2°c, 30 l/min, glycol 25 %).
• Chip conveyor: hinged belt conveyor (made by knoll) with 180-liter container, discharge height 840 mm. Cooling lubricant system: 750-liter container, 8-bar/20-80-bar pumps.
• Bar loader interface: unimag4-compatible (external loaders require specific cover). Maximum bar length: 1,035 mm (short bar operation). Gantry pick-up device: pneumatic gripper (Ø 10-90 mm, max. 3. 5 kg). Conveyor belt with switch for finished parts/remaining parts.

Extra Information

Control Unit Operating voltage: 400V Control voltage: 24V DC Frequency: 50Hz Rated power: 54kW Connected load: 65kVA Rated current: 94A Max. back-up fuse: 100A Main Drive Main spindle and counter-spindle Spindle head mounting: OD 140mm, ID 85mm Front bearing diameter: 110mm Torque max. (100%/40%): 125/170 Nm Clamping pressure min./max.: 8/80 bar Piston area pressure: 57cm² Piston area tension: 57cm² Compressive force max.: 45600 N Tensile force max.: 45600 N C-axis: Drive: Hollow shaft motor of the spindle; angle measuring system directly on the spindle Position spread (VDI/DGQ 3441): Psmax = 0.01 degrees Turret Tool carrier 1 X-axis working path: 110mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Z-axis working path: 320mm Z-axis rapid traverse: 50m/min Z-axis acceleration: 9m/s² Z-axis feed force: 5000N Y-axis working path: 100mm Y-axis rapid traverse: 15m/min Y-axis acceleration: 9m/s² Y-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48 Tool carrier 2 X-axis working path: 110mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Z-axis working path: 550mm Z-axis rapid traverse: 50m/min Z-axis acceleration: 9m/s² Z-axis feed force: 5000N Y-axis working path: 100mm Y-axis rapid traverse: 15m/min Y-axis acceleration: 9m/s² Y-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48 Tool carrier 3 X-axis working path: 180mm X-axis rapid traverse: 30m/min X-axis acceleration: 9m/s² X-axis feed force: 5000N Stations: 14 with cylindrical shank holder D25x48
