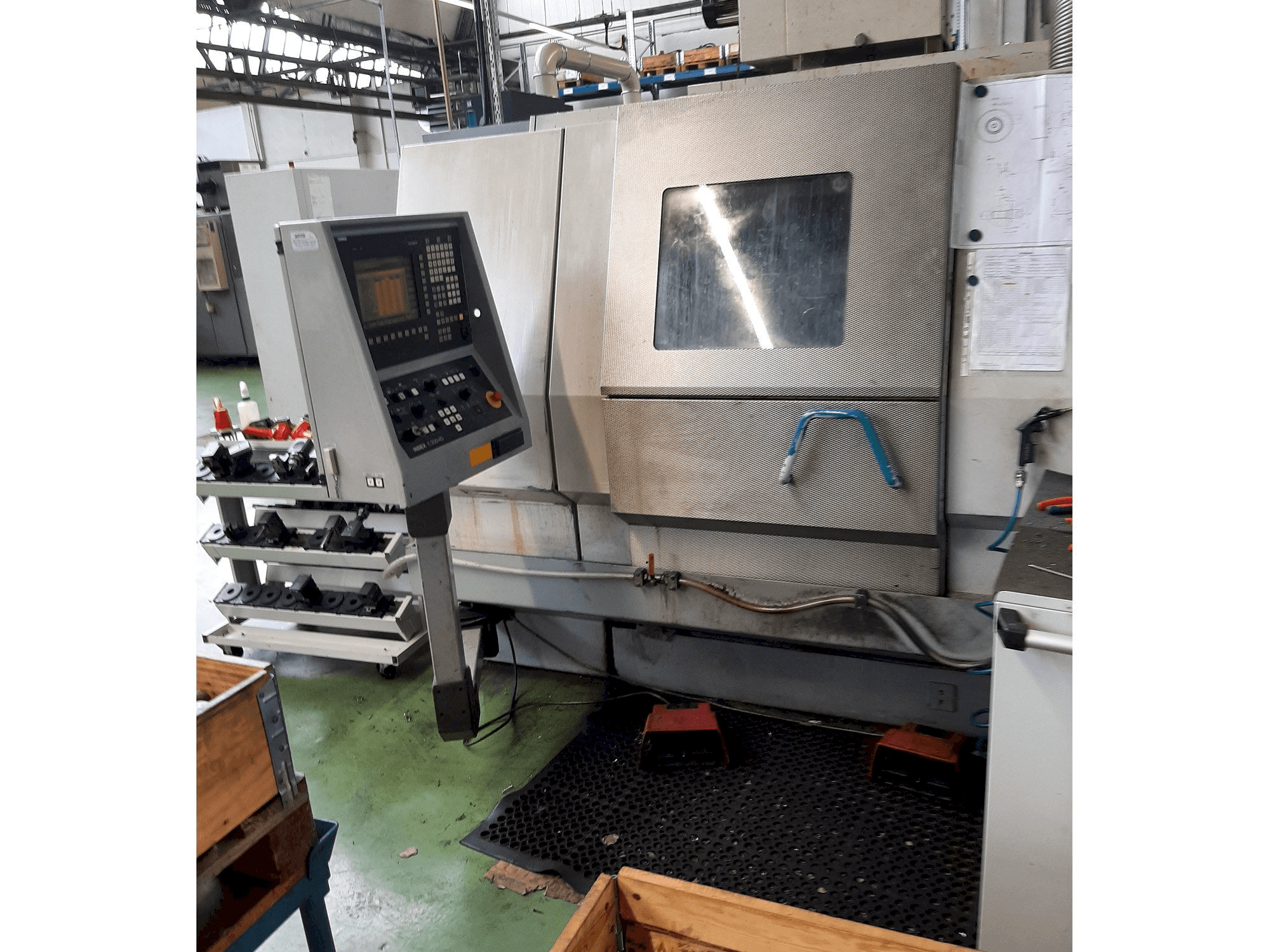

Index - G200DE-TUR-IND-2002-00004

Additional equipment

• Bar feeder is not included in the scope of delivery
• The scope of delivery includes the machine tool together with chip conveyor, high-pressure coolant system, filter system (fleece) and parts conveyor.
• The mounted tool holders remain in place

Machine Benefits

Qualitative Machine Benefits

• Counter spindle working stroke 445 mm; rapid traverse speed 22. 5 m/min
• Slide driven in z-direction via ac motor and ball screw d=32 mm, axis drive secured by overload clutch secured.
• In working position the slide is by the ac motor against the stop
• Measuring system in z-axis glass scale
• Power at the counter spindle: power at 100/40 % ed 13/22 kw; torque 61/105 nm
• Cross slide 1 - x/z, with internal coolant supply and shut-off valve
• Shut-off valve, revolving via ac motor, ball screws d = 32 mm,
• Axis drives secured by overload overload clutches, weight compensation in x-axis
• Measuring system x-axis glass scale z-axis rod encoder
• Turret head with 14 stations on cross- slide 1; tool mounting holes for cylinder shank din 69880 - 25x48 mm, positioned by face gear, hydraulically locked

Technical Machine Benefits

• Axis x/z working stroke 120 / 400 mm; working stroke 105 / 400 mm
• Cabinet mass 440 kg
• Spindle head admission ad 140 mm, id 85 mm
• Material passage max. Mm 60; front bearing diameter 100 mm; adjustable three-phase drive
• Hollow shaft motor: torque nm 95/140
• Main spindle alignment and switching device d42/d60/d65, graduation 2. 5 degrees via indexing disc
• Hollow clamping cylinder d60/20 for collet and clamping on the main spindle, hydraulically operated, including end of clamping stroke monitoring
• Tensile- compressive force ( 57 cm2 ) max 45 kn
• 1-clamping-pressure device for clamping cylind- on the main spindle, adjustment range 10 to 80 bar, set to the adjusted to the maximum permissible clamping operating force of the clamping medium or pressure tube
• Counter spindle d60; spindle head admission ad 140 mm, id 85 mm
